Description

Product Name:

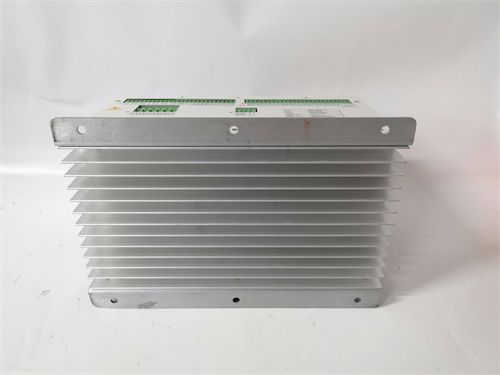

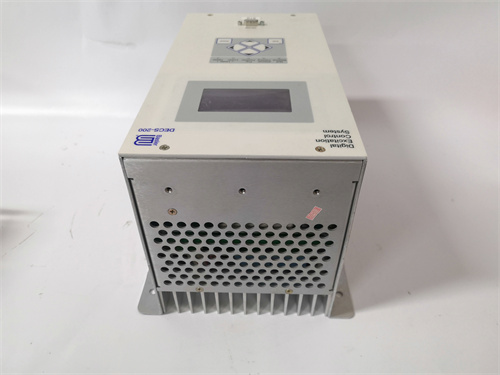

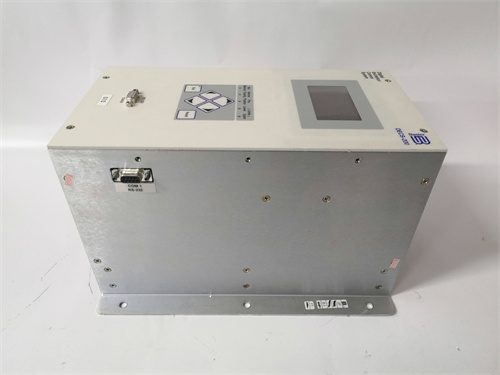

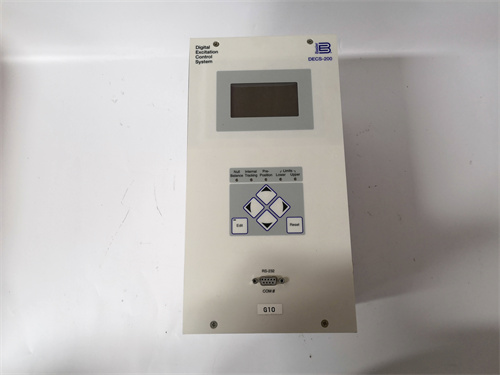

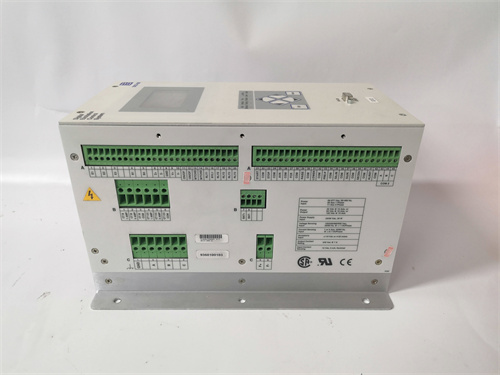

BASLER ELECTRIC DECS-200-2L

Product Description:

The BASLER ELECTRIC DECS-200-2L is a digital excitation control system designed for use in generator control applications. It is primarily used to manage the excitation of alternators and synchronous generators, providing precise and reliable voltage regulation. The DECS-200-2L controller is specifically designed for applications requiring high-performance control of generator voltage, including power plants, industrial facilities, and large-scale generators.

This controller integrates advanced features like digital signal processing, user-friendly configuration, and diagnostics tools to ensure optimal performance of the generator. It is compatible with a variety of alternators, ensuring reliable performance across various industrial and commercial applications. The DECS-200-2L is suitable for both new installations and retrofits of older systems.

Product Parameters and Specifications:

• Input Power Supply:
  • 24 VDC (nominal) input voltage
  • Operating voltage range: 18 VDC to 36 VDC
• Output Voltage Regulation:
  • Precision voltage regulation with a typical stability of ±0.25%
• Control Method:
  • Digital Excitation Control
• Exciter Field Output:
  • 3-phase output for exciter control
• Control Features:
  • Automatic voltage regulation (AVR)
  • Generator over-voltage and under-voltage protection
  • Generator overcurrent protection
  • Field flash and startup capabilities
  • Synchronization and load sharing for multi-generator applications
  • Adjustable voltage regulation settings (manual or automatic)
• Protection Features:
  • Over-voltage, under-voltage, and short-circuit protection
  • Field loss detection
  • Over-temperature protection
• Communication Ports:
  • Modbus RTU via RS485 for remote monitoring and control
  • Ethernet (optional, depending on model)
• Digital Inputs and Outputs:
  • Multiple configurable digital inputs (for synchronization, external fault detection, etc.)
  • Multiple digital outputs for signaling, alarms, or control of auxiliary devices
• Environment:
  • Operating temperature: -40°C to +70°C
  • Relative humidity: 5% to 95% (non-condensing)
  • Vibration and shock resistance to meet industrial standards
• Mounting Type: Panel-mount or DIN-rail mount options available
• Size:
  • Approximate dimensions: 5.4 in. x 7.1 in. x 2.0 in. (137 mm x 180 mm x 51 mm)
• Weight:
  • Approx. 1.2 kg (2.6 lbs)

Product Use:

The BASLER ELECTRIC DECS-200-2L controller is used in a wide range of applications where precise voltage regulation and generator performance monitoring are critical. Key uses include:

• Power Generation: It is often found in power plants, industrial power generation systems, and large-scale generators, ensuring stable voltage levels during generation and load variations.
• Backup Power Systems: The DECS-200-2L is ideal for backup power applications, providing reliable voltage control for critical facilities and infrastructures, such as hospitals, data centers, and telecommunications centers.
• Energy Management: In multi-generator systems, the DECS-200-2L helps with load sharing, ensuring efficient operation of the energy grid or backup power systems.
• Marine and Military Applications: The DECS-200-2L is also suitable for marine, offshore, and military applications where robust performance and precise control are required in demanding environments.
• Retrofit and Replacement: It is commonly used for upgrading and replacing aging excitation control systems in existing generator installations, improving performance and reliability.
