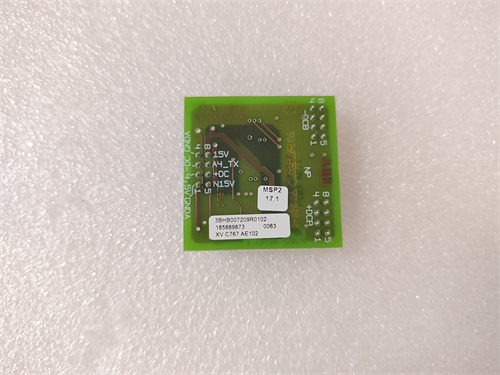

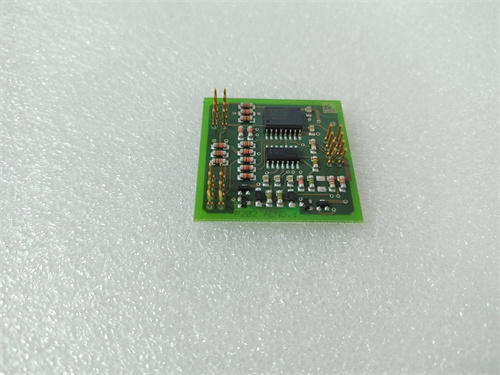

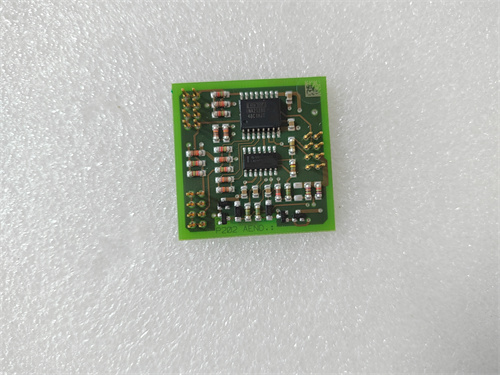

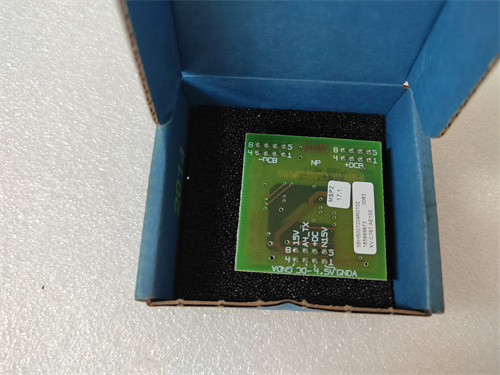

ABB+XVC767AE102 3BHB007209R0102

Description

The Ethernet /IP communication module is part of the ControlLogix family of programmable automation controllers.

Product Name:

ABB+XVC767AE102 3BHB007209R0102 module

Product Description:

It is an industrial communication module designed to provide communication between ControlLogix plc and other devices over an Ethernet /IP network. It provides a reliable and high-speed communication interface for industrial automation.

Product parameters:

– Communication interface: Ethernet /IP
– Supported networks :ControlNet, EtherNet/IP
– Communication speed: 10/100 Mbit/s
– Maximum number of connections: 32 per adapter
– Operating temperature :0 ~ 60 degrees
– Input voltage: 5.1V DC
– Power consumption :800ma @ 5.1v DC

Technical requirements:

– Compact and durable design for industrial environments
– Dual-port network backup
– Supports linear and ring (DLR) topologies
– Built-in network troubleshooting diagnostics
– Compatible with ControlLogix controllers

Product use:

The module is used in a variety of industrial automation applications that require seamless communication between PLCS and other devices via Ethernet /IP networks. It is widely used in manufacturing, technology and other industrial environments to ensure the exchange, management and monitoring of data between the different components of an automated system.
