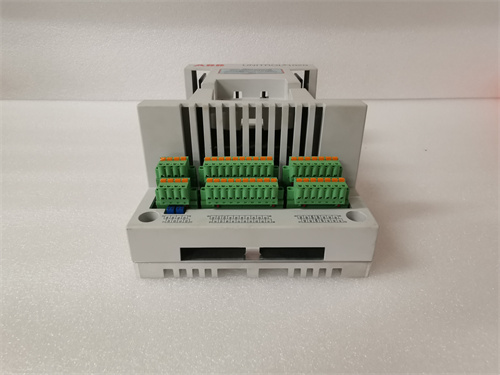

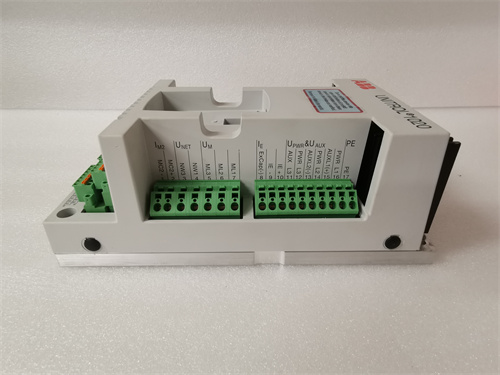

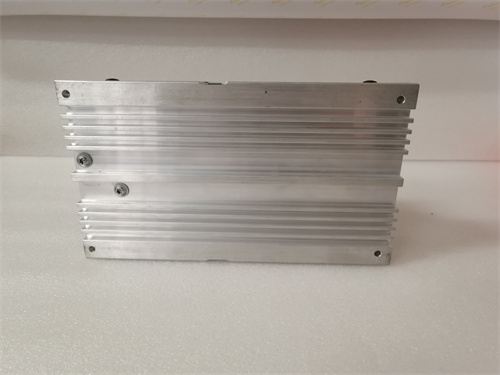

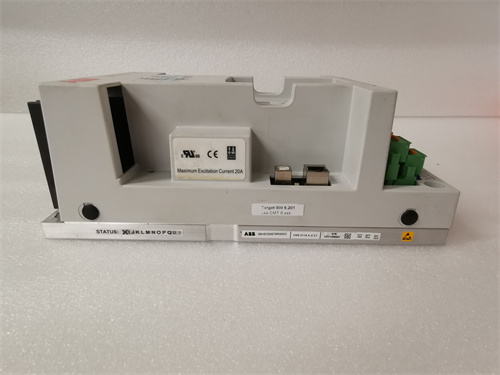

ABB+UNITROL 1020 UNS0119A-Z,V1 3BHE030579R0003

Description

The ABB Unitrol 1020 UNS0119A-Z, V1 (3BHE030579R0003) module is a part of the Unitrol series, which is used primarily for power system applications, such as in power electronics and automation systems.

Product Name:

ABB Unitrol 1020 UNS0119A-Z, V1 (3BHE030579R0003) Module

Product Description:

The ABB Unitrol 1020 is a versatile control and monitoring module designed for advanced regulation and control in electrical power systems. It’s a part of the Unitrol series of products tailored for applications requiring high reliability and precise performance in energy management, such as synchronous motor and generator control.

Product Parameters:

• Input Voltage: Typically operates at low voltage, ensuring compatibility with a range of control systems.
• Control Method: Digital control for increased precision and performance.
• Interface: User-friendly interface with support for various communication protocols.
• Protection Features: Over-voltage, over-current, thermal, and other critical protection mechanisms to ensure device reliability.
• Temperature Range: Designed to operate within industrial temperature ranges (typically -20°C to +60°C).
• Mounting Type: Standardized mounting for easy installation in electrical cabinets.

Specifications:

• Weight: Depends on specific configurations.
• Dimensions: Varies based on the housing type; typically designed for 19-inch racks.
• Power Consumption: Specified based on the operational mode.
• Communication Protocols: Compatibility with common fieldbus protocols like MODBUS, Profibus, etc.
• Programmability: Can be configured and programmed for specific applications via software tools provided by ABB.

Product Use:

The ABB Unitrol 1020 module is utilized in the following applications:

• Synchronous Generator Control: Used in power plants for the regulation and stability of power generation.
• Excitation Control Systems: Provides control for excitation systems in generators, enhancing performance and reliability.
• Automation Systems: Integrates with industrial automation systems for improved monitoring and control.
• Electrical Networks: Used in substations for power quality management and network stability.

Typical Applications:

• Power generation facilities
• Renewable energy installations (wind, solar)
• Industrial motor control systems
• Electrical grid management
