ABB+UAC326AE

Description

Product Name:

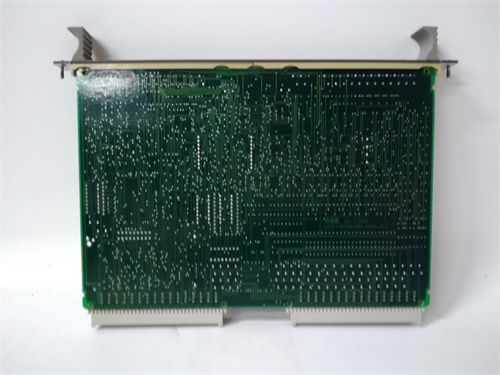

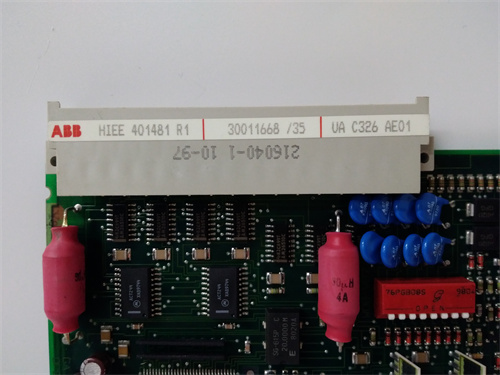

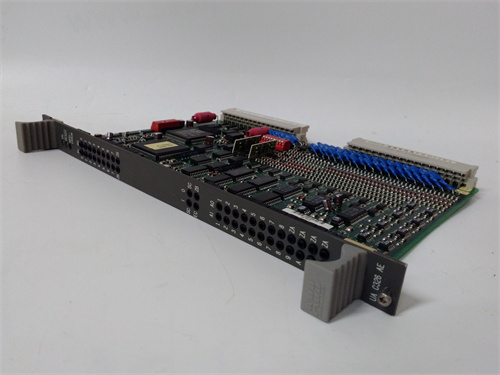

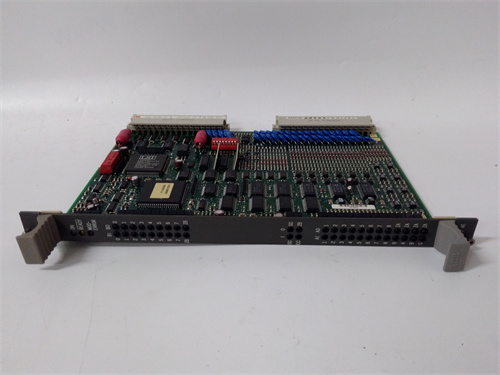

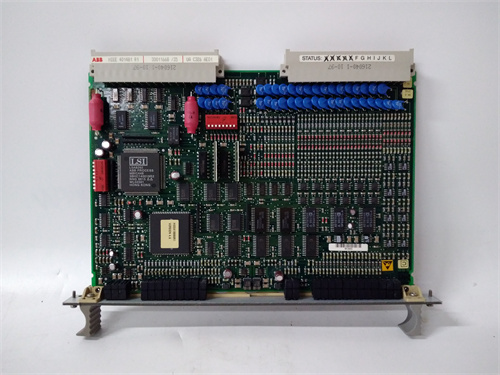

ABB UAC326AE

Product Description:

The ABB UAC326AE is a module designed for Universal I/O Control in industrial automation applications. It is part of ABB’s extensive range of automation and control modules, which are typically used in programmable logic controllers (PLCs) and distributed control systems (DCS). The UAC326AE is engineered to interface with a wide variety of field devices and sensors, providing users with the ability to manage inputs and outputs in a flexible and scalable manner.

Product Parameters & Specifications:

• Module Type: Universal I/O (Input/Output)
• Input Types:
  • Digital Inputs
  • Analog Inputs (e.g., voltage, current, RTD, thermocouple)
  • Counter Inputs
• Output Types:
  • Digital Outputs (Relay or Transistor)
  • Analog Outputs (e.g., voltage, current)
• Voltage Range: Typically 24 V DC (but can vary depending on configuration)
• Current: Can handle different load currents depending on the output type (digital or analog)
• Signal Types:
  • Standard 4-20 mA, 0-10 V for analog
  • Binary (0/1) for digital
• Interface:
  • Common industrial communication protocols (e.g., Modbus, Profibus, Ethernet/IP, or others depending on configuration)
• Communication Protocol: Typically supports serial and Ethernet-based protocols
• Temperature Range: Typically -20°C to 60°C (may vary based on specific configuration)
• Mounting: DIN rail mountable or panel-mounted
• Power Supply: 24 V DC (for the module itself)
• Input/Output Channels: Available with different numbers of channels depending on the version of the module (e.g., 8-channel, 16-channel configurations)
• Safety Compliance: UL, CE certified (confirm with exact model specifications)

Product Use:

The ABB UAC326AE module is ideal for use in various industrial automation settings, including:

• PLC and DCS systems: Provides flexible I/O solutions for system integration.
• Process control: Measurement and control of analog or digital signals, useful in industries like manufacturing, chemicals, and energy.
• Data acquisition: Enables connection to a wide range of field instruments and sensors for industrial monitoring.
• Motion control systems: Can interface with position sensors, encoders, and actuators in motion control applications.
• Remote I/O systems: Used in decentralized automation systems for expanding the I/O capability of a controller.

It is commonly used in industries like:

• Oil and gas
• Chemical processing
• Power generation
• Manufacturing automation
• Building automation systems

The UAC326AE module’s versatility in handling multiple types of signals and communication protocols makes it a key component for modern industrial automation and control systems, providing reliability and flexibility for process management and automation.
