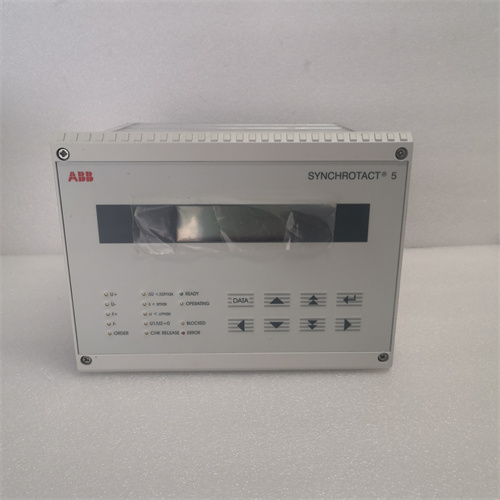

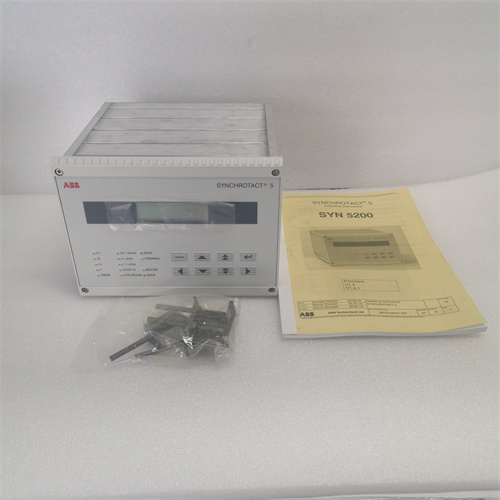

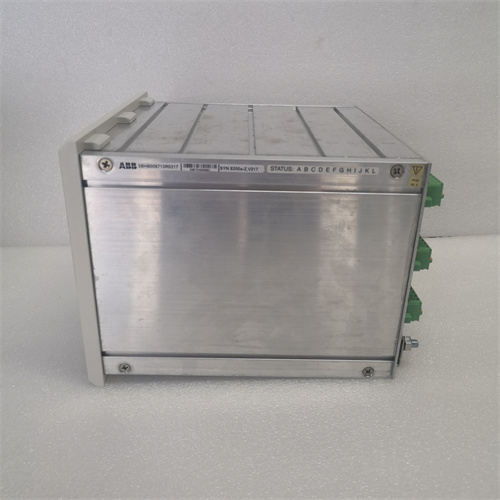

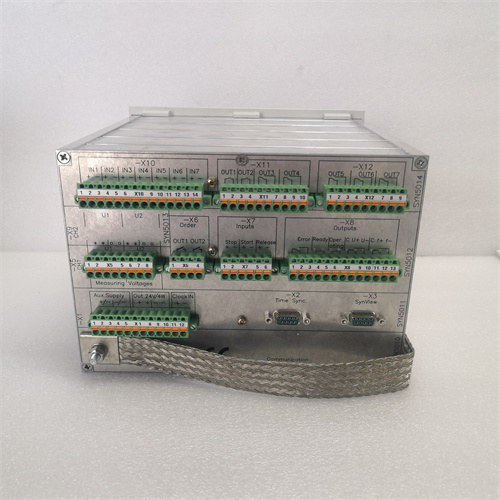

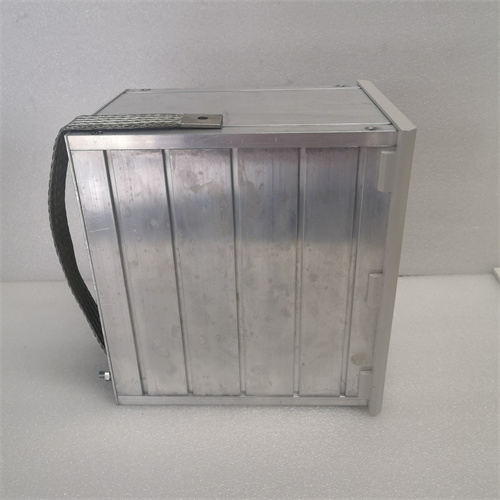

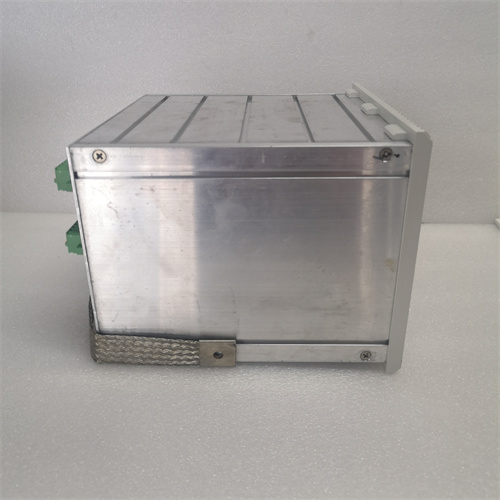

ABB+SYNCHROTACT5 3BHB006713R0217

Description

The ABB SYNCHROTACT 5 3BHB006713R0217 is a digital synchronizing controller designed for use in power generation and distribution systems. It ensures precise synchronization of generators and enables safe and efficient parallel operation of multiple generating units.

Product Name:

ABB SYNCHROTACT 5 3BHB006713R0217

Product Description:

The SYNCHROTACT 5 is a state-of-the-art digital synchronizing controller that provides accurate synchronization of generators and facilitates the parallel operation of power generating units.

Product Parameters:

1. Voltage and frequency measurement
2. Built-in protection and monitoring functions
3. Synchronization algorithms for precise matching of generator parameters
4. User-friendly interface for easy operation

Specifications:

– Input Voltage: 100-240V AC
– Frequency Range: 50/60 Hz
– Communication Interfaces: RS-485, Ethernet
– Operating Temperature: -10°C to 50°C
– Mounting: DIN rail or panel mount

Product Use:

The SYNCHROTACT 5 controller is used in power plants, substations, and industrial facilities to synchronize and parallel generators, ensuring efficient power generation and distribution. It helps to maintain grid stability and allows for seamless transfer of loads between generating units.
