ABB+SC610

Description

Product Name:

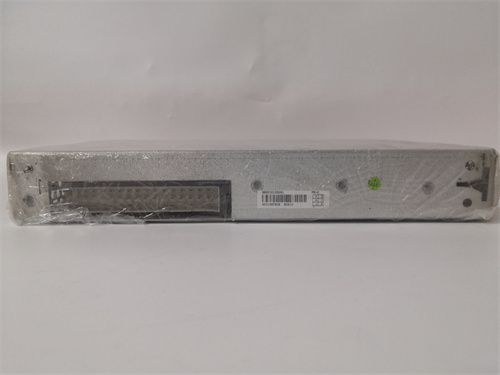

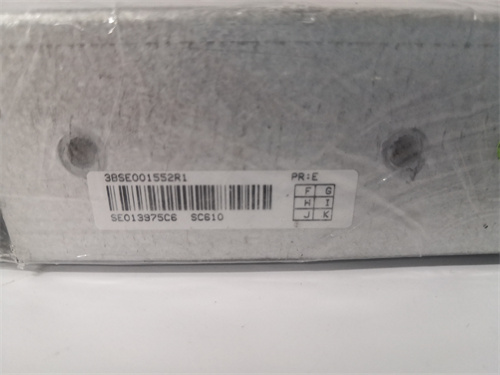

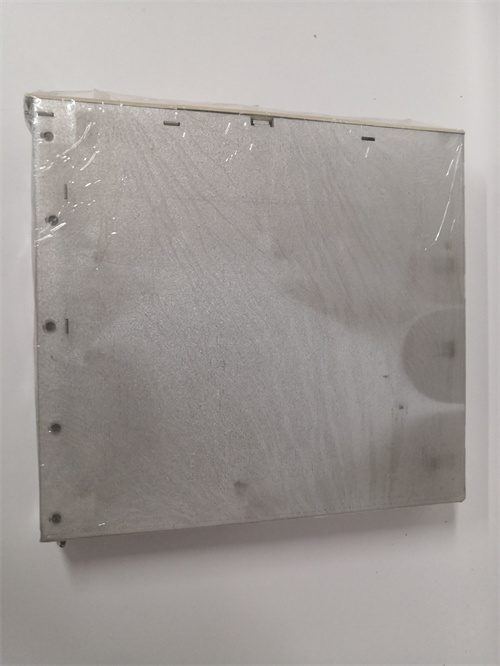

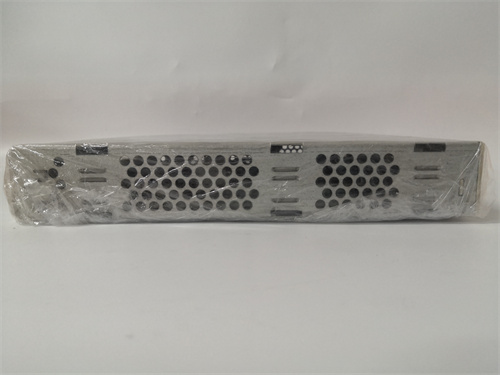

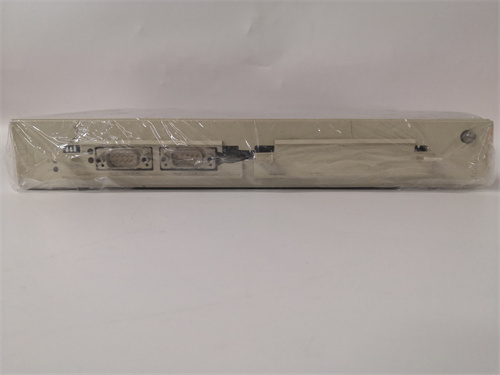

ABB Ability System 800xA SC610 signal conditioning module

Product Description:

The module is used to adjust and scale analog signals from various sensors and transmitters used in industrial process control applications. These signals can represent various process parameters, such as:
temperature
stress
flow
level
Vibration
Signal conditioning is critical because the sensor output is not directly compatible with DCS due to:

Different voltage or current ranges
Nonlinear sensor response
The presence of noise or interference
Product parameters and specifications:

Support input signal type: It can accept a specific voltage or current range (e.g., 0-10 VDC, 4-20 mA).
Output signal type: Voltage or current range provided after regulation (e.g., standardized 0-10 VDC output).
Gain and offset adjustment: Configurable to adjust signal amplification and baseline level.
Filter characteristics: The type of filter used to remove noise (such as low-pass filter, high-pass filter).
