ABB+SC540 3BSE006096R1

Description

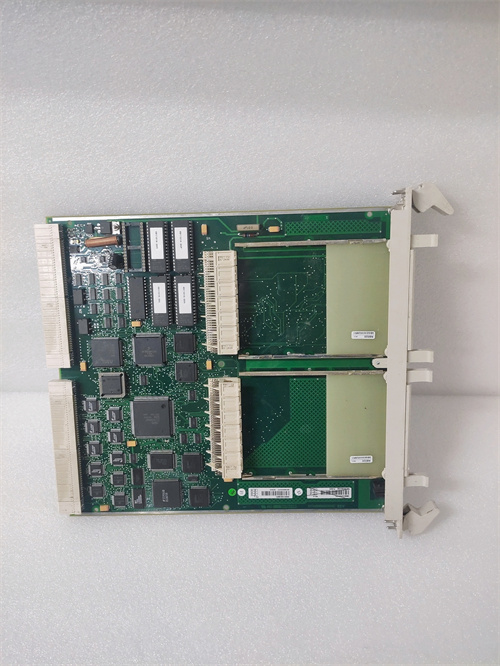

ABB SC540 3BSE006096R1 Module Overview

Product Name:
ABB SC540 Module (3BSE006096R1)

Product Description:
The ABB SC540 module is an essential component used in the ABB 800xA control system architecture. It is primarily designed for automation and control applications in various industries, ensuring reliable process control and data acquisition.

Product Parameters and Specifications:

• Type: I/O (Input/Output) module
• Form Factor: DIN-rail mountable
• Input Voltage: Typically operates on 24V DC (check specific variants)
• Outputs: Digital and/or analog (depending on the specific configuration)
• Communication Protocol: Compatible with ABB’s proprietary communication protocols for interfacing with various control systems
• Operating Temperature Range: Standard operating range (typically -20 to +60 °C)
• Dimensions: Varies according to specific model configurations
• Channels: Usually multiple channels for input/output configurations

Features:

• High reliability and robustness
• Modular design for easy integration and expansion
• Built-in diagnostics and status indicators
• Support for various field devices (sensors, actuators)

Product Use:
The SC540 module is utilized in a wide range of applications, including:

• Process automation: Control systems in chemical, oil and gas, and manufacturing industries.
• Data acquisition: Collecting data from various sensors and devices for monitoring and analysis.
• Integration with supervisory systems: Works within the ABB 800xA framework for seamless integration with other automation components.
• Remote monitoring and control: Facilitating control of processes from distant locations.
