ABB+REF615C_C HCFFAEAGANB2BAN1XC

Description

Product Name:

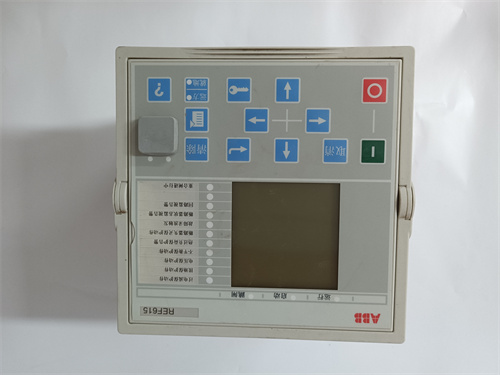

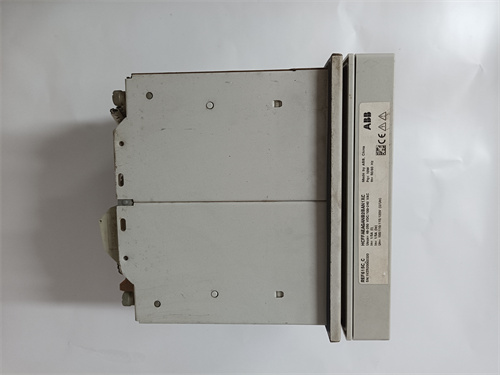

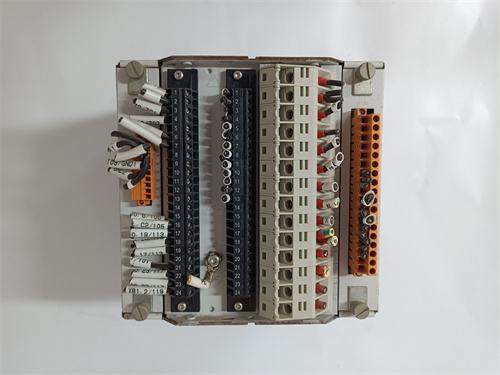

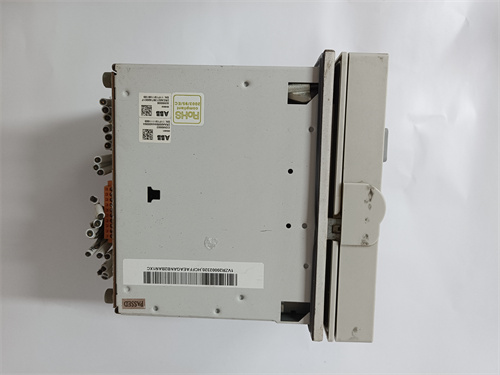

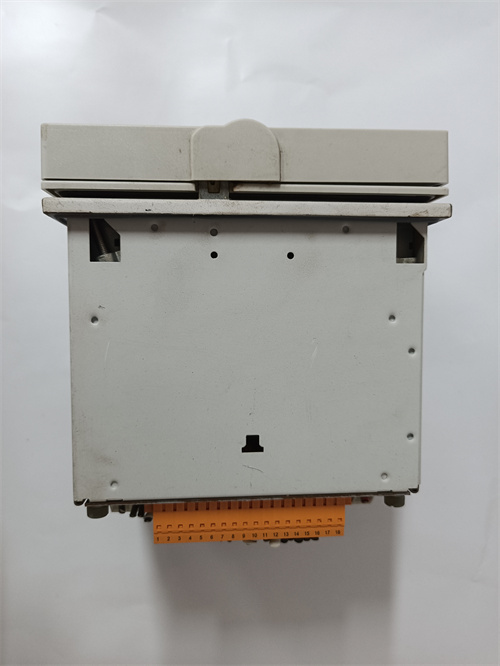

ABB REF615C_C HCFFAEAGANB2BAN1XC Controller

Product Description:

The ABB REF615C_C HCFFAEAGANB2BAN1XC Controller is a high-performance, compact and versatile controller designed for protection, control, monitoring, and automation applications in electrical substations. It is part of ABB’s family of Relion protection relays, known for their reliability and advanced functionality.

Product Parameters:

– Model: REF615C_C HCFFAEAGANB2BAN1XC
– Rated Voltage: XXX kV
– Rated Current: XXX A
– Frequency: 50/60 Hz
– Communication Interfaces: IEC 61850, Modbus, DNP3, etc.
– Operating Temperature: -40°C to +70°C
– Protection Functions: Overcurrent, Overvoltage, Distance Protection, etc.
– Control Functions: Control logic, trip coil supervision, breaker failure protection, etc.

Specifications:

– Compact design with modular construction.
– Flexible and customizable protection and control functions.
– High-speed communication interfaces for seamless integration with SCADA systems.
– Advanced fault detection and recording capabilities.
– Wide operating temperature range for reliable performance in harsh environments.
– Intuitive user interface for easy configuration and monitoring.

Product Use:

The ABB REF615C_C HCFFAEAGANB2BAN1XC Controller is used in medium and high-voltage electrical substations to provide reliable protection and control functions. It is commonly used in applications such as transformer protection, motor protection, feeder protection, and busbar protection. The controller helps to ensure the safe and reliable operation of electrical systems by detecting and responding to abnormal operating conditions, faults, and disturbances in a timely manner.
