ABB+REF615C E HCFDACADABC2BAN11E

Description

The ABB REF615C E HCFDACADABC2BAN11E controller is part of ABB’s REF615 series, which are advanced protection relays designed for the protection, control, and monitoring of electrical distribution systems.

Product Name:

ABB REF615C E HCFDACADABC2BAN11E

Product Description:

The REF615C E HCFDACADABC2BAN11E is a variant of the REF615 series, which provides comprehensive protection and control functionalities for medium-voltage switchgear. It is used primarily for the protection of electrical networks, including transformers and feeder lines. This model integrates features for both conventional and digital communication, enhancing its adaptability to various system configurations.

Product Parameters and Specifications:

• Protection Functions: Includes overcurrent, earth fault, and differential protection, as well as breaker failure and autoreclose functions.
• Communication Protocols: Supports standard communication protocols such as IEC 61850, allowing integration with modern substation automation systems.
• Inputs/Outputs: Configurable digital and analog inputs/outputs for various monitoring and control tasks.

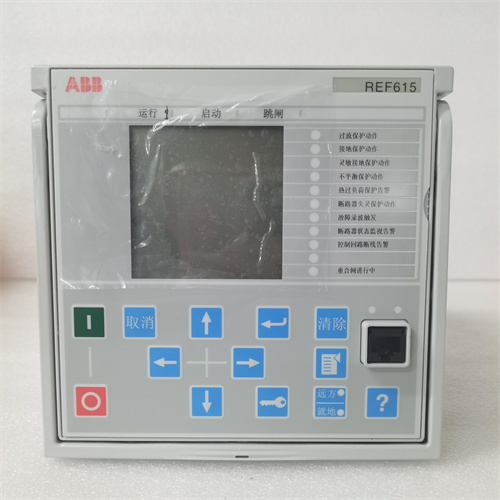

• Display: Equipped with an LCD screen for real-time status, event logging, and configuration.
• Software: Configured and monitored via ABB’s protection and control software suite, such as the PCM600.
• Power Supply: Operates typically on a DC supply, with a range depending on the specific configuration.
• Enclosure: Designed to be mounted in a standard substation panel, with protection ratings depending on the specific model and installation.

Product Use:

• Medium-Voltage Distribution Systems: Used in electrical substations and industrial facilities to protect medium-voltage switchgear and transformers.
• Feeder Protection: Offers protection for feeder lines, ensuring reliable operation and reducing downtime in case of faults.
• Transformer Protection: Protects transformers from faults, ensuring their operational integrity and minimizing the risk of damage.
• Network Monitoring: Provides real-time monitoring and diagnostics, helping in preventive maintenance and fault analysis.
• Control Functions: Can control circuit breakers and other equipment in the system, providing automated responses to various conditions.

The REF615C E HCFDACADABC2BAN11E is part of ABB’s REF615 product family, known for its reliability, advanced features, and adaptability to different electrical protection needs.
