Description

Product Name

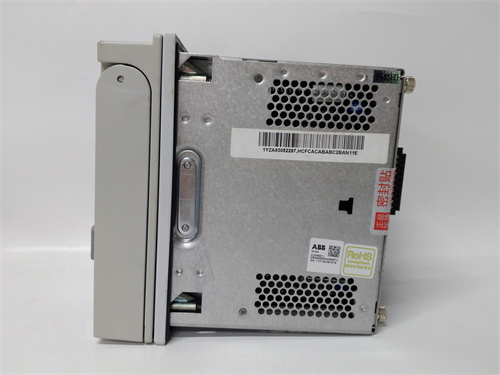

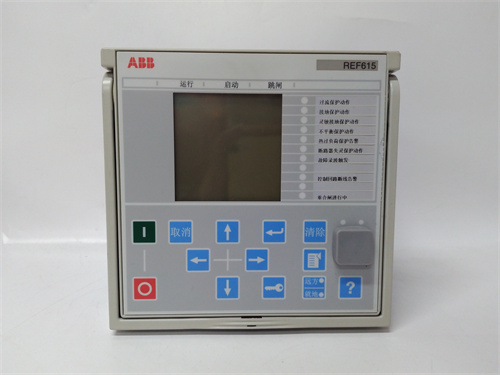

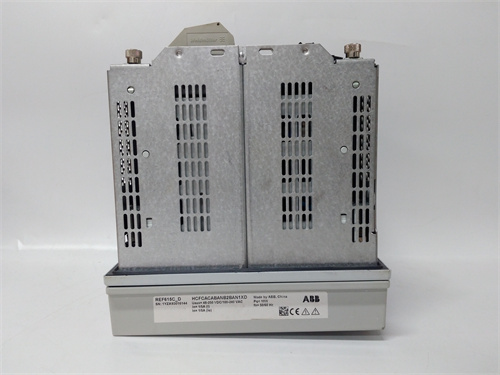

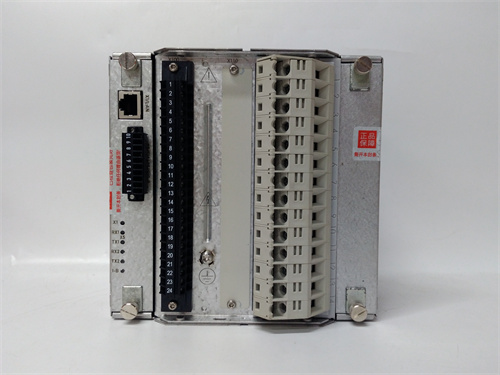

ABB REF615 HBFFAEAGABC1ANA21G

Product Description

The ABB REF615 HBFFAEAGABC1ANA21G is a state-of-the-art protection relay designed for medium voltage applications, particularly in electrical substations and distribution networks. As a member of the ABB REF615 series, this model offers advanced functionalities such as fault detection, circuit breaker control, and monitoring capabilities. With its robust design and integration of modern technology, the ABB REF615 HBFFAEAGABC1ANA21G ensures optimal performance and reliability under various operating conditions.

Product Specifications

• Rated voltage: 100 – 300 V AC
• Relay type: Numerical protection relay
• Input:
  • Current transformers (CTs): 1A or 5A
  • Voltage transformers (VTs): 100V ±20%
• Communication interfaces: Ethernet, IEC 61850, Modbus
• Operating temperature: -20 °C to +55 °C
• Dimensions: 1U rack-mounted, ensuring easy installation

Advantages and Features

The ABB REF615 HBFFAEAGABC1ANA21G offers numerous advantages:

• Comprehensive protection: Provides multi-function protection for generators, transformers, and line applications.
• User-friendly interface: The graphical LCD display allows for easy navigation and configuration.
• Customizable settings: Users can tailor the relay settings to meet their specific system requirements.
• Advanced communication options: Equipped with multiple communication protocols, making integration into existing networks seamless.
• Robust design: Durable construction ensures long-lasting performance in demanding environments.

Application Areas and Case Studies

The ABB REF615 HBFFAEAGABC1ANA21G is extensively used in:

• Utility substations: Providing protection and monitoring for transformers and feeder lines.
• Industrial applications: Essential for manufacturing facilities requiring reliable power distribution.
• Renewable energy: Ideal for wind and solar power plants to ensure stable operation.

An illustrative case study involves a utility company implementing the ABB REF615 HBFFAEAGABC1ANA21G to enhance the reliability and safety of their electrical distribution network, resulting in a significant reduction in outages and operational costs.

Competitive Comparison

When compared to similar models in the market, such as Schneider Electric’s MiCOM series and Siemens’ Siprotec relays, the ABB REF615 HBFFAEAGABC1ANA21G stands out due to its:

• Broad functionality integrated into one device.
• Superior communication capabilities that support modern smart grid systems.
• Intuitive user interface that facilitates quick diagnostics and maintenance.

Selection Recommendations

When selecting a protection relay, consider the following factors:

• Application Type: Ensure that the ABB REF615 HBFFAEAGABC1ANA21G meets the specific requirements of your application, whether it’s for transformers, generators, or feeders.
• Future-proofing: The advanced communication features ensure compatibility with future upgrades in automation and smart grid technologies.
• Support and service: Choosing the ABB REF615 HBFFAEAGABC1ANA21G comes with the backing of ABB’s global support network.

Precautions

Users should be mindful of:

• Installation environment: Ensure that the operating conditions align with the relay’s specifications to avoid premature failure.
• Proper configuration: Misconfiguration of settings can lead to inadequate protection and potential system failures, so consulting with experienced personnel during setup is advised.

We are your trusted partner, providing sales and technical support for ABB REF615 HBFFAEAGABC1ANA21G and other automation spare parts. Enjoy special discounted pricing. Please contact us; we are dedicated to serving you!
