ABB+RB520

Description

### Product Name:

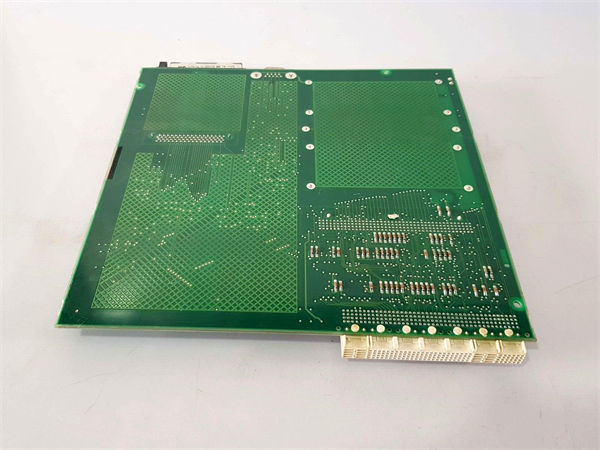

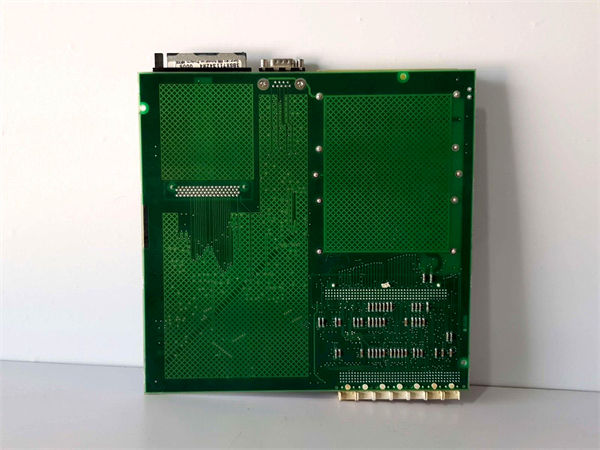

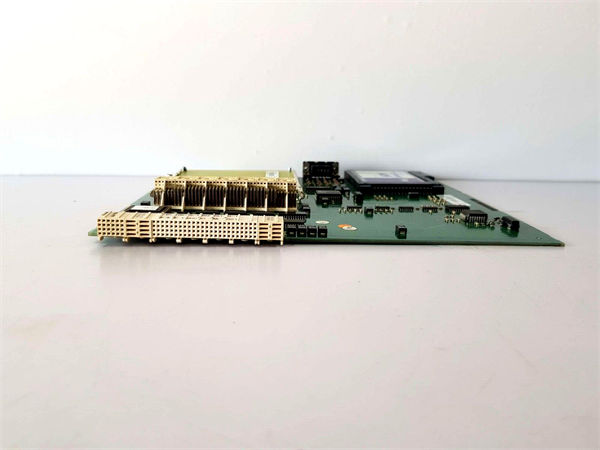

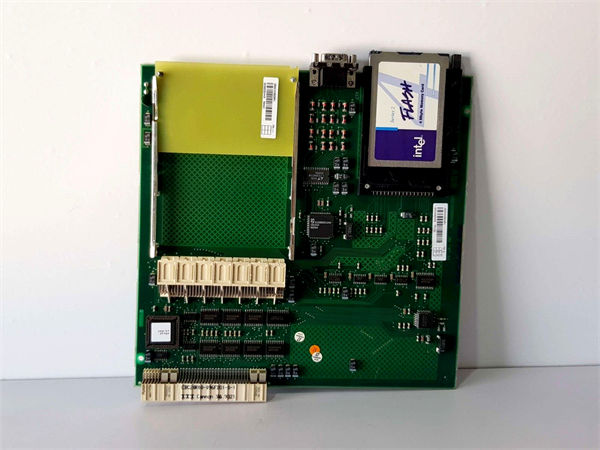

ABB RB520 Module

### Product Description:

The ABB RB520 Module is a versatile control and monitoring device designed to integrate seamlessly within industrial automation systems. It offers robust functionality and reliability, making it suitable for a wide range of applications where precise control and monitoring are essential.

### Product Parameters:

– **Power Supply:** 24V DC
– **Communication Interface:** Ethernet, RS-485
– **Digital Inputs:** 8 channels
– **Analog Inputs:** 4 channels (0-10V or 4-20mA)
– **Digital Outputs:** 6 channels (relay or transistor outputs)
– **Analog Outputs:** 2 channels (0-10V or 4-20mA)

### Specifications:

– **CPU:** ARM Cortex A8 1GHz
– **Memory:** 512 MB RAM, 512 MB Flash
– **Operating Temperature:** -20°C to +60°C
– **Storage Temperature:** -40°C to +85°C
– **Dimensions:** Compact DIN rail mountable enclosure, dimensions specifics vary (consult product manual for exact details)
– **Protection:** IP20 (indoor use)

### Product Use:

The ABB RB520 Module is designed to be used in industrial automation and control systems. It can perform tasks such as:

– Monitoring and controlling equipment and processes in real-time.
– Communicating data over Ethernet or RS-485 networks.
– Handling digital and analog inputs and outputs for interfacing with sensors, actuators, and other devices.

**Applications include:**

– Manufacturing automation
– Building automation
– Process control systems
– Energy management systems

The module is engineered to provide reliable performance in demanding environments, ensuring smooth integration and operation within existing infrastructure.
