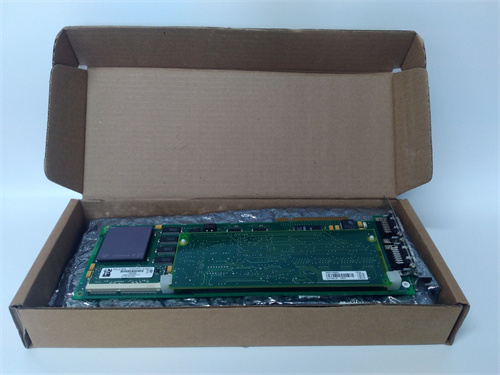

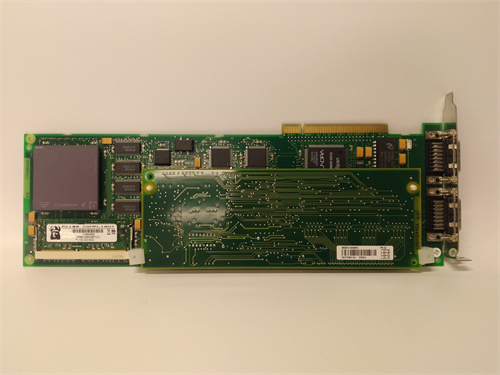

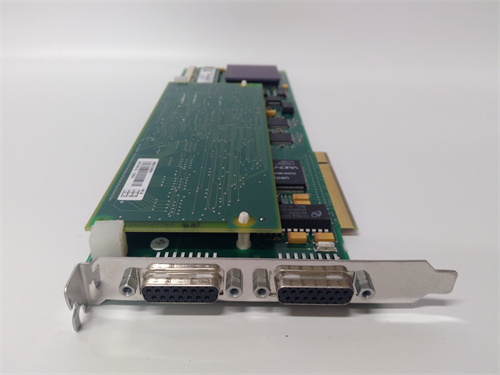

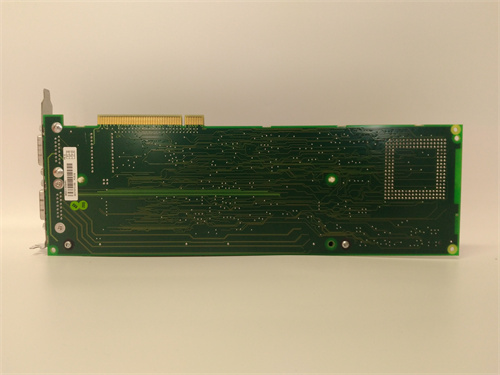

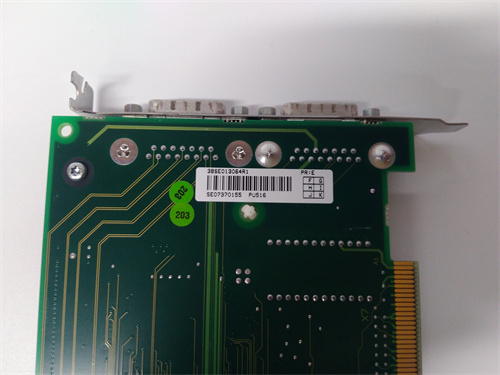

ABB+PU516 3BSE013064R1

Description

The ABB PU516 3BSE013064R1 module is part of ABB’s extensive range of automation and control products, commonly used in process control, industrial automation, and instrumentation.

Product Name:

• PU516
• Part Number: 3BSE013064R1

Product Description:

The PU516 is a processing unit module designed for integration into ABB’s control systems. It is used primarily within the ABB Industrial Automation and Process Control systems, specifically with the System 800xA platform or similar ABB DCS (Distributed Control Systems). The module typically handles processing functions related to system control, I/O (Input/Output) signal management, and communication interfaces within industrial operations.

Product Parameters and Specifications:

1. Type: Processing Unit (PU)
2. Part Number: 3BSE013064R1
3. Input Power: Typically 24 VDC (dependent on specific configuration)
4. Communication Ports: May include Ethernet and serial interfaces for integration with other system components.
5. Mounting Type: Typically DIN rail mounted (common for modular industrial systems).
6. Temperature Range:
   • Operating temperature range: -20°C to +60°C (subject to specific configurations).
   • Storage temperature range: -40°C to +70°C.
7. Dimensions: Standard modular dimensions for ease of integration into the control rack.
8. Certifications: Typically compliant with international standards such as CE, UL, and potentially others depending on the region.
9. Processing Capacity: Depending on the specific configuration and integration, it supports a significant number of I/O channels and can process numerous signals concurrently.

Key Features:

• Compatibility with ABB’s 800xA, Advant, or other similar systems.
• Integrated communication for system-level data transfer.
• Redundancy capabilities for high availability systems.
• Flexible configuration with various input/output module options.
• High reliability for critical industrial environments.
• Scalability to meet the needs of small to large industrial systems.

Product Use:

• The PU516 module is primarily used in distributed control systems (DCS) where it acts as a key component to manage and process signals from connected devices, sensors, actuators, and other system components.
• It is designed to function in environments such as:
  • Oil and gas plants
  • Chemical plants
  • Power generation plants
  • Manufacturing industries
  • HVAC (Heating, Ventilation, and Air Conditioning) systems
• It can serve applications like process control, monitoring, automation, and safety in various industrial sectors.

Integration & Application:

The PU516 module integrates seamlessly into control racks and interacts with other modules like input/output (I/O) modules, and communication interfaces, forming part of a larger, fully integrated system for monitoring, control, and optimization of industrial processes.

Typical Applications:

• Process control (temperature, pressure, flow monitoring)
• Distributed control and monitoring systems (DCS)
• Data acquisition in industrial environments
• Real-time process control and management
• Industrial automation and monitoring systems
