ABB+PP877K 3BSE069274R1

Description

Product Name:

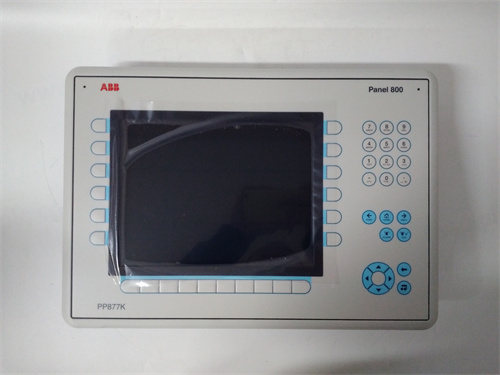

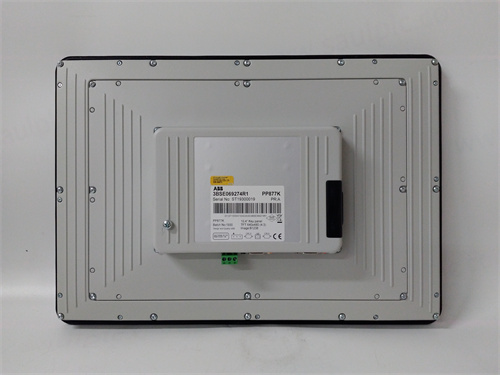

• ABB PP877K 3BSE069274R1 Touch Screen

Product Description:

The ABB PP877K is a Touch Screen HMI designed for industrial applications that require a robust and user-friendly interface for monitoring and controlling complex systems. It is often integrated into automation systems where ease of operation and clear visual feedback are paramount. This HMI is a part of ABB’s Extended Automation System, which supports multiple communication protocols and connects seamlessly with a variety of ABB controllers and devices.

• Touch Interface: Allows operators to interact directly with the system using touch gestures on the screen.
• High-Resolution Display: Provides clear and crisp visual representation of data and system status.
• Industrial Durability: Designed to withstand the harsh conditions often found in industrial environments (temperature, dust, humidity, etc.).
• Customizable Screens: Users can design custom layouts for displaying key performance indicators (KPIs), control buttons, alarms, and other relevant data.
• Communication Protocols: Compatible with ABB’s systems, allowing it to integrate with controllers, PLCs, and other devices for a seamless operation.

Product Parameters / Specifications:

• Display Type: Color LCD Touchscreen (typically around 7 to 15 diagonal depending on model)
• Resolution: High resolution (e.g., 800×480 or higher, depending on the size)
• Input Method: Capacitive or resistive touch screen
• Power Supply: DC input (typically 24V DC)
• Mounting Type: Panel-mount or flush-mount installation
• Operating Temperature: Typically from -10°C to +60°C (may vary based on model)
• Storage Temperature: -20°C to +70°C
• Humidity: 10% to 90% non-condensing

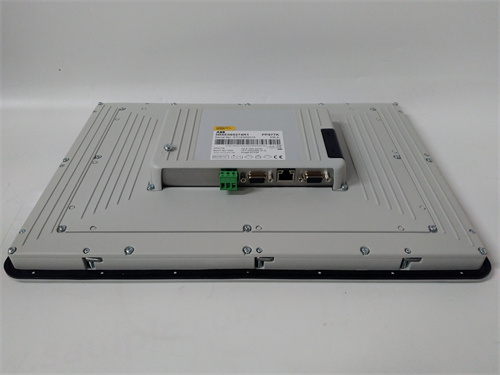

• Communication Ports:
  • Ethernet
  • Serial (RS-232/RS-485)
  • USB (for updates or file transfer)
  • Additional ports may be available depending on specific model configurations.
• Compliance: CE, UL, RoHS (may vary based on model)
• CPU/Processor: Industrial-grade processor optimized for HMI applications
• Memory: Sufficient flash memory for application storage, runtime data, and historical logs
• Software Support: Typically compatible with ABB’s Control Builder, HMI Builder, and other related software for designing and configuring applications.

Product Use / Applications:

The ABB PP877K 3BSE069274R1 Touch Screen is primarily used for the following applications:

1. Industrial Automation:
   • Monitoring and control of industrial machinery, production lines, and processes in industries such as manufacturing, oil and gas, and power plants.
2. SCADA Systems:
   • As an interface to SCADA (Supervisory Control and Data Acquisition) systems, it enables operators to visualize plant-wide data, alarms, and system health in real time.
3. Machine Control:
   • Can be used for machine-level control, offering direct interaction for starting/stopping equipment, adjusting setpoints, and monitoring operational status.
4. Building Automation:
   • Integrated into smart buildings for managing systems such as HVAC, lighting, and security systems through intuitive touch-based control.
5. Transportation and Logistics:
   • Used in transportation infrastructure, such as in control systems for airports, railways, or port facilities.
6. Remote Monitoring:
   • Can be used in applications where remote monitoring of critical systems is required, with the ability to respond quickly to alarms or alerts.

Key Features:

• Customizable user interface for ease of operation and reduced human error.
• Real-time data visualization for comprehensive system monitoring.
• Alarm management for fault detection and troubleshooting.
• Multi-language support for international use.
• Historical data logging and analysis for performance and maintenance insights.
