ABB+PP865 3BSE042236R1

Description

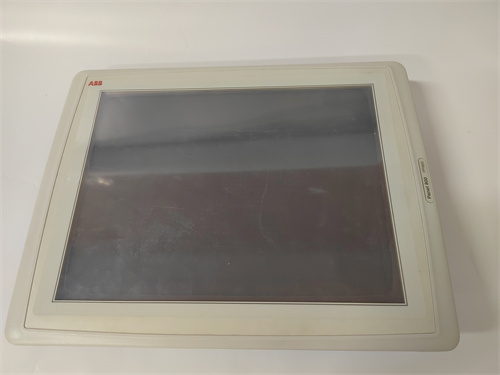

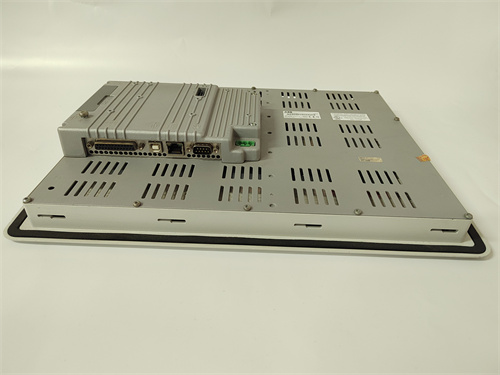

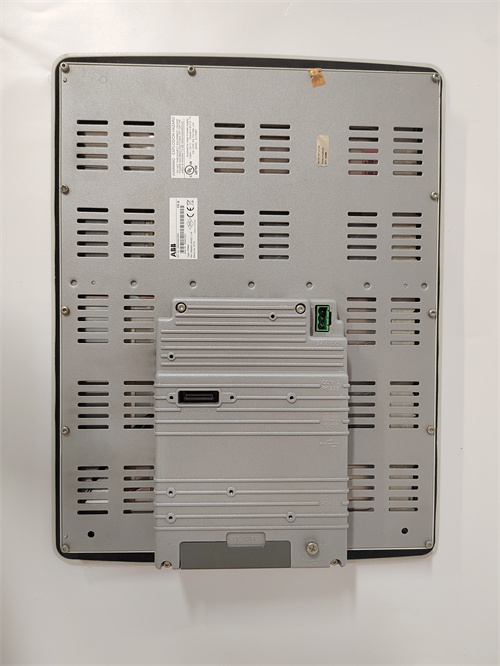

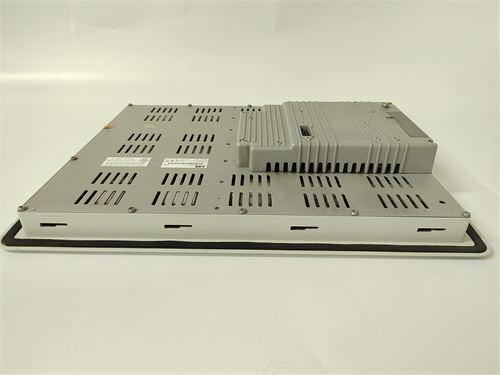

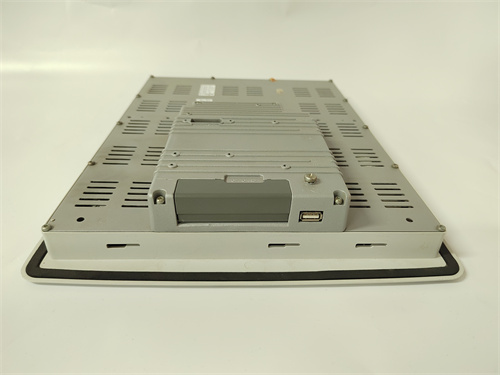

The ABB PP865 3BSE042236R1 is a touch screen display used in industrial automation and control systems. It is a component designed to interface with ABB’s control systems, providing operators with a user-friendly way to monitor and control processes in various industrial settings.

Product Name:

• ABB PP865 3BSE042236R1 Touch Screen

Product Description:

The ABB PP865 3BSE042236R1 is a high-quality, durable touch screen display used for controlling and monitoring industrial equipment. It is part of ABB’s range of operator panels and human-machine interfaces (HMIs), designed to provide clear, intuitive visual feedback for operators in automated systems. This device allows operators to interact with control systems, view process data, and make adjustments in real time through its graphical interface.

Product Parameters and Specifications:

1. Model: PP865 3BSE042236R1
2. Display Type: TFT (Thin-Film Transistor) Color LCD Touch Screen
3. Screen Size: 15 inches (typically for this model)
4. Resolution: Typically around 1024 x 768 pixels (XGA)
5. Touchscreen Technology: Resistive or capacitive touch depending on the variant
6. Input Type: Multi-touch capacitive (if applicable) or resistive touchscreen
7. Communication Ports:
   • Ethernet (for communication with control systems)
   • Serial Communication (RS232/RS485)
   • USB ports (for file transfer and upgrades)
8. Operating Temperature: Typically 0°C to 50°C (32°F to 122°F)
9. Storage: Flash memory for system storage and application data
10. Power Supply: Typically 24V DC (or depending on configuration)
11. Mounting: Panel mountable
12. Environmental Protection: IP65 (dust-tight and water-resistant front panel)
13. Software: Configured using ABB’s HMI software (e.g., ABB’s Automation Builder, or related software for the system in use)
14. User Interface: Can be configured to display real-time data, alarms, trends, and graphics representing the status of processes and systems.

Product Use:

• Human-Machine Interface (HMI): The PP865 is used in control rooms, plant floors, and industrial environments to provide an interactive interface between human operators and automated control systems. It helps monitor critical parameters like temperature, pressure, flow, and others, providing both visual and tactile feedback for process control.
• Industrial Automation: The device is used in industries such as manufacturing, energy, water treatment, and more, where it interfaces with programmable logic controllers (PLCs), SCADA systems, and other control hardware to provide live data and control capabilities.
• Process Control: The screen allows users to control various processes such as adjusting parameters, starting and stopping machinery, setting thresholds for alarms, and troubleshooting issues in real-time. It can be integrated with larger control systems, providing a centralized interface for multiple processes.
• Operator Training: The display is also valuable in training environments, where operators can become familiar with industrial processes, controls, and troubleshooting techniques using the intuitive interface.
• Maintenance and Diagnostics: The touch screen provides maintenance personnel with tools to monitor system health, run diagnostics, and analyze performance trends over time.

Key Features:

• High-resolution touch display for clear visibility in demanding environments
• Versatile communication options for integration into various automation systems
• Intuitive user interface that can be customized to suit specific process needs
• Durability and reliability for use in industrial settings with robust performance in temperature variations, dust, and humidity
• Flexible design for integration into a wide range of automation systems for both small and large-scale applications

ABB+PP865 3BSE042236R1
