ABB+PP825A 3BSE042240R3

Description

Product Name:

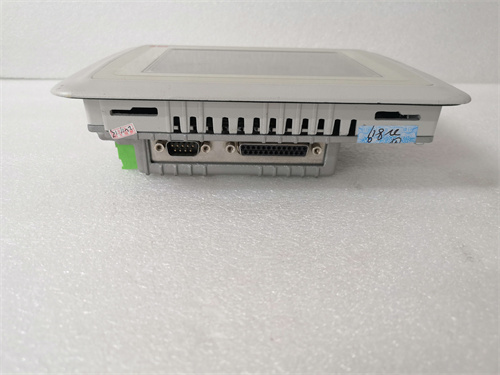

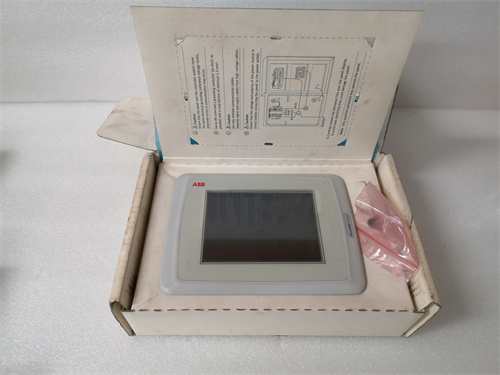

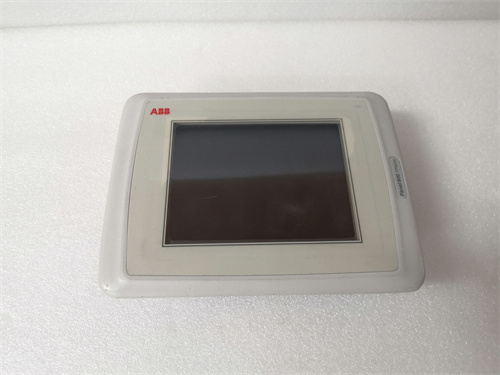

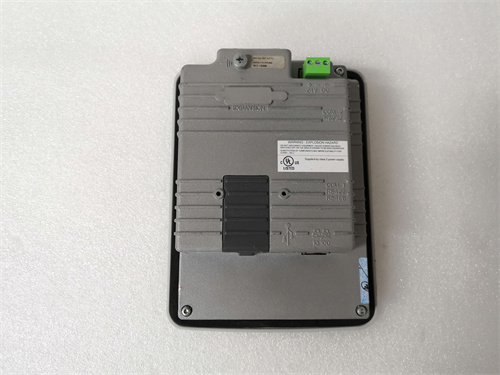

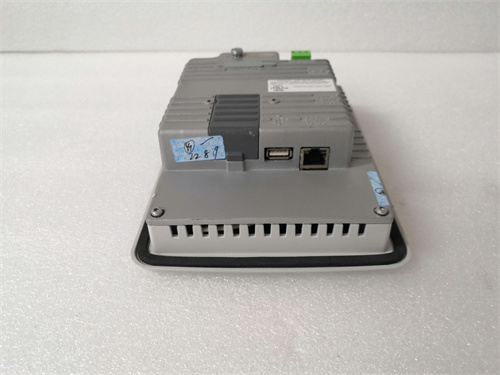

ABB PP825A 3BSE042240R3 Touch Screen

Product Description:

The ABB PP825A 3BSE042240R3 is a high-performance touch screen designed for use in automation systems and control panels. This device is a part of ABB’s advanced control and automation solutions, providing operators with an intuitive and user-friendly interface to monitor and control various processes. The touch screen is typically used in industrial applications, offering seamless integration with ABB’s PLCs, DCS, and other control systems for improved operational efficiency.

The touch screen interface allows operators to visualize system data, configure parameters, and access real-time status updates, making it an essential component for controlling complex processes in manufacturing, energy, and automation industries.

Product Parameters and Specifications:

• Model Number: PP825A 3BSE042240R3
• Manufacturer: ABB
• Display Type: TFT LCD Touch Screen
• Screen Size: 15.1 inches
• Resolution: 1024 x 768 pixels
• Interface Type: Touchscreen (Resistive or Capacitive, depending on model)
• Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
• Storage Temperature Range: -20°C to 70°C (-4°F to 158°F)
• Power Supply: 24V DC
• Power Consumption: Typically < 30W
• Touchscreen Technology: Resistive or Capacitive
• Mounting Type: Panel Mount
• Connectivity: Ethernet, USB, Serial Ports (RS232/RS485)
• Communication Protocols: Modbus, OPC, EtherNet/IP, Profibus (optional based on configuration)
• Input/Output Ports: Multiple digital and analog I/O options (depending on configuration)
• Operating System: Windows CE or Embedded Linux (varies by model)
• Enclosure Type: NEMA 4/4X (IP65 rated)
• Safety Standards: CE, UL, RoHS compliant

Product Use:

• Industrial Automation: The PP825A touch screen is ideal for use in industrial automation environments, such as manufacturing plants, oil & gas facilities, and power generation plants. It integrates seamlessly with ABB control systems and acts as the user interface for controlling and monitoring machines, processes, and systems.
• Human-Machine Interface (HMI): As an HMI device, the touch screen allows operators to interact with the system via graphical displays and touch-based controls. This reduces the need for physical controls and allows for more flexible and intuitive management of operations.
• Control Panel Applications: Often used in control panels for easy monitoring of process variables such as temperature, pressure, flow rate, etc. It enables operators to adjust setpoints, configure alarms, and view system diagnostics in real time.
• Remote Monitoring: With support for Ethernet and various communication protocols, the PP825A touch screen can be used for remote monitoring and control of systems, providing operators with the ability to access data and manage processes from remote locations.
• Customization and Visualizations: The touch screen supports custom graphic displays, which can be tailored to specific operational needs. Users can create visual representations of the process flow, enabling easier identification of issues and improving response times.
• Data Logging and Reporting: The touch screen is capable of logging data and generating reports, which is crucial for performance analysis, maintenance scheduling, and ensuring compliance with industry standards.

Advantages:

• Intuitive User Interface: Easy-to-navigate touchscreen interface for quick control and monitoring.
• High-Resolution Display: Sharp and clear visual representation of data.
• Customizable Graphics: Support for creating user-specific layouts and displays.
• Multiple Communication Options: Wide range of communication protocols for integration into various systems.
• Robust Design: IP65 rated for protection against dust and water, making it suitable for harsh industrial environments.

Common Applications:

• Process Control and Automation
• Machine Control Systems
• SCADA (Supervisory Control and Data Acquisition) Systems
• Building Automation and HVAC Systems
• Energy Management Systems
