ABB+PP825 3BSE042240R1

Description

Product Name:

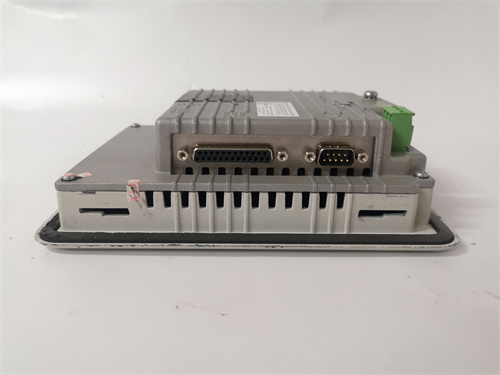

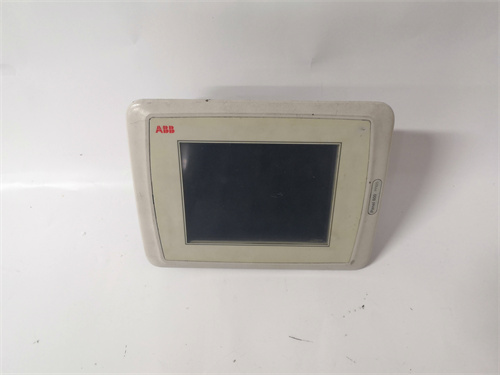

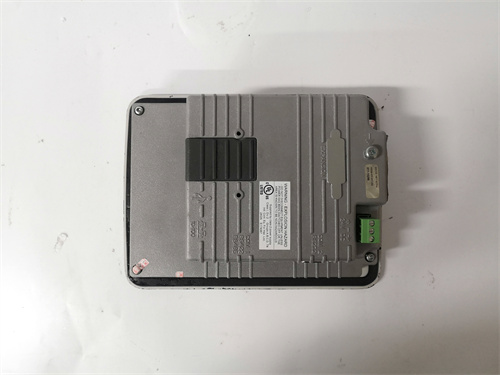

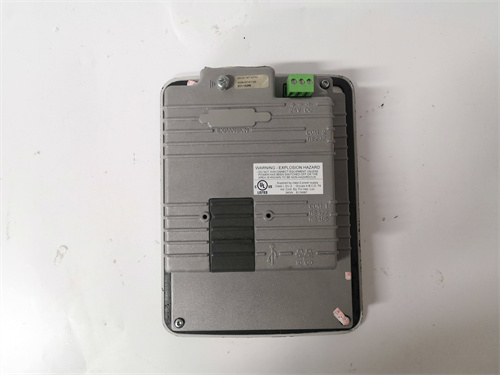

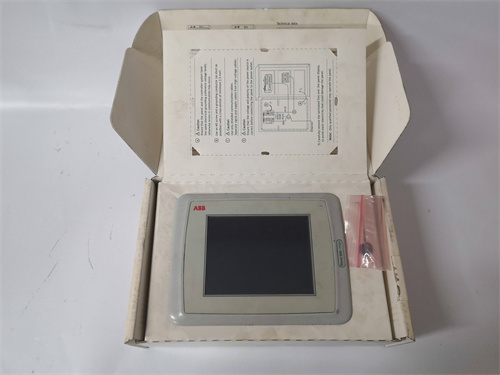

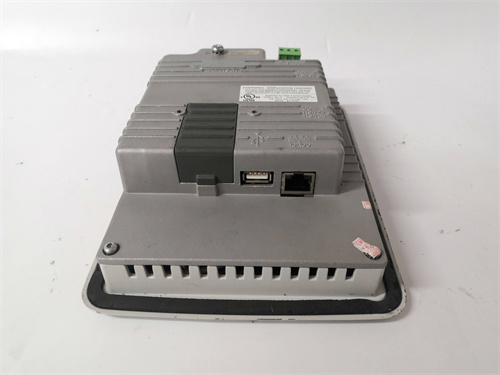

ABB PP825 3BSE042240R1 Touch Screen

Product Description:

The ABB PP825 3BSE042240R1 is a high-performance touch screen designed for industrial automation systems. It serves as a human-machine interface (HMI) for monitoring, controlling, and configuring industrial processes. The device features a user-friendly interface, providing operators with a clear and intuitive way to interact with machinery, process variables, and control systems. The PP825 touch screen is typically used in conjunction with ABB’s automation solutions, offering enhanced interaction with ABB’s control systems such as the 800xA, Advant, and other similar systems.

Product Parameters and Specifications:

• Display Type: TFT LCD color touch screen
• Screen Size: Typically 15 inches (or similar size depending on variant)
• Resolution: 1024 x 768 pixels (XGA)
• Touch Interface: Resistive or capacitive touch technology
• Brightness: High brightness display suitable for industrial environments
• Operating Temperature: -10°C to 60°C (depending on the model)
• Storage Temperature: -20°C to 70°C
• Power Supply: 24V DC
• Mounting: Panel mounting, designed for easy integration into control panels or operator stations
• Communication Ports: Multiple communication options, including Ethernet, serial ports (RS232/RS485), and other industrial protocols such as Modbus, OPC, etc.
• Protection Rating: IP65 (front panel), protecting it against dust and water ingress
• CPU: Typically based on a high-performance ARM or x86 processor
• Memory: Typically comes with onboard flash memory (e.g., 512MB to 4GB, depending on model)
• Backup: Flash memory backup or external storage for critical data and settings
• Software Compatibility: Compatible with ABB’s 800xA, Advant, and other industrial automation systems for seamless integration and control
• User Interface: Supports custom graphic interfaces, alarms, trends, and data display
• Alarming and Logging: Built-in alarm functionality with historical log storage and event management
• Languages: Multi-language support for global use

Product Use:

The ABB PP825 3BSE042240R1 touch screen is primarily used in industrial automation and control systems where operators need to monitor and control a variety of processes. Some typical applications include:

1. Manufacturing Plants: For real-time monitoring of production lines and machinery.
2. Power Generation: For control and monitoring of power plants, substations, and other energy facilities.
3. Chemical and Process Industries: To interact with process control systems for precise monitoring and adjustment of chemical processes.
4. Oil & Gas: For monitoring and controlling operations in refineries, pipelines, and offshore platforms.
5. Water Treatment: For tracking and controlling water treatment processes.
6. Building Automation: Integrated into HVAC, lighting, and other building control systems.
7. Logistics & Material Handling: For controlling automated warehouses and sorting systems.
