ABB+PM866K01 3BSE050198R1

  • Part Number: 3BSE050198R1
  • Model: PM866K01
  • Supported Protocols: Modbus, Ethernet/IP, and proprietary ABB protocols
  • Operating Temperature Range: Typically 0°C to +60°C (depending on the environment)
  • Power Consumption: Typically low, but specifics should be confirmed with the datasheet
  • Mounting: DIN rail mounting (standard for industrial controllers)
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: sales@plcfcs.com
  • Phone / Wechat:+86 15343416922

Description

Product Name:

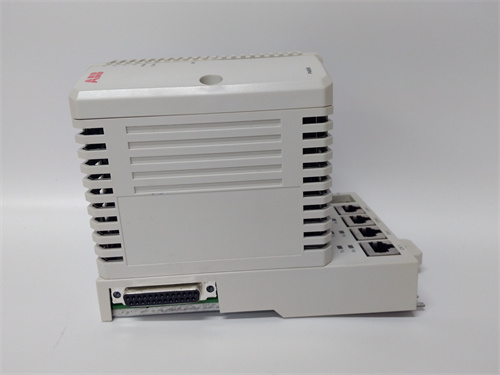

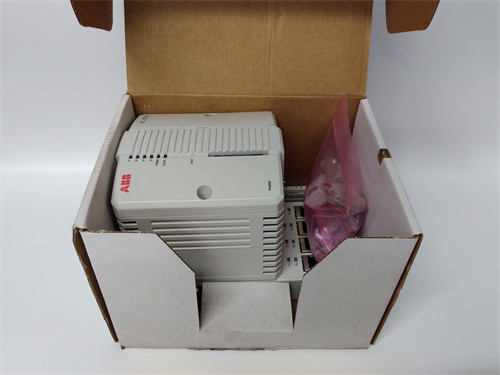

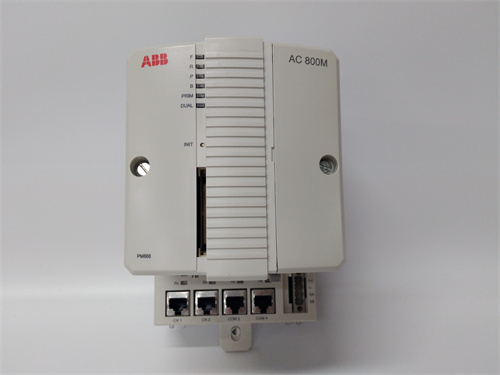

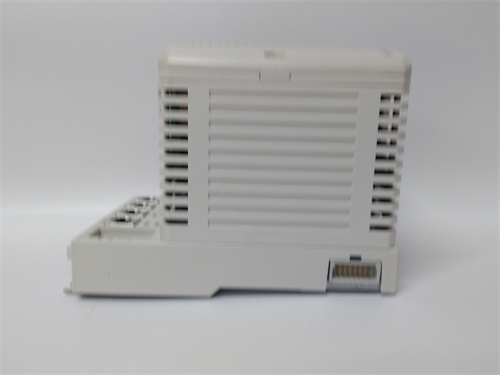

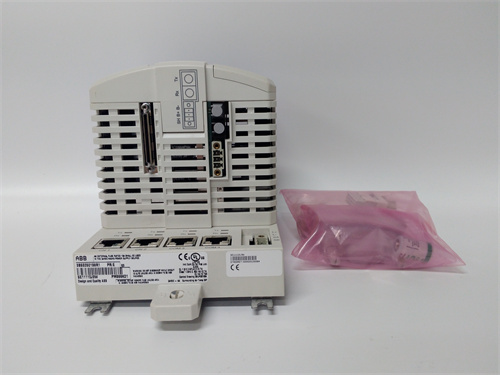

  • PM866K01 Communication Processor Module
  • Part Number: 3BSE050198R1

Product Description:

The ABB PM866K01 is a high-performance communication processor designed for use with ABB’s 800xA and ControlMaster systems. It offers robust functionality for system integration, communication, and control in automated industrial environments. This module is used to enable the communication between controllers, field devices, and supervisory systems, often in large-scale and mission-critical applications.

Product Features/Specifications:

  • General Purpose:
    • It serves as the communication hub for multiple systems and devices, supporting Ethernet-based protocols and other industrial communication standards.
  • Data Communication:
    • The PM866K01 supports communication protocols such as Modbus TCP/IP, Ethernet/IP, and other ABB proprietary protocols, ensuring seamless connectivity across various systems.
  • Connectivity:
    • It supports high-speed communication for quick data exchange, reducing latency and enhancing system response times.
  • Scalability:
    • The module can support a range of system sizes, from small systems to large, distributed control networks, due to its ability to handle significant amounts of data and connect multiple devices.
  • Input/Output Support:
    • It can handle multiple digital and analog inputs and outputs, depending on the connected devices, which is essential for controlling and monitoring field instruments.
  • Performance:
    • High performance in terms of both processing power and communication speed, making it suitable for demanding industrial applications.
  • Reliability:
    • Built with redundancy options and high fault tolerance to ensure continuous operation in critical environments.
  • Integration with 800xA:
    • Fully compatible with ABB’s 800xA control platform, providing seamless integration into existing systems with ease of configuration.

Technical Specifications:

  • Part Number: 3BSE050198R1
  • Model: PM866K01
  • Supported Protocols: Modbus, Ethernet/IP, and proprietary ABB protocols
  • Operating Temperature Range: Typically 0°C to +60°C (depending on the environment)
  • Power Consumption: Typically low, but specifics should be confirmed with the datasheet
  • Mounting: DIN rail mounting (standard for industrial controllers)
  • Communication Ports:
    • Ethernet Ports (for network communication)
    • Other optional ports for field device connections depending on specific configuration

Product Use:

  • Control and Automation: Used primarily in industries such as oil and gas, chemical processing, power generation, manufacturing, and utilities for controlling and automating processes.
  • Communication Linkage: Facilitates communication between control systems and field devices (sensors, actuators, PLCs, etc.).
  • System Integration: Enables the integration of different subsystems (for example, connecting different PLCs, HMIs, or SCADA systems into a single, cohesive control system).
  • Remote Monitoring and Diagnostics: Can be used for monitoring remote locations, troubleshooting, and diagnostics of the control system.

Applications:

  • Industrial Automation: Essential for environments requiring real-time data exchange, such as factory automation, process control, and machinery monitoring.
  • Energy Management Systems (EMS): Used in monitoring and controlling energy distribution networks.
  • Safety Systems: Ensures high availability and reliable operation for safety-critical applications.
