ABB+PM866K01 3BSE050198R1

Description

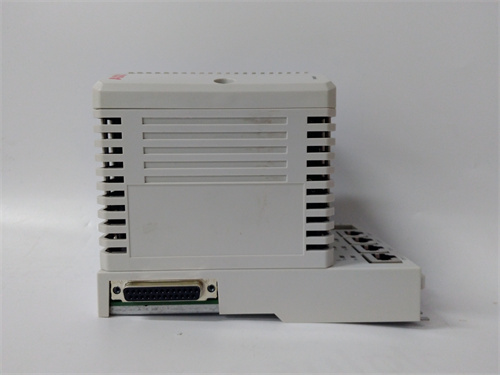

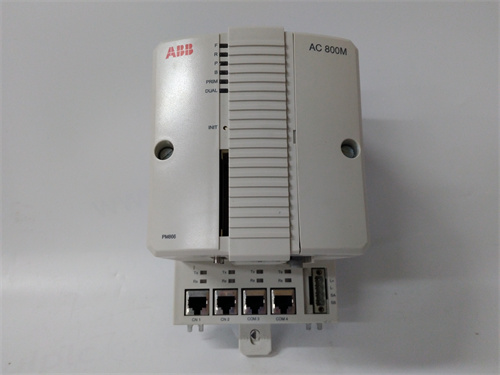

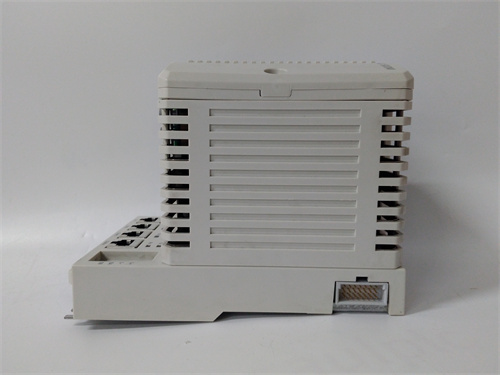

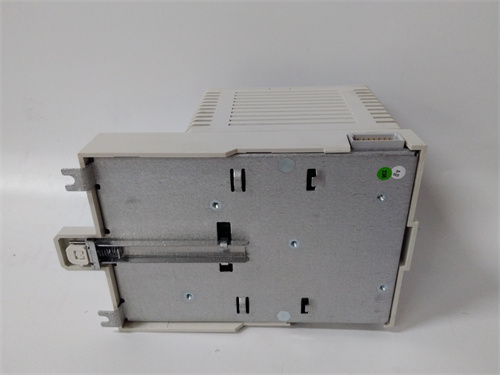

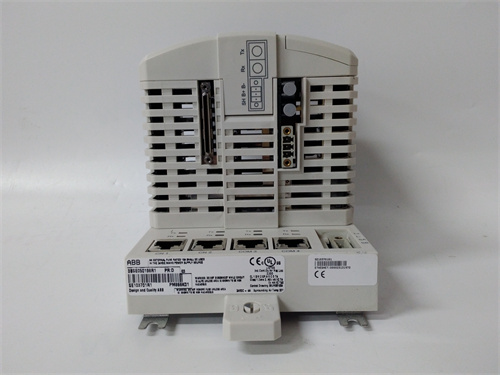

The ABB PM866K01 (3BSE050198R1) is a part of the AC 800M series of programmable controllers designed for industrial automation and control systems.

**Product Name:**

– ABB PM866K01 (3BSE050198R1)

**Product Description:**

– The PM866K01 is a controller module that belongs to the ABB AC 800M series. It serves as a central processing unit (CPU) for automation tasks in various industrial applications. It is designed to handle complex control and monitoring tasks in real-time.

**Product Parameters:**

– **Model Number:** PM866K01 (3BSE050198R1)
– **Processor Type:** Dual-core processor
– **Memory:**
– 16 MB RAM (expandable)
– 8 MB flash memory
– **Communication Interfaces:**
– Ethernet interface
– RS232/RS485 serial communication ports
– **Supported I/O Modules:** Compatible with a wide range of I/O modules for analog and digital signals.
– **Operating System:** Runs on ABB’s proprietary controller operating system.

**Specifications:**

– **Power Supply:** 24 V DC nominal (18.0 V DC to 31.2 V DC)
– **Power Consumption:** Typically 20 W
– **Operating Temperature:** 0°C to 60°C (32°F to 140°F)
– **Storage Temperature:** -40°C to 85°C (-40°F to 185°F)
– **Humidity:** 5% to 95% RH (non-condensing)
– **Dimensions:**
– Height: 178 mm (7 inches)
– Width: 35 mm (1.4 inches)
– Depth: 138 mm (5.4 inches)

**Product Use:**

– The PM866K01 is used primarily in industrial automation and control systems where reliable, high-performance processing is required. It serves as the central controller in applications such as:
– Manufacturing plants
– Power generation facilities
– Oil and gas refineries
– Water treatment plants
– Transportation systems

This controller module is known for its robustness, reliability, and scalability, making it suitable for both large-scale and complex automation projects.
