ABB+PM866K01 3BSE050198R1

Description

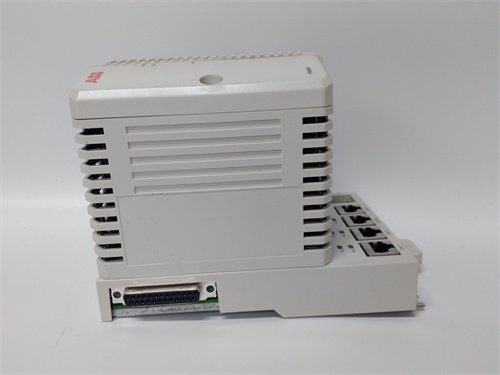

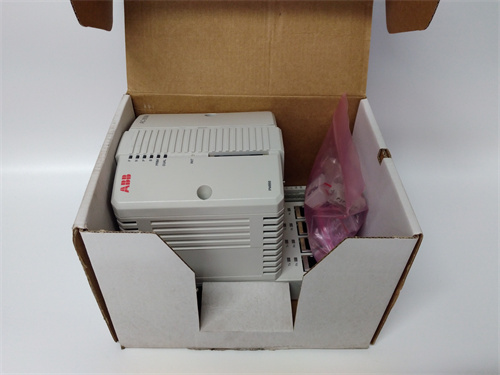

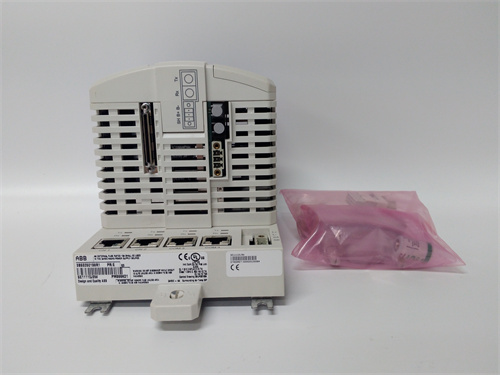

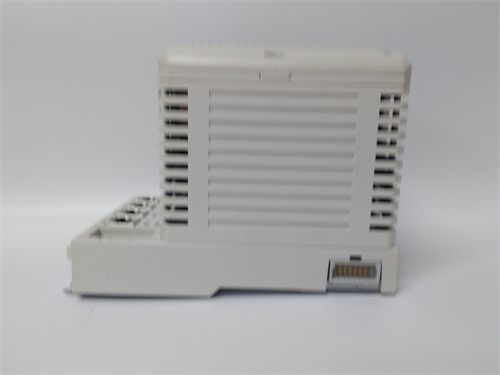

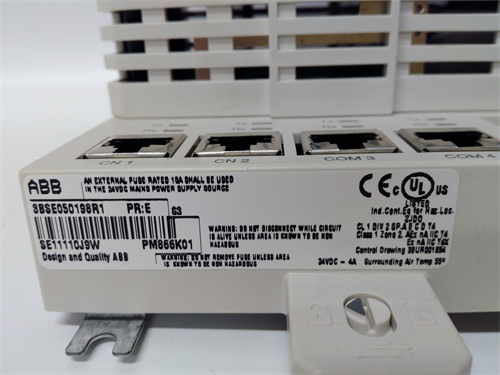

The ABB PM866K01 (3BSE050198R1) module is a part of ABB’s AC 800M series of programmable logic controllers (PLCs).

**Product Name:**

ABB PM866K01 (3BSE050198R1)

**Product Description:**

The PM866K01 is a central processing unit (CPU) module designed for use in the ABB AC 800M series of PLCs. It serves as the core processing unit responsible for executing control logic, handling communications, and managing I/O operations in industrial automation applications.

**Product Parameters and Specifications:**

– **CPU Type:** PM866
– **Part Number:** 3BSE050198R1
– **Processor:** Dual-core ARM Cortex-A9 processors
– **Memory:** 16 MB RAM (expandable up to 64 MB)
– **Storage:** 64 MB Flash memory (expandable)
– **Communication Interfaces:** Ethernet, Serial RS-232/RS-485
– **Power Supply:** 24 V DC (nominal)
– **Operating Temperature:** 0 to 60°C (32 to 140°F)
– **Dimensions:** 215 x 45 x 162 mm (H x W x D)
– **Weight:** Approximately 0.7 kg

**Product Use:**

The PM866K01 module is typically used in industrial automation and control systems where reliability, performance, and flexibility are crucial. It is suitable for applications requiring complex control algorithms, extensive I/O handling, and high-speed communication with field devices and supervisory systems.

**Key Features:**

– **Redundancy Options:** Supports redundant configurations for high availability.
– **Real-time Performance:** Provides deterministic control execution for time-critical processes.
– **Extensive Connectivity:** Ethernet-based communication supports protocols like Modbus TCP/IP, OPC, and more.
– **Programming Environment:** Compatible with ABB’s Control Builder M software for programming and configuration.

**Applications:**

– Manufacturing plants
– Power generation facilities
– Water treatment plants
– Oil and gas installations
– Transportation systems
– Building automation

The PM866K01 facilitates efficient control and monitoring in diverse industrial environments, ensuring reliable operation and integration with existing automation infrastructure.
