ABB+PM866A 3BSE076359R1

Description

Product Name:

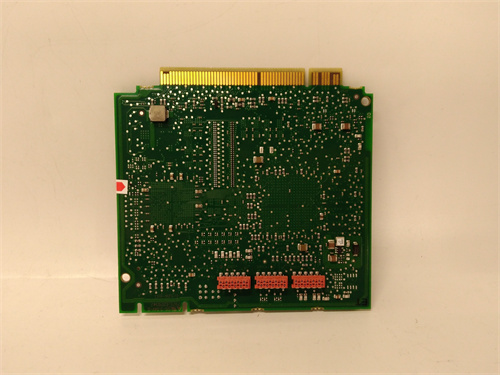

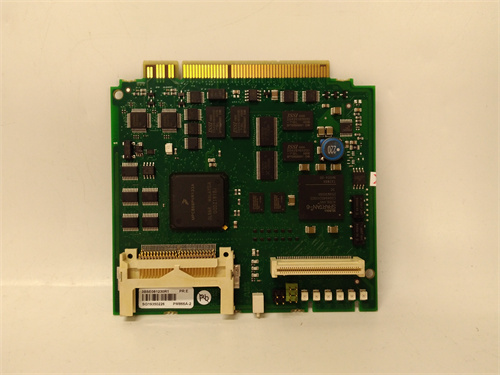

ABB+PM866A 3BSE076359R1 Controller Module

Product Description:

The PM866A (part number 3BSE076359R1) is a powerful and versatile controller module designed by ABB for use in process automation and control systems. It is a part of ABB’s 800xA system, which is widely used in industrial applications to manage complex processes in sectors like oil & gas, chemicals, power generation, and manufacturing. This module is a high-performance processor used for controlling various automation and control tasks, including process control, data communication, and real-time decision-making.

Key Features:

• High processing power for controlling complex processes.
• Supports multiple communication protocols, including Modbus, Profibus, and Ethernet.
• Compatible with ABB’s 800xA Distributed Control System (DCS) and can be integrated into a variety of control systems for a wide range of applications.
• Offers redundancy options for high availability and system reliability.
• Expandable architecture to scale up to meet growing operational demands.
• Incorporates both hardware and software redundancy features to minimize downtime in critical applications.
• Equipped with high-performance I/O processing capabilities and communication capabilities.

Product Specifications & Parameters:

• Module Type: Controller/Processor Module.
• Part Number: 3BSE076359R1.
• Compatibility: Designed for use in ABB 800xA system and compatible with the AC 800M controller platform.
• Processor: High-performance multi-core processor.
• Communication Protocols:
  • Modbus RTU, Modbus TCP/IP.
  • Profibus DP.
  • Ethernet/IP.
  • OPC (Open Platform Communications).
• Redundancy: Supports system redundancy for improved system availability and reliability.
• I/O Connections: Can interface with both digital and analog I/O modules within the 800xA system.
• Operating Voltage: Typically 24V DC, but variations may exist depending on the configuration.
• Operating Temperature Range: -20°C to 60°C.
• Power Consumption: Depends on configuration but typically in the range of 20-50W.
• Mounting: DIN rail mounting for ease of installation in industrial environments.
• Software Support: Works with ABB’s control software (e.g., System 800xA, 800xA DCS, and AC 800M controllers).
• Certification: CE, UL, and other industrial certifications for safety and reliability.

Product Use:

The PM866A module is used in various industrial automation systems to provide control and monitoring for different applications. It is particularly useful in sectors that require high levels of process control and safety, such as:

• Process Control: It can control and monitor complex processes in industries like oil & gas, power plants, and chemical processing.
• Factory Automation: Used for automating manufacturing processes, particularly in industries like automotive, food and beverage, and pharmaceuticals.
• Energy Management: In power generation or distribution systems, it supports control and optimization of energy usage and monitoring.
• Building Automation: In large facilities for managing HVAC, lighting, and other critical systems.
• Safety Systems: Can integrate with safety systems for mission-critical applications where redundancy and high availability are necessary.

Summary of Benefits:

• Scalability and Flexibility: The PM866A can be expanded and adapted to meet the needs of growing systems and applications.
• Reliability: Built to operate in harsh industrial environments with high uptime, leveraging redundancy and high-quality components.
• Interoperability: Supports a wide range of communication protocols, making it suitable for integration with different systems and equipment.
• Advanced Control: Provides advanced process control, data processing, and analysis features for more efficient and reliable operations.

The PM866A is ideal for industries that require continuous operation with minimal downtime and high-performance control systems.
