ABB+PM861K01

Description

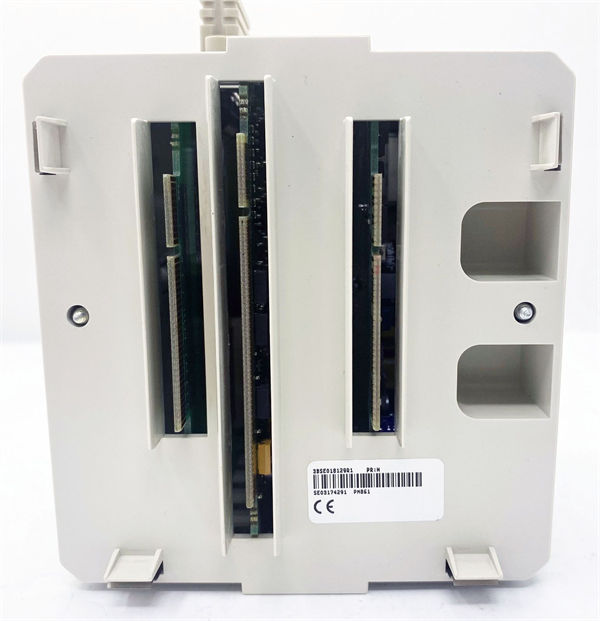

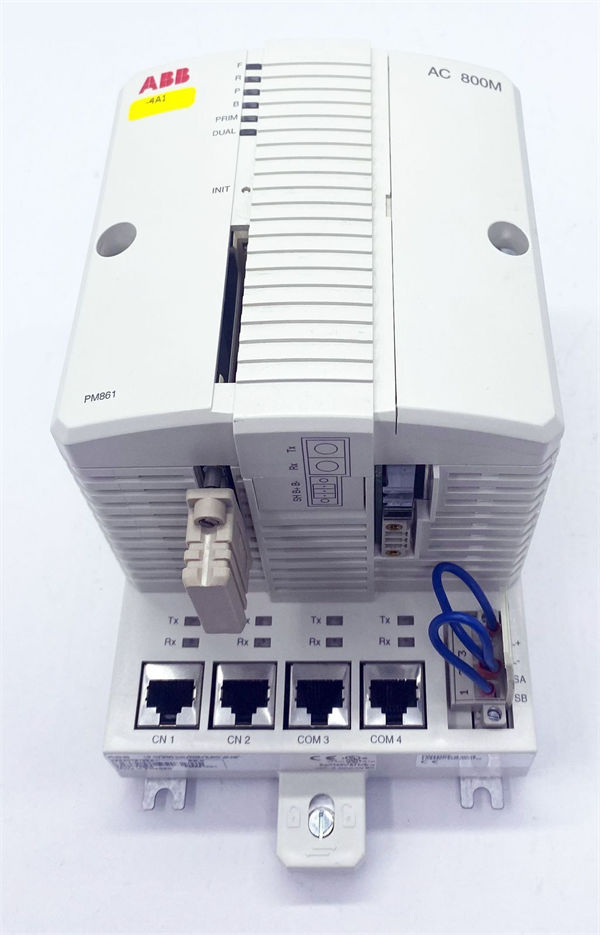

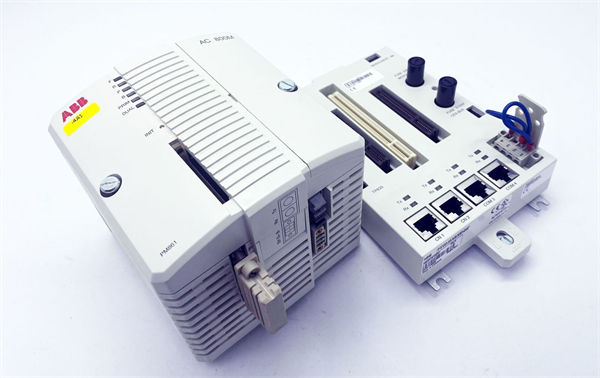

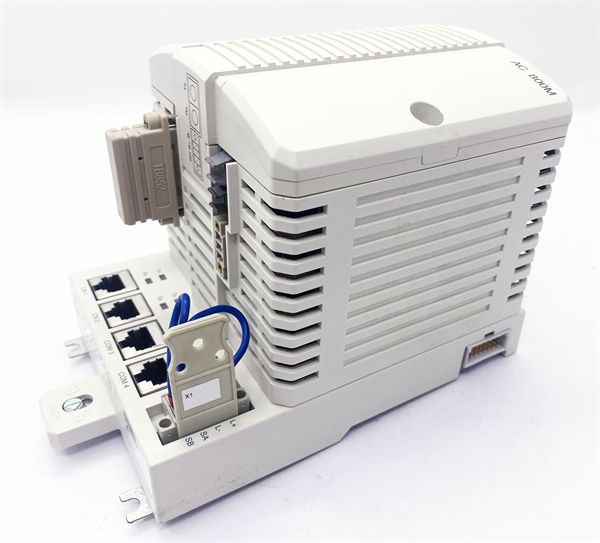

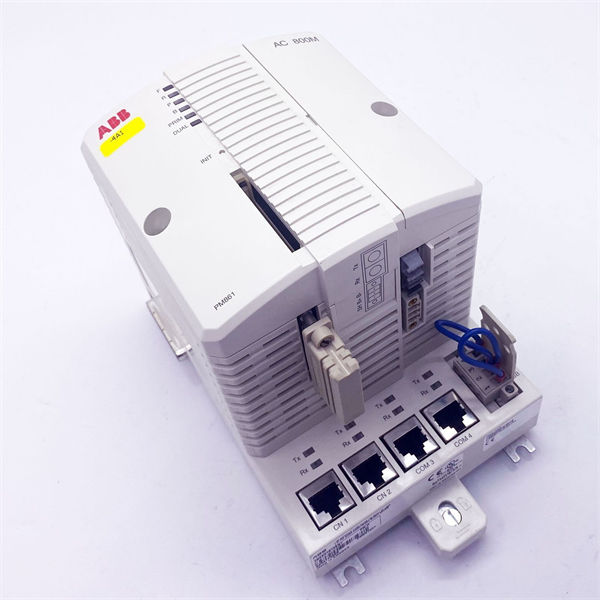

The ABB PM861K01 is a processor module from the ABB AC 800M series, designed primarily for industrial automation applications.

**Product Name:**

ABB PM861K01 Processor Module

**Product Description:**

The ABB PM861K01 is a powerful and flexible processor module designed for use in the ABB AC 800M series of programmable logic controllers (PLCs). It is specifically engineered to handle complex control tasks and provide reliable performance in various industrial automation environments.

**Product Parameters and Specifications:**

– **Processor:** Dual-core CPU
– **Memory:**
– 16 MB RAM (expandable up to 32 MB)
– 64 MB Flash memory (expandable up to 128 MB)
– **Ethernet Ports:**
– 2 Ethernet ports for communication
– Supports Ethernet/IP, Modbus TCP, and other protocols
– **Serial Ports:**
– 2 serial ports (RS-232/RS-485)
– **I/O Slots:**
– Up to 5 I/O modules can be connected directly
– **Operating Temperature:** 0 to 60°C
– **Power Supply:** 24 V DC nominal (18 to 31.2 V DC range)

**Product Use:**

The ABB PM861K01 processor module is used primarily in industrial automation and control systems where reliability, performance, and flexibility are crucial. It serves as the central processing unit in the ABB AC 800M series PLCs, capable of handling a wide range of control and monitoring tasks across various industries including manufacturing, energy, transportation, and more.

This module supports advanced features such as redundant communication, integrated safety, and extensive connectivity options, making it suitable for demanding applications requiring high availability and robust performance.
