Description

The ABB PM861AK01 is a specific model of the ABB Power Monitoring Module designed for use in industrial automation and control systems.

Product Name

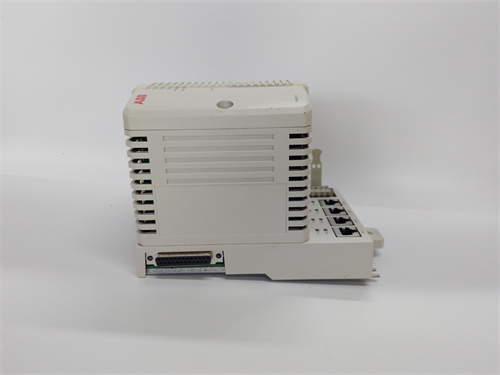

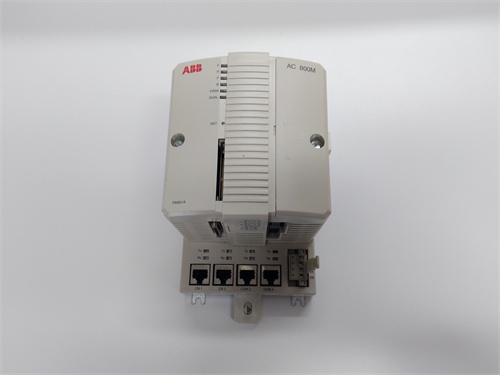

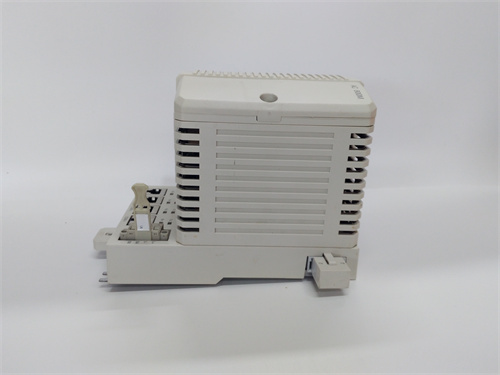

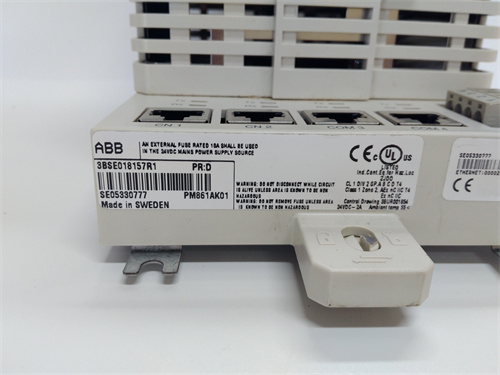

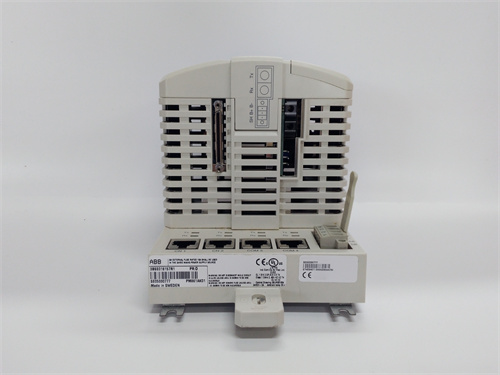

ABB PM861AK01

Product Description

The PM861AK01 is a power monitoring module used in ABB’s 800xA automation system. It provides comprehensive monitoring and control functionalities for electrical systems, allowing for real-time data acquisition and analysis of power parameters. This module is designed to enhance energy efficiency and improve system reliability.

Product Parameters and Specifications

• Power Supply Voltage: Typically 24V DC
• Communication Protocols: Supports various protocols like Modbus, Ethernet/IP, and others for integration into control systems.
• Inputs/Outputs:
  • Analog inputs for voltage and current measurements
  • Digital inputs for status monitoring
  • Relay outputs for control functions
• Data Logging: Capable of logging various electrical parameters such as voltage, current, power factor, energy consumption, etc.
• Display: Often features an LCD for local display of measurements and status.
• Environmental Conditions: Designed to operate in a wide range of temperatures and humidity conditions, making it suitable for industrial environments.

Product Use

The PM861AK01 module is used in various applications, including:

• Energy Management: Monitoring and analyzing energy consumption to identify savings opportunities.
• Preventive Maintenance: Tracking electrical parameters to predict and prevent equipment failures.
• System Integration: Part of larger automation and control systems, enabling seamless data flow and integration with other modules and systems.
• Compliance and Reporting: Assisting in meeting regulatory requirements for energy usage and reporting.

This module plays a crucial role in optimizing energy usage, enhancing system performance, and ensuring reliable operation in industrial settings.
