Description

Product Name:

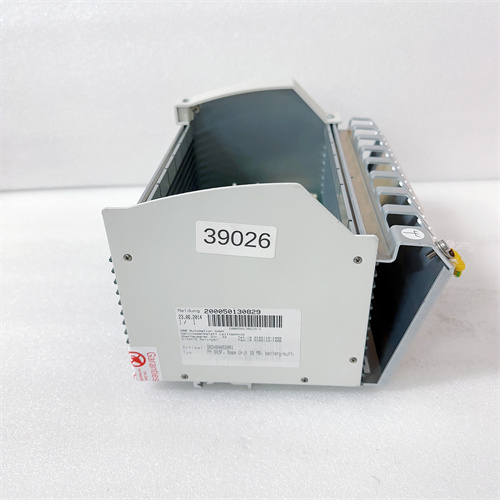

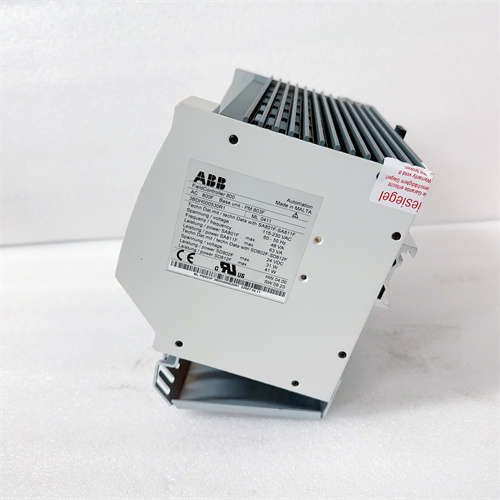

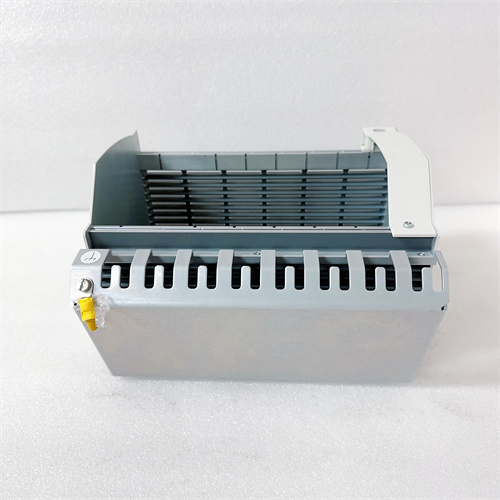

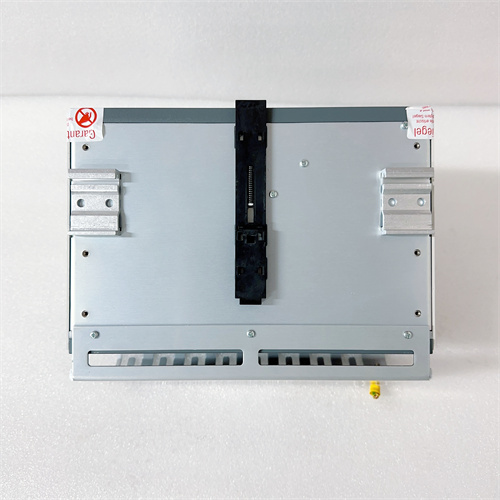

ABB PM803F 3BDH000530R1 Rack

Product Description:

The ABB PM803F 3BDH000530R1 is a high-performance, modular Programmable Logic Controller (PLC) from ABB’s Automation and Control product line. It is a key component in the AC500 series, which is designed for scalable, reliable, and efficient control of industrial automation processes. The PM803F is a high-end CPU that supports advanced control strategies, enabling enhanced process automation across a variety of industries, including manufacturing, energy, and infrastructure.

Product Parameters & Specifications:

• Model: PM803F
• Catalog Number: 3BDH000530R1
• Type: High-performance PLC CPU
• Processor: ARM Cortex-A9
• Power Supply: 24V DC (nominal)
• Mounting Type: Rack-mounted, suitable for modular setups
• Memory:
  • Flash memory for program storage: 128 MB
  • RAM: 512 MB
  • Memory cards: Optional SD card slot for external memory expansion
• Inputs and Outputs:
  • Digital I/O: Configurable
  • Analog I/O: Configurable with optional modules
  • Communication Ports:
    • 2 x Ethernet (for communication with other PLCs or SCADA systems)
    • 1 x USB (for programming and configuration)
    • Serial Ports (RS-232, RS-485) depending on configuration
• Communication Protocols Supported:
  • Modbus TCP/IP
  • Modbus RTU
  • Ethernet/IP
  • OPC UA (for integration with higher-level systems)
  • Profibus DP
• Environmental Conditions:
  • Operating temperature: 0°C to 60°C
  • Storage temperature: -20°C to 70°C
  • Relative humidity: 5% to 95% (non-condensing)
• Rack/Module Configuration:
  • Modular design, allowing users to integrate additional I/O modules and expansion cards to meet specific application needs.
  • Rack-based system to manage larger-scale automation projects.
• Safety:
  • Compliance with industry standards like CE, UL, and CSA.
  • Designed to ensure safe operation in industrial environments.

Product Use:

The ABB PM803F rack-mounted PLC is primarily used in industrial automation systems where advanced control, monitoring, and data processing are required. It is ideal for applications such as:

1. Manufacturing Automation: Used to control machinery and equipment in automated production lines.
2. Energy Management: Controls energy systems for efficient power distribution, renewable energy systems, and grid management.
3. Building Automation: Manages HVAC, lighting, and security systems in large buildings or infrastructure.
4. Process Control: Controls chemical, water treatment, and food processing operations, among other industries requiring precise process management.
5. Industrial IoT (IIoT): The PM803F integrates seamlessly with other IIoT devices and provides connectivity for smart factory solutions.
6. Remote Monitoring & Control: Ideal for applications where remote diagnostics and control are necessary, thanks to its robust communication capabilities and open protocols.
