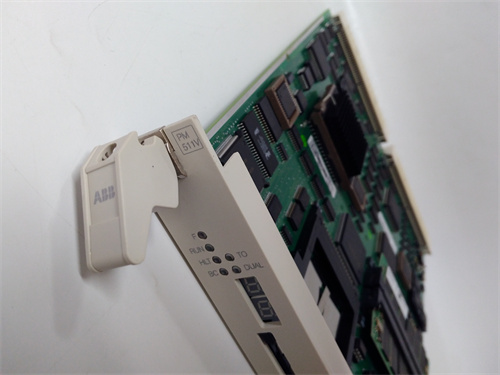

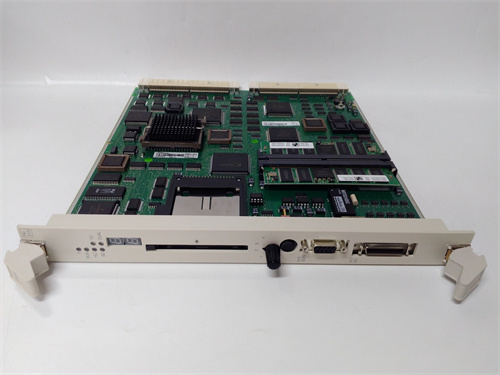

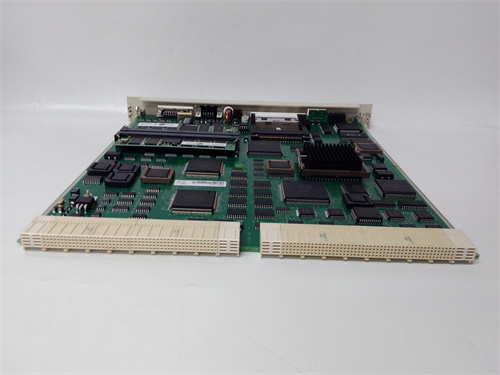

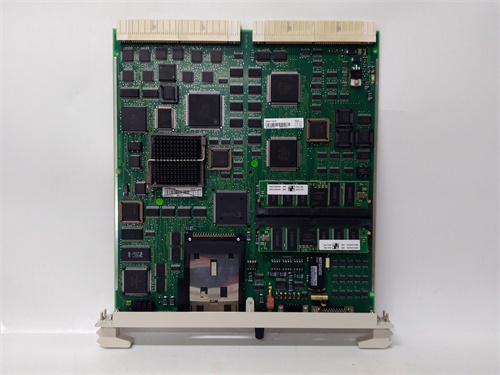

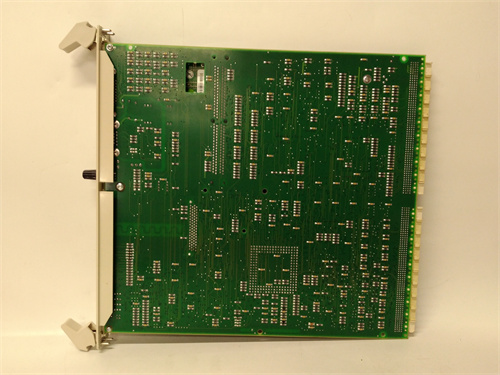

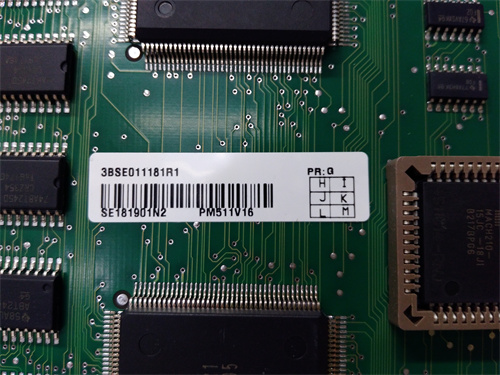

ABB+PM511V16 3BSE011181R1

Description

The ABB PM511V16 (3BSE011181R1) module is part of ABB’s AC500 series of programmable logic controllers (PLCs), designed for industrial automation applications.

**Product Name:**

– ABB PM511V16 (3BSE011181R1)

**Product Description:**

– The PM511V16 module is a digital input/output module that interfaces with the ABB AC500 PLC system. It provides 16 digital inputs and outputs in a compact form factor, suitable for various control tasks in industrial environments.

**Product Parameters:**

– **Type:** Digital Input/Output Module
– **Number of Inputs:** 16
– **Number of Outputs:** 16
– **Voltage Range:** Typically 24V DC (depends on system configuration)
– **Current Rating:** Up to 0.5A per channel
– **Isolation:** Optically isolated
– **Communication:** Integrated with the AC500 PLC via fieldbus (e.g., PROFIBUS, Modbus TCP/IP)
– **Operating Temperature:** -25°C to +55°C (-13°F to +131°F)
– **Storage Temperature:** -40°C to +70°C (-40°F to +158°F)
– **Dimensions:** Compact DIN rail mountable module

**Specifications:**

– **Voltage Supply:** Typically 24V DC (range depends on system setup)
– **Digital Inputs:** 16 channels, configurable as sinking or sourcing inputs
– **Digital Outputs:** 16 channels, configurable as sinking or sourcing outputs
– **Electrical Isolation:** Optically isolated channels for noise immunity and safety
– **Protocol Support:** Compatible with ABB’s AC500 PLC system, supports various fieldbus protocols for communication

**Product Use:**

– The PM511V16 module is used in industrial automation and control systems where digital signals need to be processed and controlled. It interfaces directly with sensors, actuators, and other digital devices to monitor and control processes in manufacturing, energy, infrastructure, and other sectors.

**Applications:**

– Manufacturing automation
– Process control systems
– Building automation
– Energy management
– Infrastructure monitoring and control

This module is part of ABB’s broader AC500 series PLCs, known for their reliability, flexibility, and integration capabilities in industrial automation projects.

ABB+PM511V16 3BSE011181R1
