Description

Product Name:

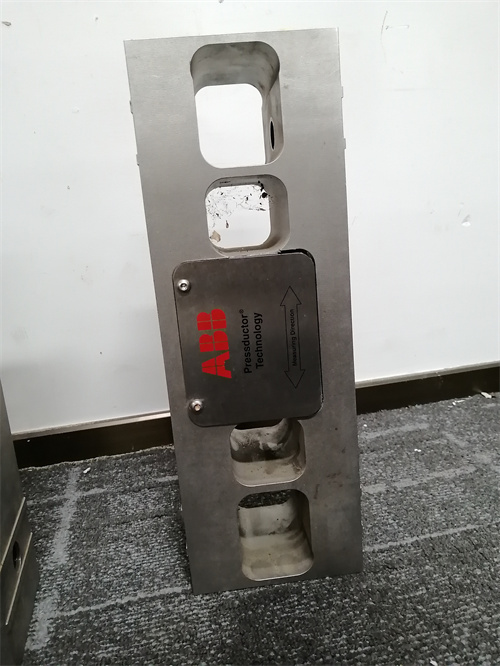

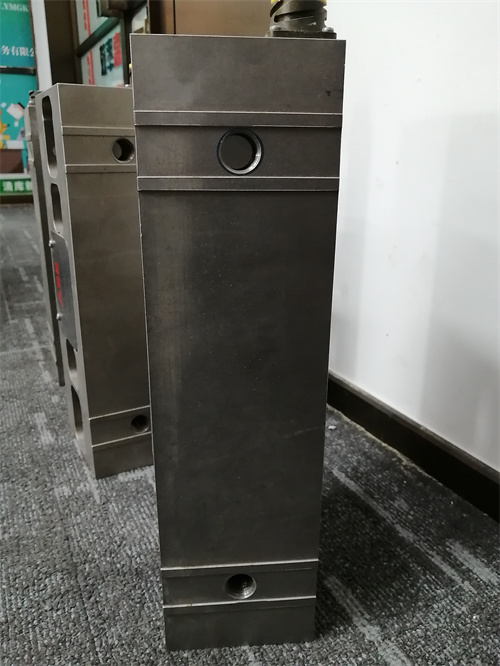

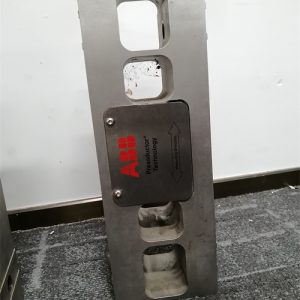

ABB PFTL101B 2.0kN Controller

Product Description:

The ABB PFTL101B 2.0kN Controller is a highly specialized electronic controller designed for precise force measurement and control in various industrial automation applications. It features robust performance for controlling and monitoring systems that require force feedback, such as automated assembly lines, material testing machines, and other precision measurement systems. The controller is designed to work seamlessly with ABB’s force sensors and actuators to provide accurate and reliable force measurement in dynamic environments.

Product Parameters:

• Force Capacity: 2.0 kN (kilonewtons)
• Input Type: Compatible with force sensors, load cells, and actuators
• Output: Digital (e.g., communication via Modbus, Ethernet)
• Signal Processing: High-speed signal acquisition and processing
• Control Mode: Closed-loop feedback control for force regulation
• Power Supply: 24V DC (direct current)
• Operating Temperature: Typically -10°C to +50°C
• Connectivity: Supports standard industrial communication protocols for integration with other systems
• Mounting: Designed for panel or DIN rail mounting
• Display: Available with external display (optional)
• Response Time: Fast response time for real-time force measurement and adjustments

Specifications:

• Force Measurement Range: 0 – 2.0 kN
• Accuracy: ±0.5% of full-scale force measurement
• Resolution: High resolution for precise force readings (typically 0.1 N)
• Communication Interfaces: RS-485, Modbus, Ethernet/IP (depends on model variant)
• Safety Compliance: CE certified, UL listed for industrial safety standards
• Power Consumption: Typically < 15W
• Housing: Industrial-grade enclosure with IP20/IP65 options for protection against dust and water ingress
• Mounting Type: DIN rail or panel mounting
• Data Logging: Built-in data logging capability for force measurement history (optional)
• Environmental Protection: Designed for industrial environments with high levels of vibration, dust, and temperature fluctuations

Product Use:

The ABB PFTL101B 2.0kN Controller is primarily used in applications where precise force measurement and control are essential. Typical use cases include:

1. Automated Manufacturing and Assembly:
   • For controlling the application of force in tasks such as press fitting, joining, or tightening during automated assembly processes.
2. Material Testing:
   • Used in laboratories and testing facilities for applications that require precise force measurement, such as tensile testing, compression testing, or fatigue testing.
3. Robotics and Automation:
   • Integrated into robotic systems that require accurate force feedback, allowing for better precision in gripping or handling materials.
4. Quality Control:
   • Ensures that the correct force is applied during manufacturing processes to meet quality control standards.
5. Industrial Automation:
   • Can be used in combination with ABB’s force sensors or other load cells for force monitoring in large-scale industrial automation systems.
6. Measurement & Calibration Systems:
   • In systems that require consistent, accurate force measurement for calibration and monitoring purposes.
