ABB+PFTL101A 1.0KN 3BSE004166R1

Description

Product Name:

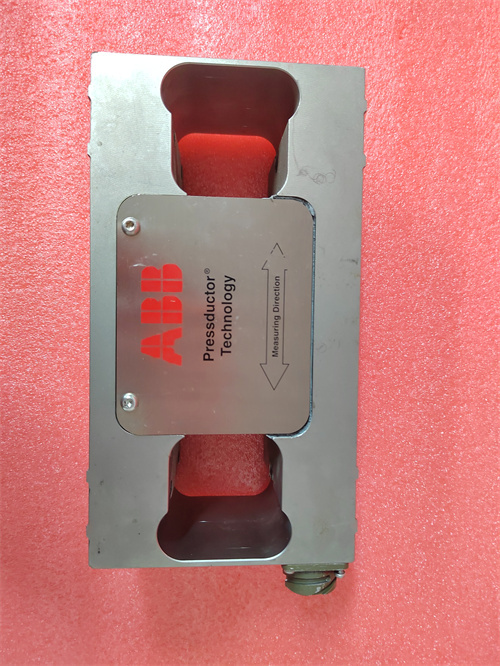

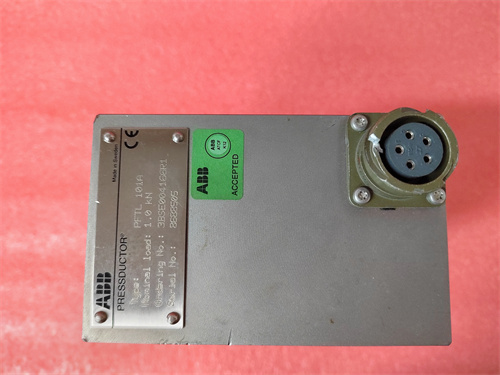

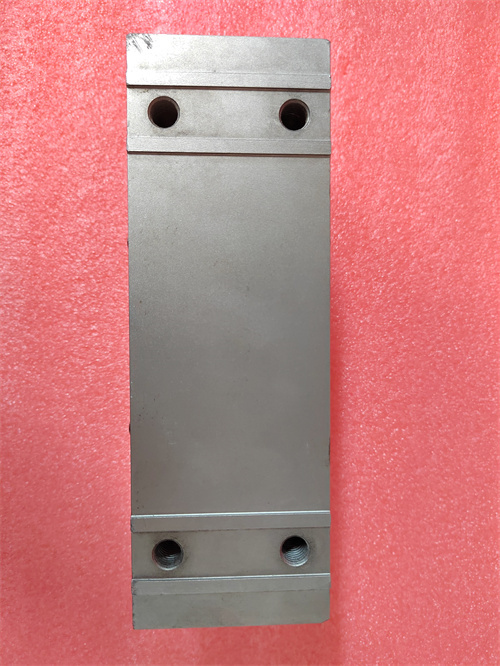

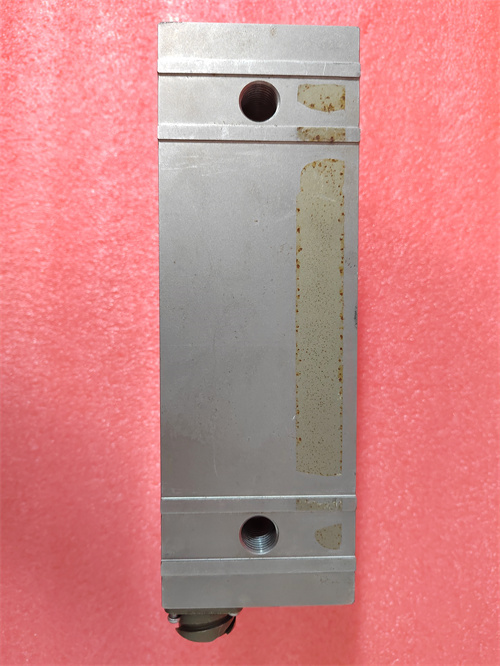

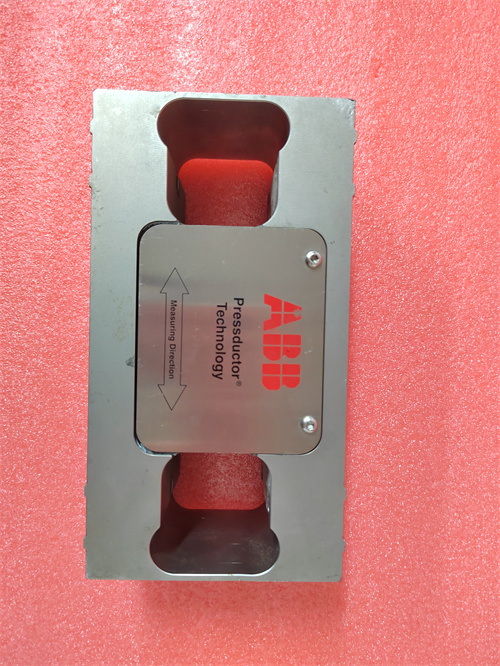

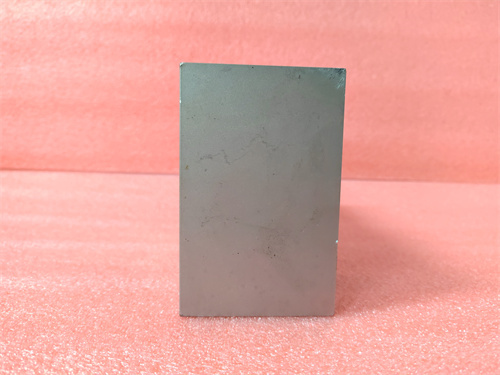

ABB+PFTL101A 1.0KN 3BSE004166R1 Controller

Product Description:

The ABB PFTL101A 1.0 kN Controller is an industrial control unit designed for precise measurement and control in applications requiring load cell integration. It is primarily used in force measurement and monitoring systems where force or load values need to be accurately captured, displayed, and controlled in real-time. This controller is highly reliable, ensuring optimal performance in demanding environments.

The PFTL101A model offers a 1.0 kN (kilonewton) force measurement range and integrates seamlessly with other ABB automation and control equipment. It is suitable for both static and dynamic force applications, and it delivers advanced features for process control, diagnostics, and reporting. The product is designed with ruggedness and ease of integration in mind, making it ideal for industrial applications such as manufacturing, packaging, and automation systems.

Product Parameters & Specifications:

• Force Measurement Range: 0 to 1.0 kN
• Control Type: Digital load cell controller
• Input Type: Load cell (typically with Wheatstone bridge configuration)
• Signal Processing: Analog-to-digital conversion for precise measurement
• Output: Standardized output signals (e.g., analog, digital, or via communication protocols like Modbus or Profibus)
• Accuracy: High accuracy in force measurement with minimal drift over time
• Signal Conditioning: Integrated signal conditioning for load cell calibration and compensation
• Communication Interface: Typically includes RS-232, RS-485, or other industrial communication protocols for integration with SCADA or PLC systems
• Power Supply: 24 V DC (Standard for most industrial controllers)
• Operating Temperature Range: Typically -10°C to 60°C (consult manual for exact range)
• Dimensions: Compact design, typically for DIN rail or panel mounting
• Enclosure: IP20 (for protection against solid objects larger than 12mm)
• Compliance: CE certified, RoHS compliant

Product Use:

The ABB PFTL101A 1.0 kN Controller is ideal for applications where precise force or load measurement is critical. Some of its common uses include:

1. Material Testing: For measuring and controlling the forces applied during the testing of materials, such as tensile, compression, or shear tests.
2. Assembly Line Automation: For force-controlled assembly or testing of products on an automated production line, where precise force application is needed.
3. Weighing Systems: Used in industrial weighing applications to measure and control the weight of products during production, packaging, or material handling.
4. Load Monitoring: Monitoring the load on equipment to ensure safety and prevent overloading in industrial processes.
5. Robotics: Force feedback control in robotic systems where force sensing is necessary to protect equipment or enhance operational precision.
6. Hydraulic or Pneumatic Systems: To monitor and control the pressure exerted by these systems, using force as a measurement of output.
