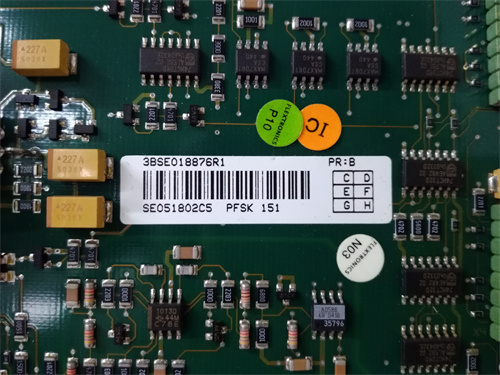

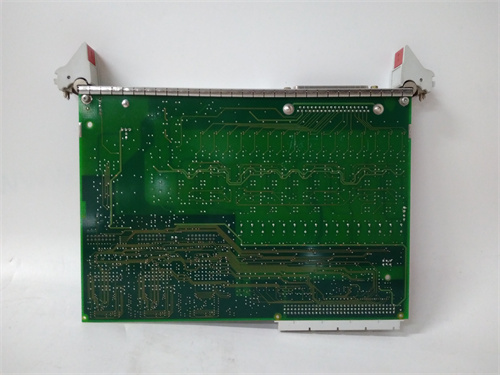

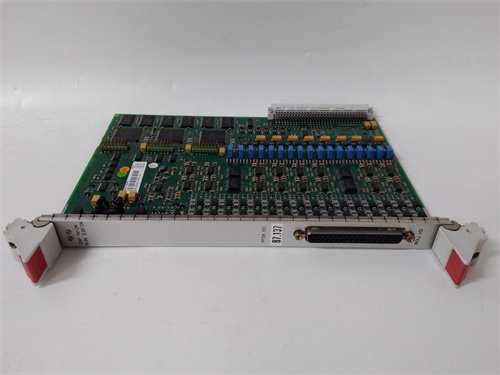

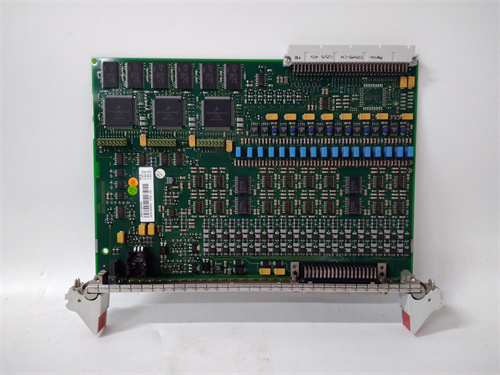

ABB+PFSK151 3BSE018876R1

Description

The ABB+PFSK151 3BSE018876R1 is a part of ABB’s automation product family, specifically within the domain of Programmable Field Systems (PFS) or Fieldbus I/O systems.

Product Name:

ABB PFSK151 3BSE018876R1

Product Description:

The PFSK151 is a module used within ABB’s automation and control systems, typically in process industries or industrial automation applications. It is designed as a communication module or fieldbus module that facilitates the interaction between different parts of an automation system, such as controllers, sensors, and actuators, using industrial communication protocols (likely Profibus or Modbus in some cases). It helps extend the capabilities of the ABB control systems by offering digital/analog I/O communication and signal processing.

This module is part of ABB’s larger family of modular and flexible I/O systems, which are key components in scalable automation systems.

Product Parameters and Specifications:

The specific technical parameters for the PFSK151 3BSE018876R1 module are as follows (note: these are general specifications, so please verify against the official documentation):

• Part Number: 3BSE018876R1
• Type: Fieldbus communication module
• Bus Interface: Profibus DP, Modbus, or other industrial communication protocols (subject to configuration)
• Input Types:
  • Digital Inputs (DI)
  • Analog Inputs (AI)
• Output Types:
  • Digital Outputs (DO)
  • Analog Outputs (AO)
• Supply Voltage: 24V DC (or specified in the documentation)
• Power Consumption: Typically around 1-2W (depending on configuration)
• Input/Output Range:
  • Digital inputs/outputs typically range from 24V DC
  • Analog inputs/outputs may support ranges like 0-10V or 4-20mA (depending on configuration)
• Communication Speed: Varies with fieldbus communication (typically ranges from 9.6 Kbps to 12 Mbps for Profibus)
• Mounting Type: DIN rail mounting
• Operating Temperature: Typically between 0°C to 60°C
• Environmental Protection: IP20 or IP67 depending on enclosure and configuration

Product Use:

The ABB PFSK151 module is generally used for:

1. Field Communication: It serves as an interface between the process automation controller and field devices (such as sensors, actuators, and transmitters) using industrial communication protocols like Profibus or Modbus.
2. Signal Processing and Data Acquisition: It helps gather data from field instruments and transmit it to the central control system or vice versa for controlling the processes.
3. Distributed I/O Solutions: Ideal for large, distributed systems where the need for remote communication between devices is essential, especially in industries like process control, oil and gas, water treatment, manufacturing, and other industrial automation fields.
4. Flexible Integration: With modular I/O and communication interfaces, the module can be integrated into larger systems such as ABB 800xA or S+Control for complete automation and process management solutions.
5. Scalable Automation Solutions: The module is commonly used in applications that require scalability in I/O capabilities without compromising on performance.

Key Features:

• Modular and Scalable: Easily scalable to meet the needs of both small and large installations.
• Flexible Communication: It supports different communication protocols, ensuring compatibility with a wide range of ABB automation systems.
• Ease of Integration: Allows easy integration of field devices into the broader control system.
• Reliability: Designed for harsh industrial environments, ensuring robustness and longevity in operation.

ABB+PFSK151 3BSE018876R1
