Description
The ABB PFEA113-20 and PFEA113-65 are tension controllers used in various industrial applications where precise web tension control is crucial. They are part of ABB’s web tension measurement product line.
Product Name:

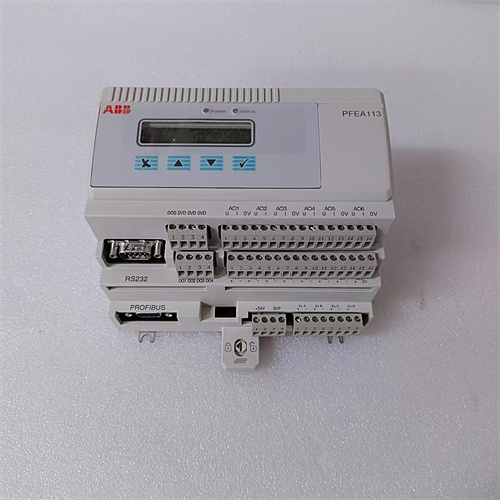

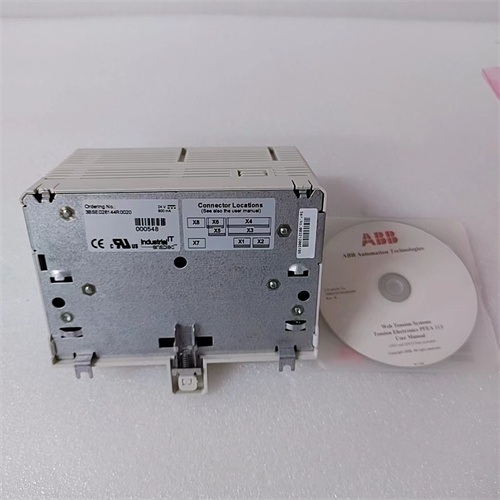

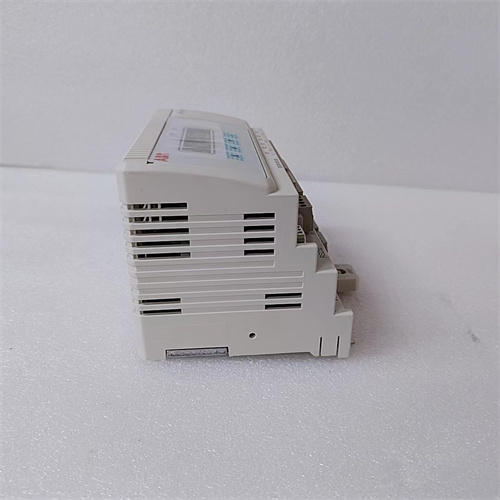

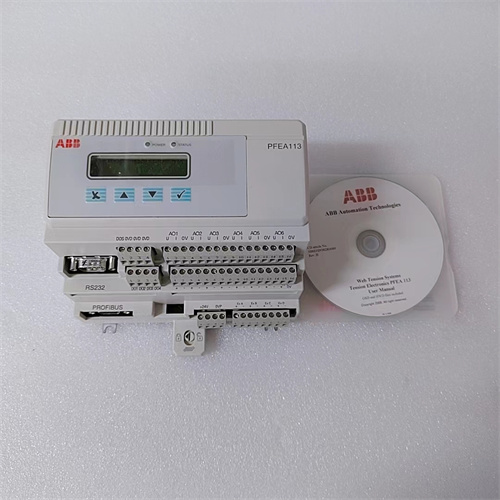

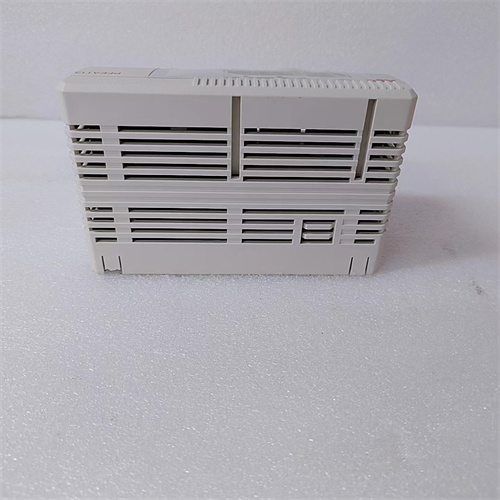

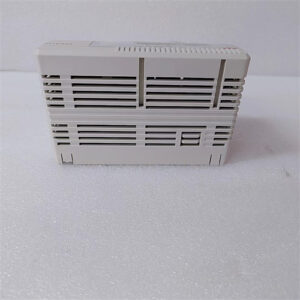

ABB PFEA113-20/PFEA113-65 Tension Controller
Product Description:
- These controllers are designed to measure and control the tension of a moving web of material (e.g., paper, film, foil, textiles) in processes like printing, converting, and coating.
- They work in conjunction with load cells that measure the force exerted by the web. The controller processes this signal and provides outputs to control actuators (e.g., brakes, motors) to maintain the desired tension.
- The key difference between the PFEA113-20 and PFEA113-65 lies in their power supply options:
- PFEA113-20: 24 VDC power supply
- PFEA113-65: 100-240 VAC power supply
Product Parameters and Specifications (General for both, with power supply difference noted):
- Inputs:
- 4 load cell inputs
- 1 digital input (for remote zero or gain scheduling)
- 2 analog inputs (for connecting multiple PFEA113 units)
- Outputs:
- 6 analog outputs (selectable voltage or current)
- 4 digital outputs (for status and level detectors)
- Power Supply:
- PFEA113-20: 24 VDC (18-36 VDC)
- PFEA113-65: 100-240 VAC (100 (-15%) – 240 (+10%) VAC), 45-65 Hz
- Load Cell Excitation: 0.5 A rms, 330 Hz
- Max. Load: 4 load cells plus 10 Ω cable resistance
- Analog Output Options:
- -5 to +11V (max. load 5 mA)
- 0 to 21 mA (max. load 550 Ω)
- Filter: Selectable filter with adjustable step response (5, 15, 30, 75, 250, 750, 1500 ms)
- Scaling Function: Yes, for analog outputs
- Display: Multi-language interactive display
- Tension Units: Selectable units (N, kN, kg, lbs, N/m, kN/m, kg/m, pli)
- Memory: Maximum load memory and zero offset memory
- Communication:
- PROFIBUS DP (GSD file ABB_0717.GSD)
- Environmental Tolerance:
- Ambient temperature: +5 to +55°C
- Degree of protection: IP20 or IP65 (depending on the housing)
- Compliance: EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, UL508
Product Use:
The PFEA113 controllers are used to:
- Measure Web Tension: Receive signals from load cells that measure the force exerted by the moving web.
- Control Web Tension: Process the load cell signals and provide output signals to control actuators that adjust the web tension.
- Maintain Consistent Product Quality: Ensure consistent web tension to prevent defects and maintain product quality.
- Optimize Production Processes: Improve efficiency and reduce waste by maintaining precise tension control.
Applications:
- Printing Presses
- Converting Machines (e.g., slitting, rewinding, laminating)
- Coating Machines
- Textile Machines
- Paper Machines
- Other Web Handling Applications
Key Features and Benefits:
- Precise Tension Control: Provides accurate and reliable tension control for various web materials.
- Versatile Inputs and Outputs: Offers flexibility for connecting various sensors and actuators.
- User-Friendly Interface: Features a multi-language interactive display for easy setup and operation.
- Robust and Reliable: Designed for industrial environments.
- Communication Options: Supports PROFIBUS DP for integration into automation systems.
