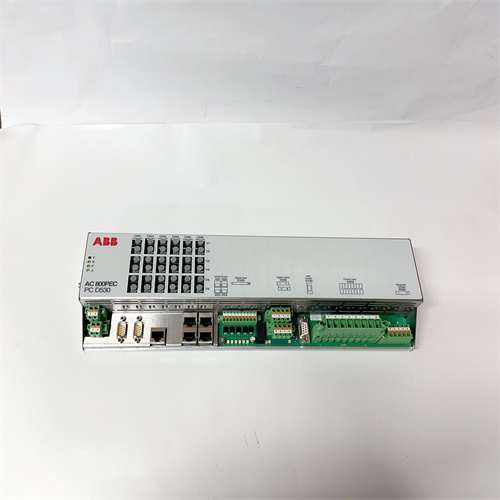

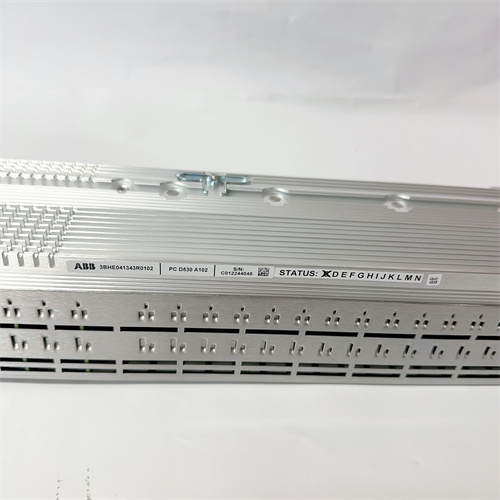

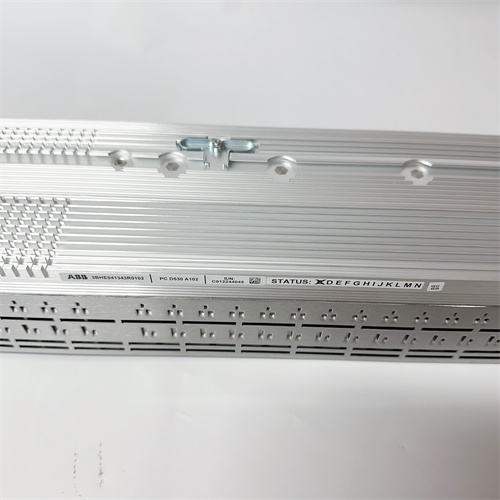

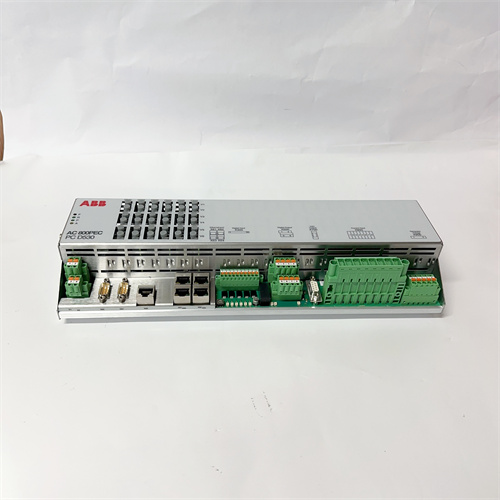

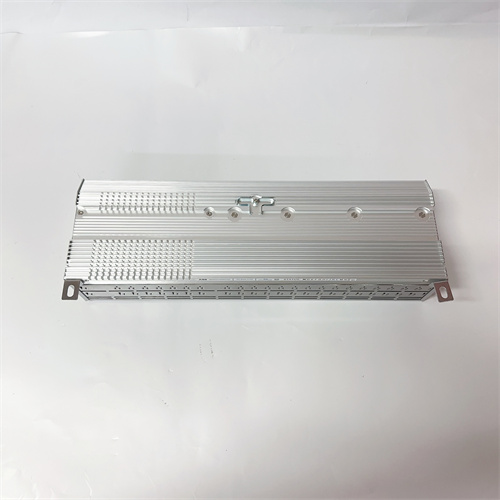

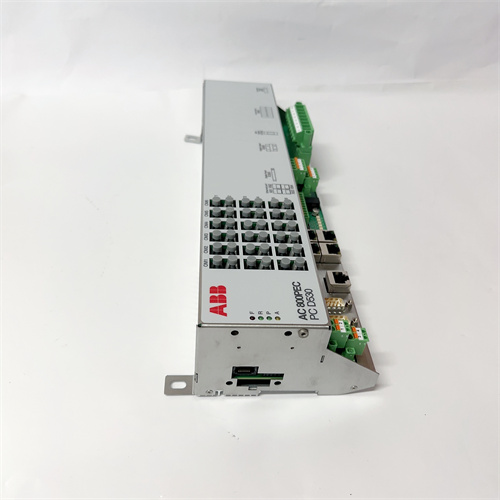

ABB+PCD530A102 3BHE041343R0102

Description

The ABB PCD530A102 module is part of ABB’s AC500 family of programmable logic controllers (PLCs).

### Product Name:

**ABB PCD530A102**

### Product Description:

The PCD530A102 is a digital input module designed for use with ABB’s AC500 PLC series. This module serves as an interface between digital input signals (from sensors, switches, or other devices) and the PLC’s processing unit, allowing for monitoring and control applications in industrial settings.

### Product Parameters:

– **Type**: Digital Input Module
– **Number of Inputs**: 32 digital inputs
– **Input Voltage Range**: Typically supports 24V DC
– **Input Current**: Depends on the specific sensors used, but standard ratings apply.
– **Isolation**: Opto-isolated inputs for signal integrity and safety.
– **Response Time**: Generally in the range of milliseconds.
– **Mounting Type**: DIN rail mountable.
– **Communication Interface**: Compatible with the AC500 series communication protocols.

### Specifications:

– **Operating Temperature Range**: Typically -20°C to +60°C (varies by specific series).
– **Storage Temperature**: Typically -40°C to +85°C.
– **Relative Humidity**: Up to 95%, non-condensing.
– **Dimensions**: Usually compact, fitting within standard enclosure sizes for PLCs.
– **Weight**: Lightweight for ease of installation.

### Product Use:

The ABB PCD530A102 module is widely used in a variety of industrial applications, including:

– **Factory Automation**: Monitoring of machinery and processes through sensors.
– **Building Automation**: Control systems for HVAC, lighting, and security.
– **Water Treatment**: Management of pumps and valves through input signals.
– **Oil & Gas**: Monitoring and control of equipment in processing plants.
– **Pharmaceuticals**: Ensuring compliance with stringent process controls.

### Summary:

The ABB PCD530A102 digital input module is a crucial component within the AC500 PLC system, enabling the integration and management of digital signals from various devices in industrial environments. Its robust specifications and broad application scope make it suitable for various automation tasks.

ABB+PCD530A102 3BHE041343R0102
