Description

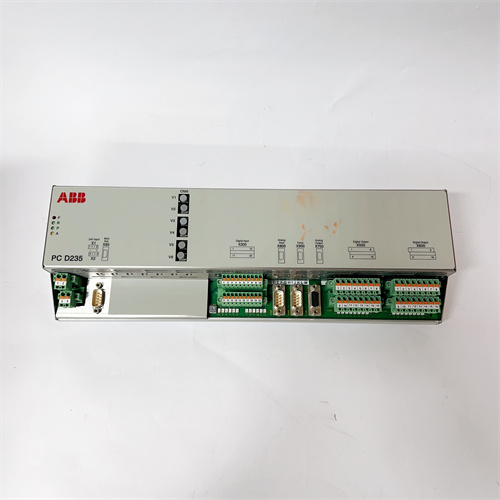

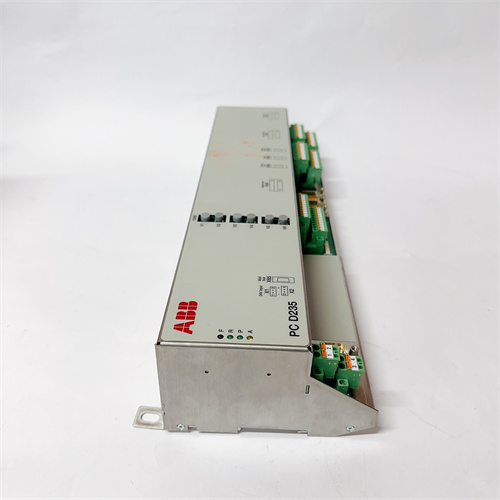

The ABB PCD235A101 is a programmable controller, part of ABB’s Programmable Controller (PCD) series. It is designed for control, monitoring, and automation applications in various industries.

Product Name:

ABB PCD235A101 – Programmable Controller

Product Description:

The ABB PCD235A101 is a highly flexible and compact programmable controller designed for automation and control applications. It features a robust design and offers a wide range of I/O modules, communication options, and powerful processing capabilities. The PCD controllers are suited for applications in areas such as industrial automation, building automation, energy management, and other sectors requiring high-performance control systems.

The PCD235A101 model is designed for small to medium-sized applications, offering ease of integration and programmability while maintaining high reliability and performance. It supports various communication protocols and has built-in expansion options for flexibility in system design.

Product Parameters and Specifications:

• Processor:
  • CPU: 32-bit microprocessor
  • Memory: 128 MB RAM (typically)
  • Flash memory for storing user programs
  • High-speed execution for real-time control tasks
• Input/Output:
  • Digital and analog I/O capabilities
  • Multiple I/O module support for system expansion
  • Support for various field devices and sensors
• Communication:
  • Support for various communication protocols (such as Modbus, CAN, Ethernet)
  • Built-in serial ports (RS232/RS485)
  • Ethernet for remote communication, monitoring, and control
  • Optional expansion modules for additional communication ports
• Programming:
  • Programmable using ABB’s proprietary or standard IEC 61131-3 languages (Ladder, FBD, Structured Text, etc.)
  • PC-based programming with the ABB Automation Builder or Control Builder software
  • Support for graphical programming and simulation tools
• Power Supply:
  • Wide input voltage range (usually between 24VDC to 230VAC, depending on configuration)
  • Power consumption: low, to suit energy-efficient applications
• Expansion:
  • Expandable with additional I/O modules
  • Scalable with optional communication interfaces
• Physical:
  • Compact, rugged design suitable for industrial environments
  • DIN rail or panel mounting options for easy integration in control cabinets
  • LED indicators for status monitoring
• Environmental:
  • Operating temperature range: typically 0°C to 55°C
  • Wide operating humidity range
  • Shock and vibration resistance for harsh environments

Product Use:

• Industrial Automation:
  • Control and automation of manufacturing processes, machinery, and production lines.
  • Used in factory automation, robotic systems, and material handling.
• Building Automation:
  • HVAC (heating, ventilation, and air conditioning) control.
  • Lighting control, access systems, and energy management.
• Energy Management:
  • Monitoring and control of energy consumption in industrial plants, buildings, and facilities.
  • Integration with renewable energy systems, such as solar panels or wind turbines.
• Process Control:
  • Monitoring and controlling complex processes in industries like chemical, food processing, water treatment, etc.
• Remote Monitoring and Control:
  • Remote access and control for industrial systems through communication networks like Ethernet.
• OEM Solutions:
  • Used by original equipment manufacturers (OEMs) for creating custom automation solutions.
