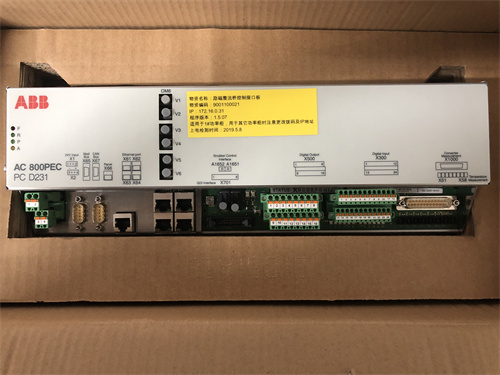

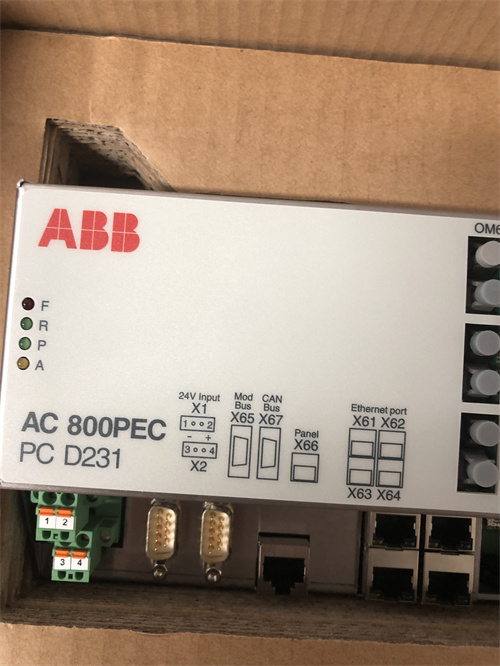

ABB+PCD231B101

Description

The ABB PCD231B101 is a controller typically used in industrial automation and control systems. This specific model is part of ABB’s PCD (Programmable Control Devices) series, which are known for their flexibility, reliability, and versatility in controlling complex industrial processes.

Product Name:

ABB PCD231B101

Product Description:

The ABB PCD231B101 is a programmable logic controller (PLC) designed for a wide range of industrial automation tasks. It is built with modular hardware and is equipped with a range of communication and I/O options, making it suitable for both simple and highly complex control applications. This controller features advanced programming capabilities, robust processing power, and integration support for various field devices and communication protocols. The PCD231B101 is particularly designed for tasks that require a high level of precision, scalability, and integration within larger control systems.

Product Parameters:

• Model Number: PCD231B101
• Manufacturer: ABB (Asea Brown Boveri)
• Type: Programmable Controller (PLC)
• Power Supply: 24V DC (Typical)
• Processor Type: 32-bit microprocessor
• Communication Interfaces: Supports various communication protocols (e.g., Modbus, Profibus, CANopen, Ethernet, etc.)
• I/O Expansion: Supports modular I/O expansion
• Memory: Offers a range of memory configurations (RAM, Flash, etc.) depending on the specific model or application.
• Operating Temperature: Typically 0°C to 60°C
• Mounting: Designed for DIN rail mounting or panel mounting
• Enclosure: Standard IP20 rating (basic level of protection)
• Input Voltage: Usually 24V DC, but check the exact specifications for different variants.
• Digital Inputs/Outputs: Configurable I/O options based on the specific requirements.
• Analog Inputs/Outputs: Optional, depending on configuration.

Specifications:

• Input Power: 24V DC, typically with an input current requirement based on load and connected devices.
• Processing Speed: Dependent on the model and configuration (can range from several MHz to higher performance configurations).
• Data Memory: Flash memory (storage for programs) and RAM (temporary data).
• Number of I/O Points: Scalable depending on configuration; can range from tens to hundreds of I/O points.
• Programming Language: Supports IEC 61131-3 programming languages (Ladder Diagram (LD), Structured Text (ST), Function Block Diagram (FBD), and others).
• Interfaces:
  • Serial communication (RS-232/RS-485)
  • Ethernet port for networking and remote control
  • Optional CAN or Profibus for fieldbus communication
• Expansion Options: Supports I/O modules, communication modules, and special function modules.

Product Use:

The ABB PCD231B101 controller is used in a variety of industrial applications, including:

• Automation Systems: Used to automate processes in industries such as manufacturing, chemical, water treatment, energy management, and HVAC systems.
• Process Control: Applied in controlling and monitoring production processes, machinery, and equipment.
• Building Automation: Can be integrated into building management systems for lighting, heating, and air conditioning control.
• Machine Control: Ideal for controlling the operation of machinery in manufacturing plants, including assembly lines and robotic systems.
• Energy Management: Used in industrial energy control systems to monitor and optimize energy usage.
• Environmental Control Systems: Ideal for monitoring and controlling parameters such as temperature, humidity, and airflow in critical environments like laboratories or production areas.

Applications & Industries:

• Manufacturing
• Water and Wastewater Treatment
• Building Automation
• Energy & Utilities
• Pharmaceutical and Food Processing Industries
• Packaging and Material Handling
