Description

Product Name:

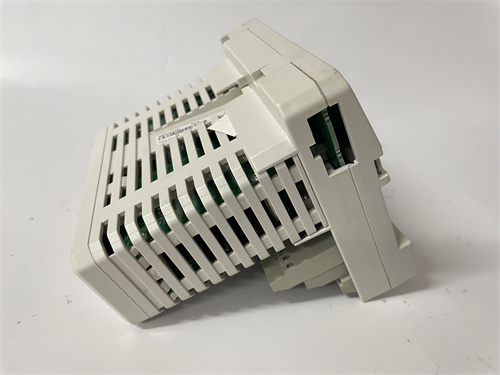

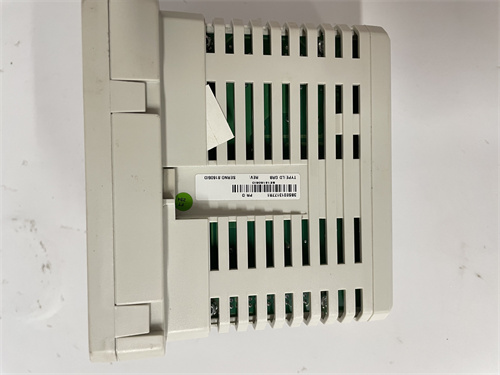

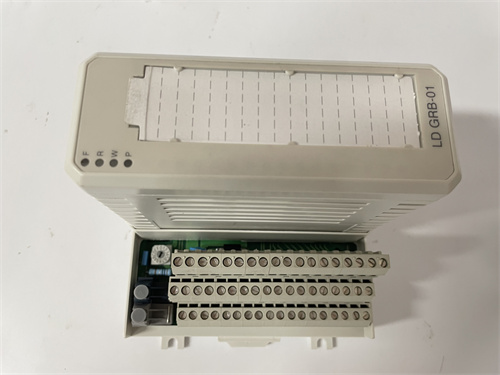

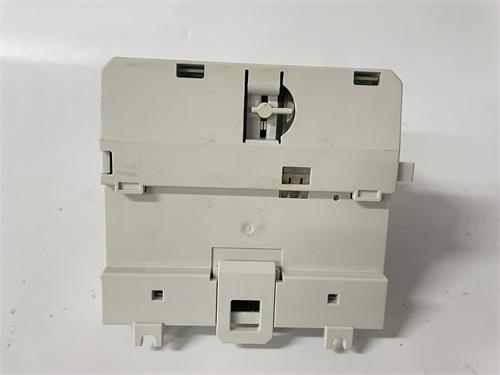

ABB LDGRB-01 3BSE013177R1 I/O Module

Product Description:

The LDGRB-01 is a Digital Input/Output (I/O) module, typically designed for use in ABB’s industrial automation and control systems. It is part of ABB’s 800xA Control System, providing the interface between field devices (such as sensors and actuators) and the control system.

This module allows for the integration of digital signals into a control system, enabling the monitoring and controlling of various processes. It features high reliability, is built for industrial environments, and supports high-speed communication with other devices in the system.

Product Parameters and Specifications:

• Module Type: Digital I/O
• Part Number: 3BSE013177R1
• Manufacturer: ABB
• Communication Protocol: Typically, this module would communicate with other devices using standard industrial protocols like Modbus, Ethernet/IP, or PROFIBUS (depending on the configuration).
• Input/Output Channels: The LDGRB-01 module may support both discrete digital inputs and outputs.
• Input Type: Digital (on/off signals)
• Output Type: Digital (on/off signals)
• Power Supply: Typically 24V DC or as specified in the module documentation.
• Mounting Type: DIN rail or other standard industrial mounting methods.
• Operating Temperature Range: Typically, modules like this are designed to operate in the range of -20°C to 60°C (check the exact datasheet for the precise range).
• Protection Rating: IP20 or IP65, depending on the module’s design (check the datasheet for the specific module version).
• Diagnostic Functions: Often includes built-in diagnostic LEDs to provide status information.
• Connector Type: Screw terminals, depending on the model version.

Product Use:

The ABB LDGRB-01 I/O module is primarily used in industrial automation and control systems, specifically for:

1. Signal Conversion: It converts field device signals (e.g., from sensors, switches, or actuators) into signals that can be processed by the control system.
2. Process Control: The module helps with controlling discrete processes, such as on/off switching in manufacturing, production, or energy management.
3. Monitoring & Feedback: Provides feedback from field devices to the control system, such as the status of machines or processes.
4. Safety & Reliability: Used in applications where reliability and safety are critical, ensuring robust operation in harsh environments.

Typical Industries where it is used:

• Manufacturing Automation
• Oil and Gas
• Energy
• Chemicals and Pharmaceuticals
• Food & Beverage Processing

This I/O module forms an integral part of an industrial control system by facilitating the interface between the control equipment and field devices. It can be integrated with other ABB automation products for full system integration and process optimization.
