ABB+KSD211B

Description

Product Name:

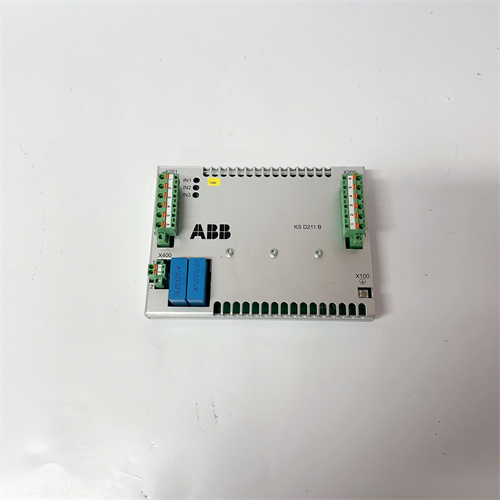

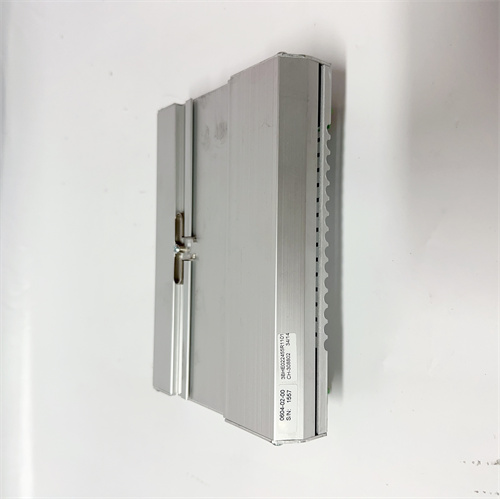

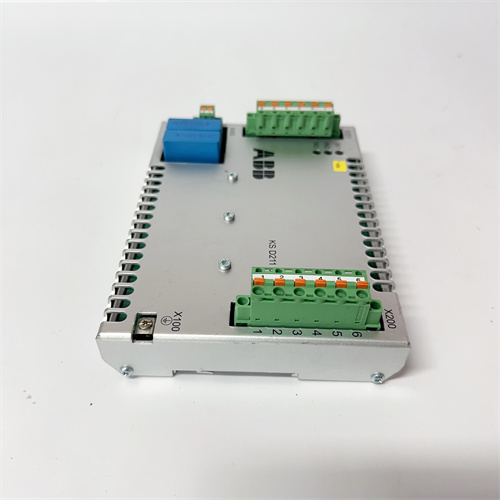

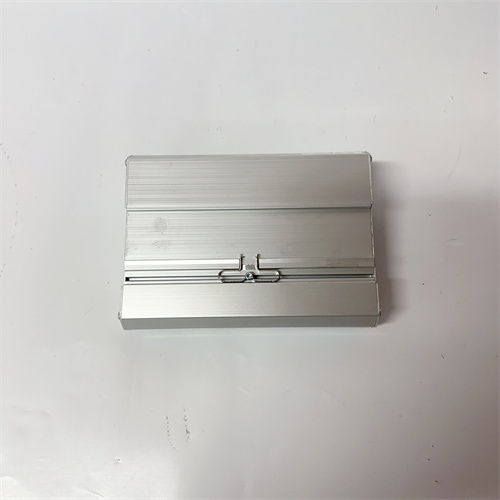

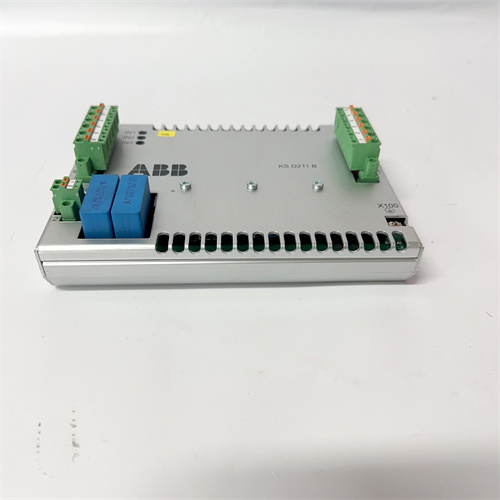

• ABB KSD211B – 2.5kW/3.7kW (inverter module)

Product Description:

The ABB KSD211B is a part of the ABB KSD series, which is designed to control and regulate the speed of motors in a variety of industrial applications. This model offers integrated control, high reliability, and adaptability to a range of settings, especially in systems requiring precise motor management. It provides energy efficiency and performance optimization, making it ideal for industries such as HVAC, pumps, conveyors, and general machinery.

Product Parameters & Specifications:

• Model: KSD211B
• Power Rating:
  • 2.5kW (at 220V)
  • 3.7kW (at 380V)
• Input Voltage:
  • 380–480V AC (3-phase)
• Output Voltage:
  • Adjustable output based on the application and motor configuration
• Frequency Range:
  • 0–400 Hz (adjustable depending on the motor’s specifications)
• Control Method:
  • Vector control for high performance, especially in variable load conditions
• Control Input:
  • Digital and analog control inputs (e.g., 0-10V, relay, and Modbus communication)
• Overload Capacity:
  • 150% for 60 seconds
• Enclosure Rating:
  • IP20 (for indoor installations)
• Cooling:
  • Natural convection or forced air (depending on power size and application)
• Display and Interface:
  • LED or LCD-based display
  • Multiple programming keys
• Communication Interface:
  • Modbus RTU, and other optional communication protocols available
• Dimensions (H x W x D):
  • Varies by the model; typically compact design for integration into control panels
• Weight:
  • Approx. 2.5 to 3.5 kg depending on model size

Product Use:

The ABB KSD211B inverter module is primarily used for:

1. Motor Speed Control: It allows for precise control over motor speeds, optimizing the performance of machinery such as pumps, fans, HVAC systems, and conveyors.
2. Energy Efficiency: The drive can adjust motor speed according to the load, leading to reduced energy consumption compared to traditional methods that run motors at full speed at all times.
3. Process Automation: Integrated with other automation systems via Modbus or other protocols, the module supports complex industrial processes, allowing for easy integration into modern PLC-controlled systems.
4. Flexible Applications: The module is used in various industries such as water treatment, food processing, material handling, and packaging due to its adaptability and performance features.
5. Protection Features: Includes built-in protection for overcurrent, overvoltage, under-voltage, over-temperature, and motor fault detection.
