Description

Product Name

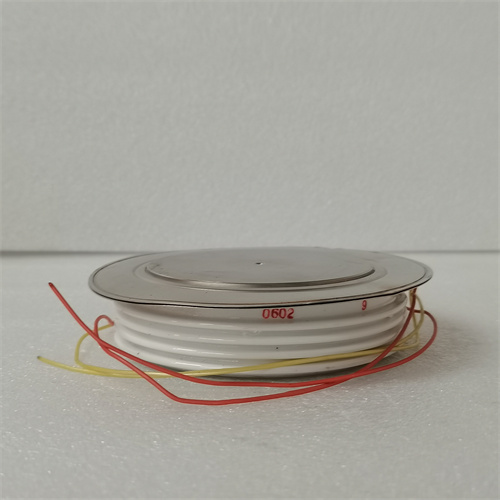

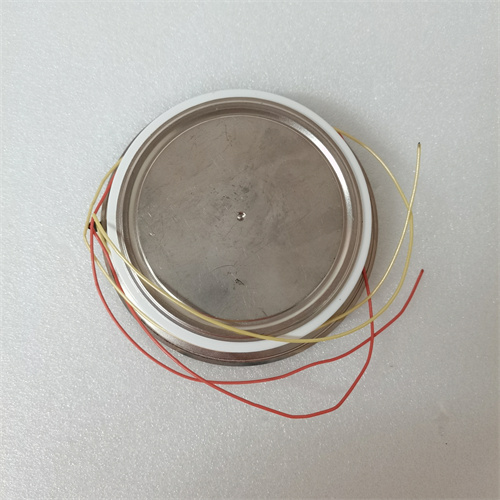

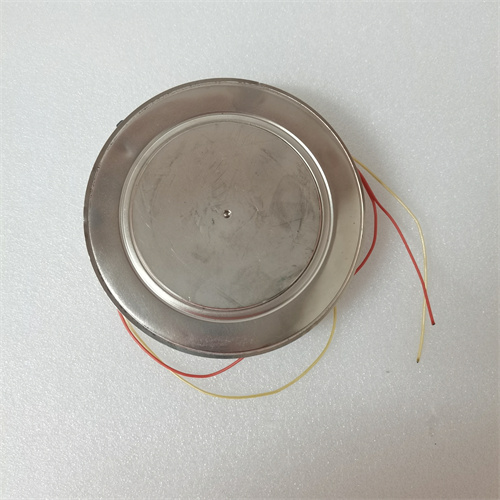

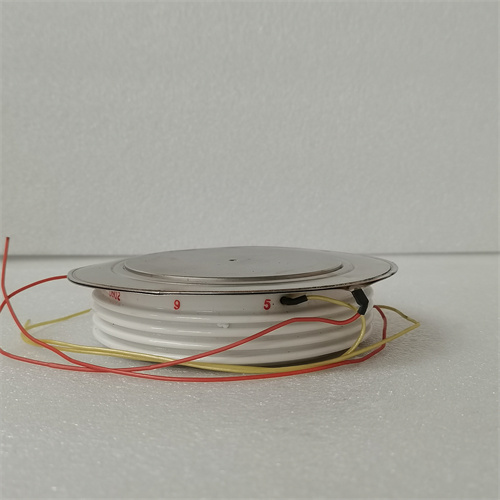

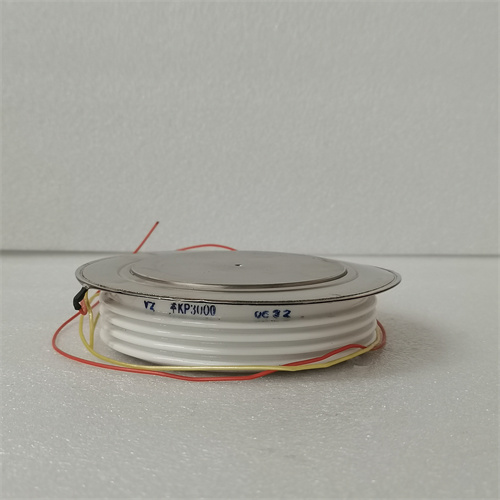

ABB KP2500 / KP3000 SCR

Product Description

The ABB KP2500 and KP3000 are high-performance Silicon-Controlled Rectifiers (SCR) designed for various industrial applications such as power control, motor control, and electrical systems operations. These devices are vital for converting alternating current (AC) to direct current (DC) and for controlling power in different industrial equipment.

Product Parameters

• Type: SCR (Silicon-Controlled Rectifier)
• Current Ratings:
  • KP2500: Up to 2500A
  • KP3000: Up to 3000A
• Voltage Ratings:
  • KP2500: Up to 1800V
  • KP3000: Up to 1800V
• Temperature Range: -40°C to +125°C
• Surge Current Rating: Defined by the specific application (Refer to datasheets for details)
• Package Type: Typically in various configurations such as modules or components for circuit integration.

Specifications

1. Electrical Characteristics:
   • Forward Voltage Drop
   • Reverse Blocking Voltage
   • On-state Current
   • Gate Trigger Current (Igt)
2. Thermal Characteristics:
   • Thermal Resistance
   • Maximum Junction Temperature
3. Mechanical Characteristics:
   • Mounting Type (e.g., chassis mount)
   • Weight and dimensions (specific to the model)
4. Safety Standards:
   • Compliance with international safety and environmental regulations

Product Use

The ABB KP2500 and KP3000 SCR devices are utilized in a variety of applications, including but not limited to:

• Industrial Motor Control: Used in systems that require variable speed drives, allowing for efficient control of AC and DC motors.
• Power Supplies: Essential components for rectifying AC to DC in power supply applications, improving energy efficiency and reliability.
• Heat Control: Utilized in industrial heating systems requiring precise control over temperature, such as in furnaces and ovens.
• Welding Applications: Employed in controlled rectification setups in welding processes, ensuring consistent performance and quality.
• Renewable Energy Systems: Used in solar inverters and other systems to manage energy conversion and storage.
