ABB+IMDSO14

Description

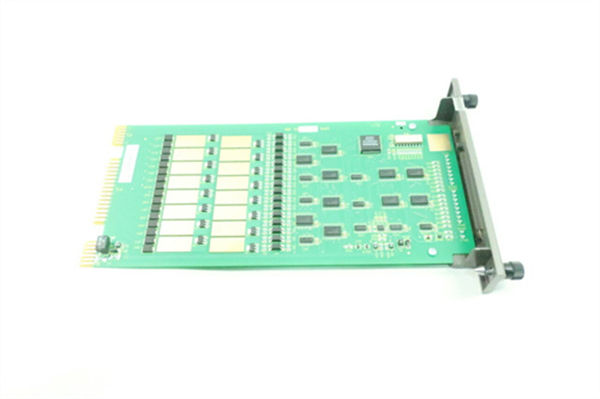

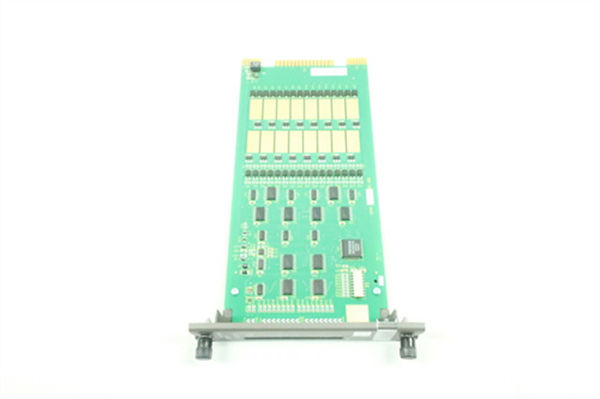

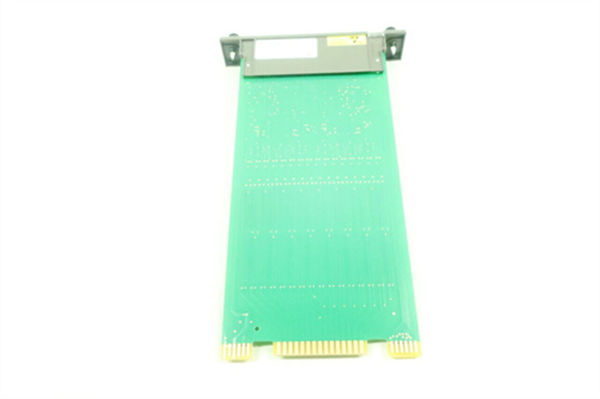

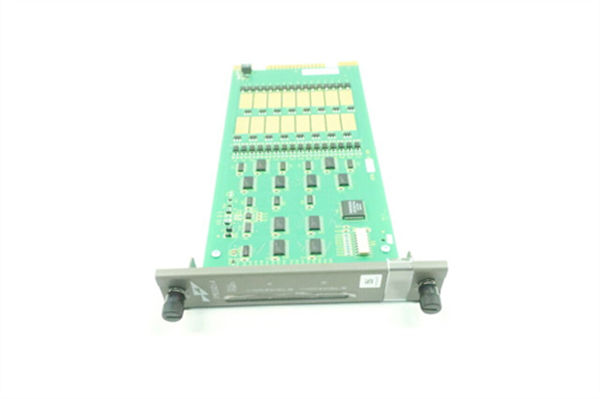

The ABB IMDSO14 module is a product typically used in industrial automation and control systems.

**Product Name:**

ABB IMDSO14 module

**Product Description:**

The ABB IMDSO14 module is a digital output module designed for use in industrial applications. It provides reliable control of digital outputs, facilitating integration into larger automation systems.

**Product Parameters:**

– **Channels:** 8 digital output channels
– **Output Type:** Relay outputs
– **Output Voltage:** 24V DC
– **Maximum Load Current:** 2A per channel
– **Isolation:** 500V AC isolation between output channels and system
– **Module Type:** Standard I/O module for ABB PLC systems
– **Operating Temperature:** -25°C to +55°C
– **Storage Temperature:** -40°C to +70°C
– **Humidity:** 5% to 95% RH, non-condensing

**Specifications:**

– **Communication:** Compatible with ABB PLCs via fieldbus communication (e.g., Profibus, Modbus)
– **Mounting:** DIN rail mountable
– **Dimensions:** Standard DIN dimensions, suitable for control panels
– **Certifications:** CE certified, UL recognized components

**Product Use:**

The ABB IMDSO14 module is used primarily for switching and controlling external devices in industrial automation settings. Typical applications include:

– Controlling solenoid valves
– Driving indicator lights
– Activating alarms or signals
– Switching relays for motor control
– General-purpose digital output control in manufacturing and process industries

This module is designed to offer robust performance, high reliability, and easy integration into ABB’s automation solutions, providing essential digital output functionality for diverse industrial applications.
