ABB+IMDSM04

Description

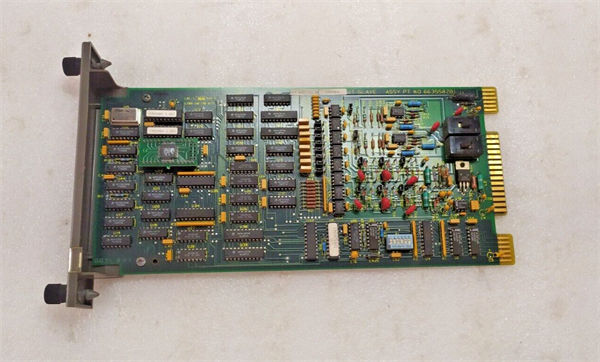

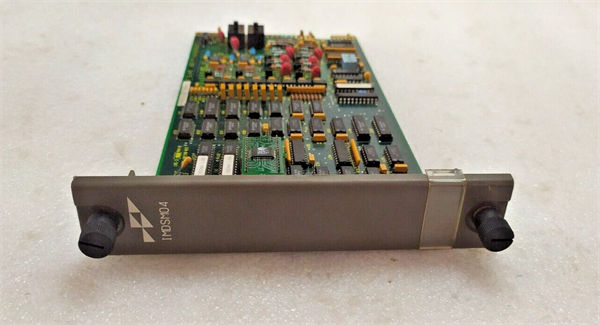

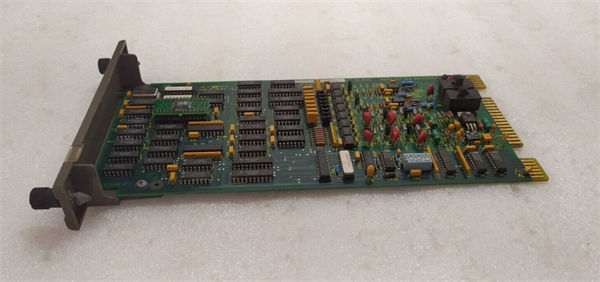

The ABB IMDSM04 module is part of ABB’s range of industrial products, typically used in various automation and control applications.

**Product Name:**

ABB IMDSM04 Module

**Product Description:**

The ABB IMDSM04 module is a compact and versatile industrial data communication module designed to facilitate integration and communication within automated systems. It is engineered to provide reliable data transmission and connectivity solutions in industrial environments.

**Product Parameters:**

– **Communication Interface:** RS232/RS485
– **Power Supply:** 24V DC
– **Operating Temperature:** -20°C to +60°C
– **Dimensions:** Compact size suitable for DIN rail mounting
– **Certifications:** CE, UL

**Specifications:**

– **Communication Protocols:** Modbus RTU, ASCII
– **Data Transmission Rate:** Up to 115.2 kbps
– **Housing:** Industrial-grade plastic or metal enclosure
– **LED Indicators:** Power, Communication status
– **Protection:** Over-voltage, ESD protection

**Product Use:**

The ABB IMDSM04 module is used primarily for:

– **Data Acquisition:** Facilitates the acquisition of data from industrial equipment and sensors.
– **Data Communication:** Enables communication between different components of an industrial automation system using standard communication protocols.
– **Integration:** Integrates with PLCs (Programmable Logic Controllers), SCADA systems, and other industrial control systems to ensure seamless data exchange and control.

This module is typically deployed in industrial settings where reliable and efficient data communication and integration are critical for operational efficiency and control.
