ABB+FM9925A-E

Description

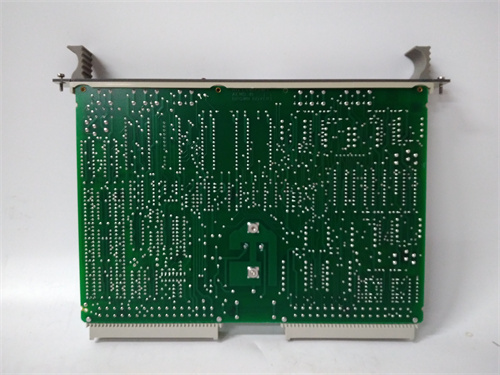

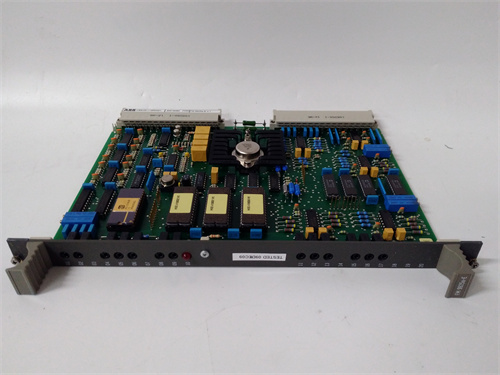

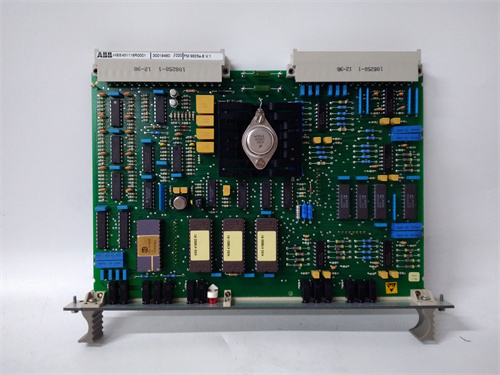

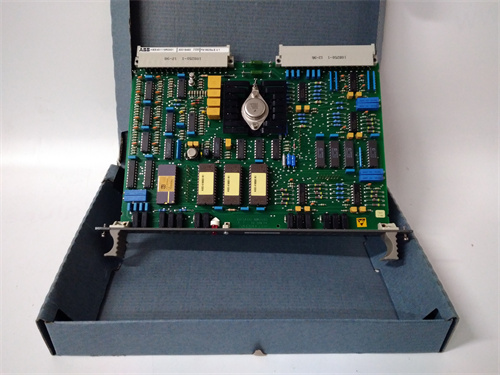

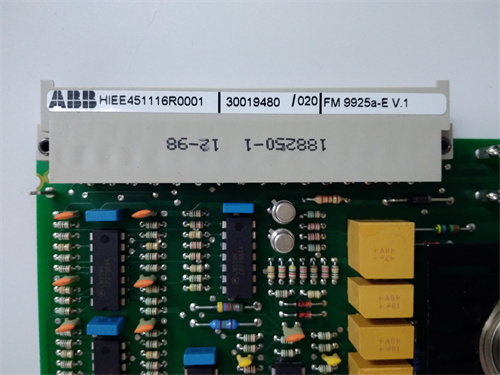

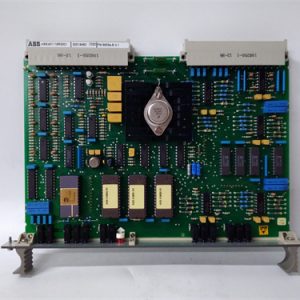

The ABB FM9925A E-Module is part of ABB’s family of process automation products. It is an I/O module designed for use in the ABB Distributed Control System (DCS), typically part of the 800xA control system architecture.

Product Name:

ABB FM9925A E-Module

Product Description:

The FM9925A E-Module is a high-performance, versatile I/O module designed for use in the ABB 800xA system. It supports both analog and digital input/output signals from field devices, enabling seamless integration into control and monitoring systems. This module is designed to offer precise and reliable data acquisition and control for process industries, such as power generation, oil and gas, chemicals, and more.

Key features of the FM9925A include:

• High-density I/O capabilities.
• Supports both digital and analog signals.
• Designed to operate in harsh industrial environments.
• Offers diagnostics for troubleshooting and performance monitoring.
• Typically used with ABB’s DCS for process automation and control.

Product Parameters / Specifications:

The specific parameters can vary slightly based on the configuration of the FM9925A, but generally include:

• Input/Output Types:
  • Analog Inputs: Can accept 4-20mA or 0-10V signals.
  • Analog Outputs: Provides 4-20mA or 0-10V outputs.
  • Digital Inputs/Outputs: Includes both dry contact and 24V signals.
• Communication Protocols:
  • Typically uses ABB’s proprietary communication bus for integration with the 800xA system.
  • May support additional standard protocols like Modbus or Profibus, depending on configuration.
• Power Supply:
  • The module operates on a 24V DC supply.
• Operating Temperature:
  • Typically operates in a temperature range of -10°C to +55°C, suitable for industrial environments.
• Mounting:
  • Rack-mounted within the ABB 800xA system or a similar industrial rack configuration.
• Environmental Protection:
  • Typically features protection against industrial dust and moisture (IP20 or higher).
• Compatibility:
  • Compatible with ABB’s 800xA DCS and other related automation platforms.
• Diagnostics:
  • Built-in diagnostic capabilities for signal integrity, communication status, and module health.
• Signal Conditioning:
  • Includes signal conditioning for analog signals (e.g., scaling, filtering).

Product Use:

The ABB FM9925A E-Module is used in a variety of industrial control applications. Its primary uses include:

• Process Automation and Control:
  • It helps to interface between the control system and field devices such as sensors, actuators, and other instruments.
  • Used in process industries such as chemical, petrochemical, power generation, and oil & gas, where accurate, real-time control of processes is essential.
• Data Acquisition:
  • The module is used to collect real-time data from field instruments (e.g., temperature, pressure, flow sensors) for monitoring, analysis, and reporting.
• Distributed Control Systems (DCS):
  • It is an integral part of the ABB 800xA DCS system, providing both local and remote I/O capabilities for large, distributed processes.
• Automation Systems:
  • Provides a flexible I/O solution for automation systems, where communication, control, and data integration are key requirements.
