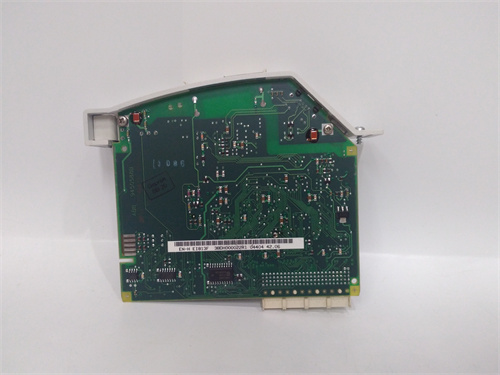

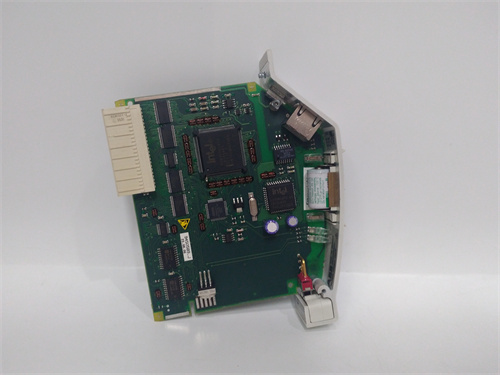

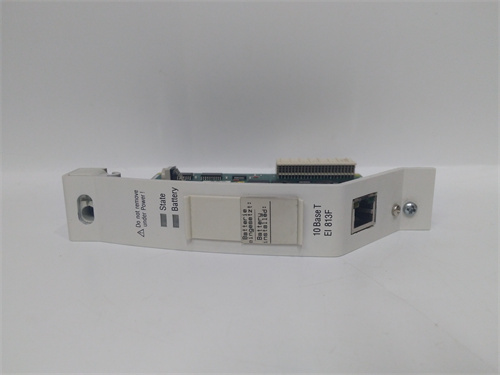

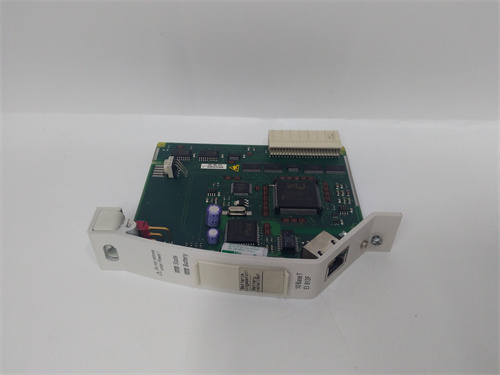

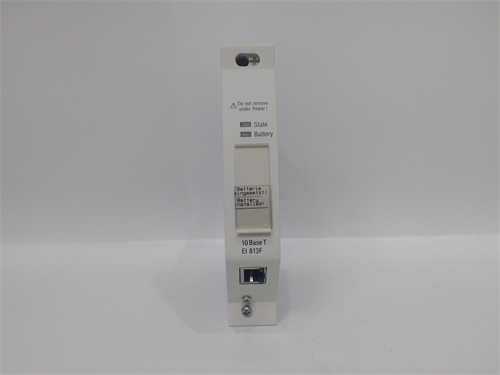

ABB+EI813F 3BDH000022R1

Description

The ABB EI813F 3BDH000022R1 module is a digital input module used for process control and automation. It is part of ABB’s extensive range of control and monitoring devices designed to provide reliable and efficient operation in industrial environments.

Product Name:

ABB EI813F 3BDH000022R1 Digital Input Module

Product Description:

The ABB EI813F 3BDH000022R1 module is a compact and versatile digital input module designed to interface with different types of sensors and digital signals in industrial control systems.

Product Parameters:

The module supports a wide range of digital input signals, including ON/OFF status, pulse counting, frequency measurement, and time stamping. It can handle both standard and non-standard input signals, making it suitable for diverse industrial applications.

Specifications:

– Input Channels: 8 channels
– Input Voltage Range: 24 V DC (nominal)
– Input Current: 3 mA to 9 mA
– Input Signal Types: Digital, Pulsed, Time-Stamped
– Communication Protocols: PROFIBUS DP, HART, Foundation Fieldbus

Product Use:

The ABB EI813F 3BDH000022R1 module is commonly used in industrial automation and control systems to monitor and interface with various digital input signals from field devices, such as sensors, switches, and transducers. It can be integrated into larger control systems to provide real-time monitoring and data acquisition for critical process control applications.

Overall, the ABB EI813F 3BDH000022R1 module is a reliable and flexible digital input module that meets the demanding requirements of modern industrial automation and control systems.
