ABB+DSDP170 DSDP150 DSDP140B

Description

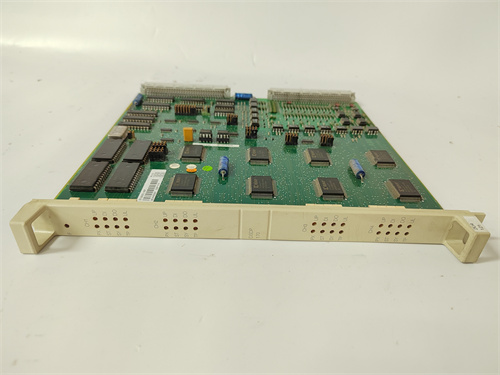

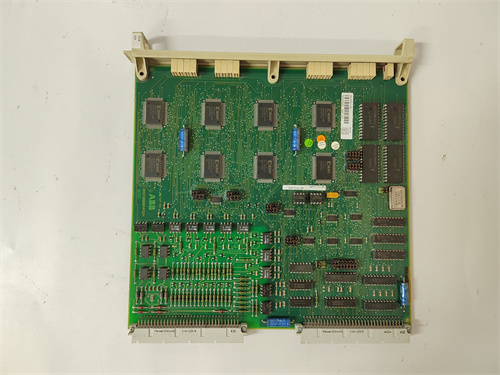

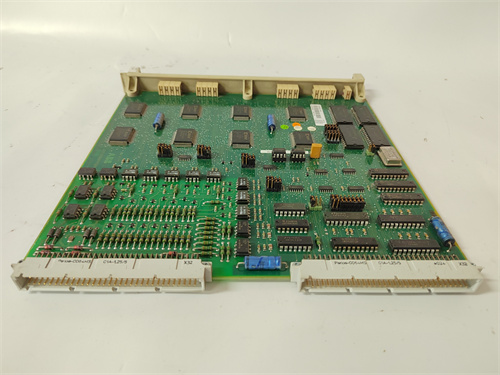

1. ABB DSDP170 Module

Product Name: ABB DSDP170

Product Description:
The DSDP170 is a digital signal processing module designed for use within ABB’s automation systems. This module typically supports digital input/output functions, allowing for the interfacing of various peripheral devices.

Product Parameters/Specifications:

• Number of digital inputs/outputs: Typically configurable (e.g., 16DI/16DO)
• Operating Voltage: Usually 24V DC
• Communication Protocol: Profinet, Modbus, or EtherCAT
• Features: Short-circuit protection, Isolation
• Temperature range: -20°C to +60°C

Product Use:
The DSDP170 is commonly employed in industrial automation for monitoring and controlling devices in a manufacturing or processing environment. It is used in applications like process control, machinery automation, and building management systems.

2. ABB DSDP150 Module

Product Name: ABB DSDP150

Product Description:
The DSDP150 is another digital processor module from ABB, designed to facilitate connections in control systems. It often includes additional capabilities such as analog inputs/outputs, enhancing its versatility.

Product Parameters/Specifications:

• Number of channels: E.g., 8AI/8AO
• Input Voltage Range: Varies by configuration (e.g., 0-10V, 4-20mA)
• Communication interfaces: Serial (RS232/RS485), Ethernet/IP, etc.
• Power Supply: 24V DC
• Features: High accuracy, fast response time, configurable settings

Product Use:
This module is utilized in applications where both digital and analog signals need to be processed. Common uses include environmental monitoring, HVAC controls, and complex control loops in production processes.

3. ABB DSDP140B Module

Product Name: ABB DSDP140B

Product Description:
The DSDP140B is a versatile module that typically focuses on either digital or hybrid signal processing, providing essential functionality in ABB’s control systems. It may offer various types of I/O capabilities.

Product Parameters/Specifications:

• Inputs/Outputs: Dependent on configuration (e.g., mixed DI/DO)
• Isolation voltage: Typically 500V
• Mounting Type: DIN rail or panel mountable
• Design: Compact, suitable for modular systems
• Operating Temperature: Typical -20°C to +60°C

Product Use:
This module is suitable for integration in control panels, machinery, and production lines, offering a reliable way to connect multiple I/O points. It can often be found in manufacturing, automation systems, and utility monitoring.
