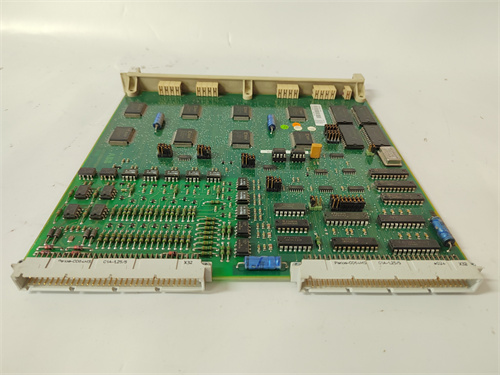

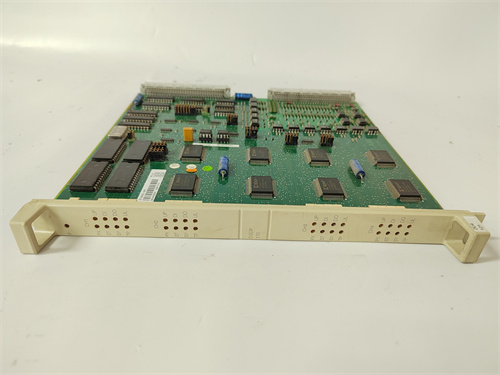

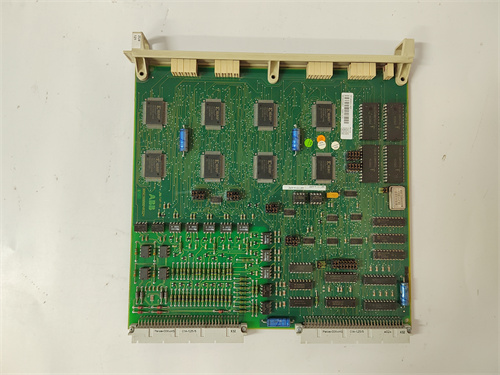

ABB+DSDP170 57160001-ADF

Description

The ABB DSDP170 57160001-ADF module is a part of the ABB System 800xA Distributed Control System (DCS). This module serves as an analog input/output module for processing signals within the control system.

Product Name:

ABB DSDP170 57160001-ADF module

Product Description:

The ABB DSDP170 57160001-ADF module is a digital signal processing module designed for use in industrial control applications. It provides analog input/output capabilities for measuring and controlling various process variables.

Product Parameters:

– Input Channels: 8 analog input channels
– Output Channels: 8 analog output channels
– Voltage Range: 0-10V
– Current Range: 4-20mA
– Resolution: 16-bit
– Update Rate: Configurable
– Communication Protocol: Profibus DP

Specifications:

– Power Supply: 24V DC
– Operating Temperature: -20°C to 60°C
– Storage Temperature: -40°C to 85°C
– Dimensions: Compact DIN rail mountable form factor
– Protection Class: IP20
– Certifications: CE, ATEX

Product Use:

The ABB DSDP170 57160001-ADF module is used in industrial automation systems for monitoring and controlling analog signals such as temperature, pressure, flow rate, and level. It interfaces with sensors and actuators to enable precise control of industrial processes.
