ABB+DSAO110

Description

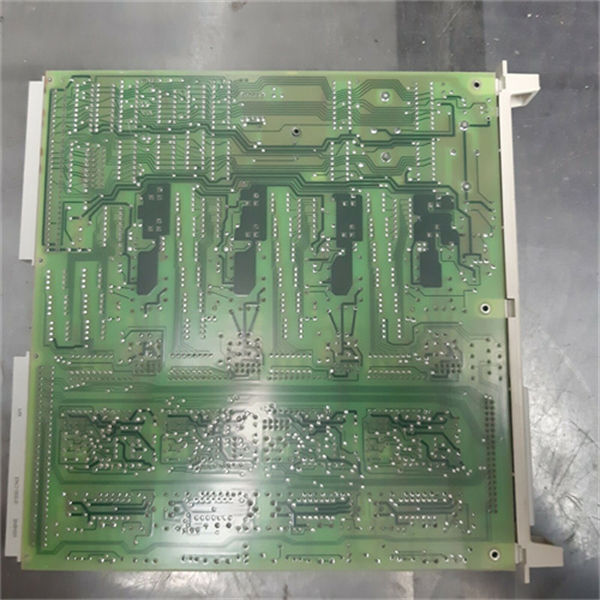

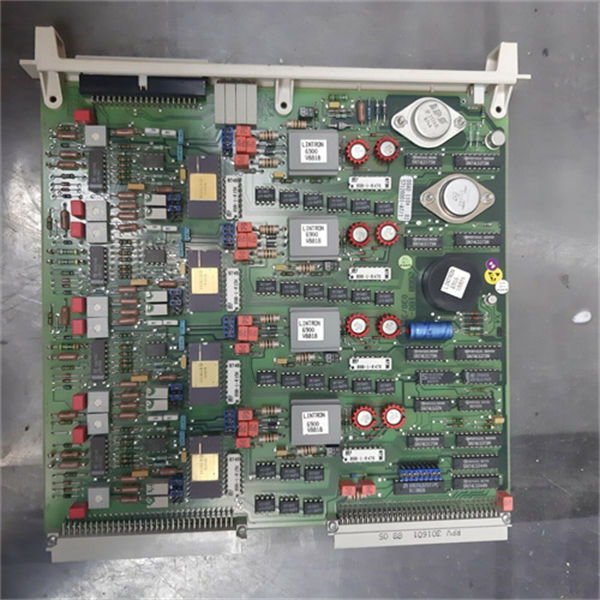

The ABB DSAO110 module is a part of ABB’s offering for process automation and control systems.

**Product Name:**

ABB DSAO110

**Product Description:**

The ABB DSAO110 is a digital output module designed for use in industrial automation applications. It is typically used in control systems to interface with external devices, providing reliable digital outputs.

**Product Parameters:**

– **Channels:** 16 digital output channels
– **Output Type:** Digital (TTL or equivalent)
– **Voltage Rating:** Typically 24V DC
– **Current Rating:** Varies based on specific model and configuration

**Specifications:**

– **Communication Protocol:** Typically compatible with ABB’s proprietary communication protocols used in their control systems.
– **Operating Temperature Range:** Typically -25°C to +60°C (-13°F to +140°F)
– **Mounting:** DIN rail mounting for easy installation in control panels.
– **Dimensions:** Standard DIN module dimensions, specific dimensions can vary.

**Product Use:**

The ABB DSAO110 module is used primarily for the following purposes:

– **Output Control:** It provides digital outputs to control external devices such as valves, actuators, motors, and other digital devices in industrial automation systems.
– **Signal Conditioning:** Converts control signals from the control system into digital outputs suitable for the connected devices.
– **Reliability:** Ensures reliable operation in demanding industrial environments, offering high performance and durability.

This module is part of ABB’s broader portfolio aimed at enhancing automation capabilities in various industrial sectors, ensuring efficient and reliable control system operations.
