ABB+DO810 3BSE008510R1

Description

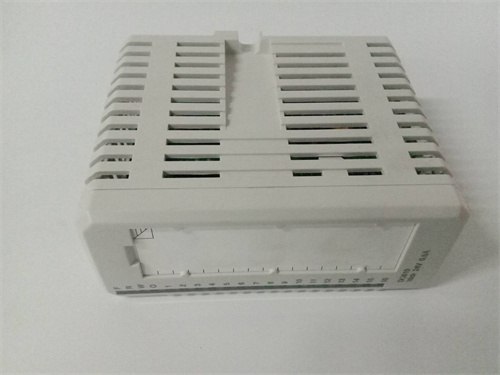

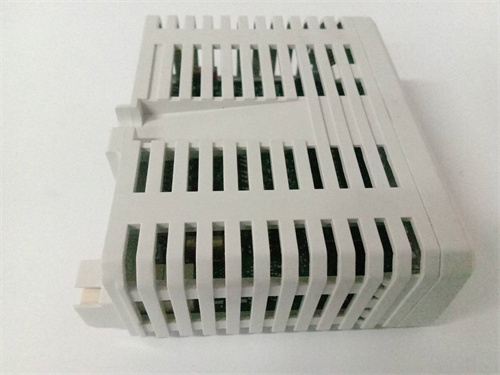

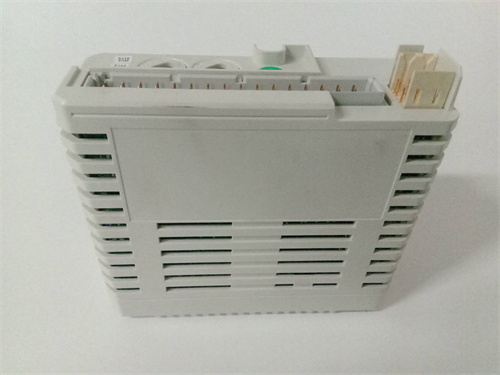

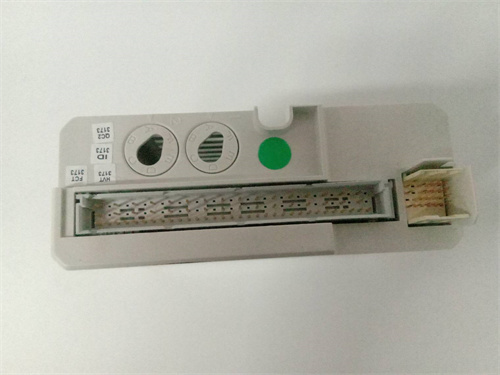

The ABB DO810 (3BSE008510R1) module is part of ABB’s AC 800M series of programmable logic controllers (PLCs).

**Product Name:**

– ABB DO810 Digital Output Module

**Product Description:**

– The ABB DO810 is a digital output module designed to interface with the AC 800M controller. It provides high-density digital outputs for controlling various external devices and processes in industrial automation applications.

**Product Parameters and Specifications:**

– **Module Type:** Digital Output Module
– **Product Code:** 3BSE008510R1
– **Channels:** 32 digital outputs
– **Output Voltage:** 24 V DC
– **Output Current:** 0.5 A per channel, 8 A max per module
– **Isolation:** Channel isolation
– **Backplane Current Consumption:** 0.15 A at 5 V DC
– **Termination:** Removable terminal blocks
– **Operating Temperature:** -25°C to 60°C
– **Storage Temperature:** -40°C to 85°C
– **Dimensions:** Standard I/O module size for AC 800M series

**Product Use:**

– The ABB DO810 module is used in industrial automation systems where there is a need for reliable digital output control. It is typically employed in manufacturing, process control, and other industrial environments where PLCs are utilized for automation and control tasks. The module allows the PLC system to interface with external devices such as actuators, solenoids, motor starters, and other equipment that require digital switching.

This module is part of ABB’s broader range of products aimed at providing flexible and robust solutions for digital I/O control within industrial automation setups.
