ABB+DO620

Description

Product Name:

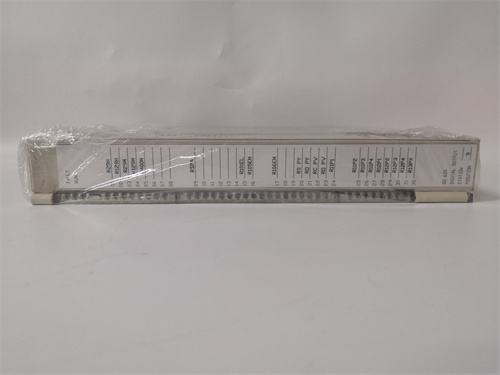

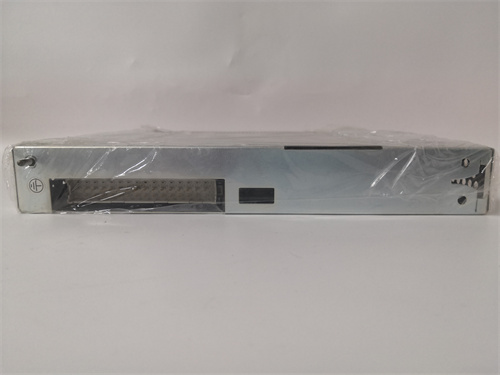

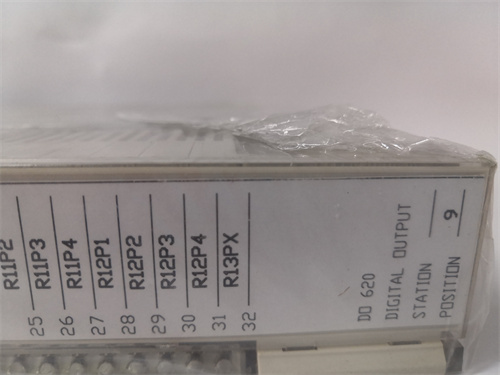

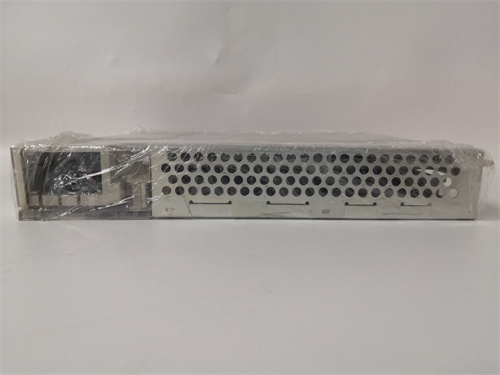

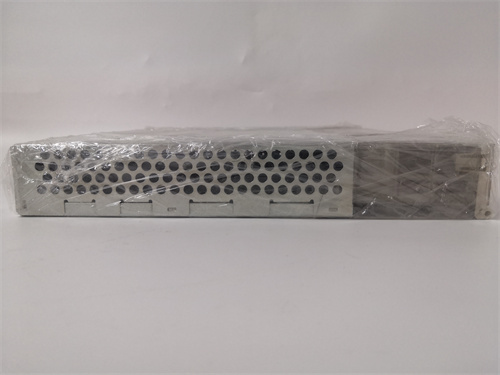

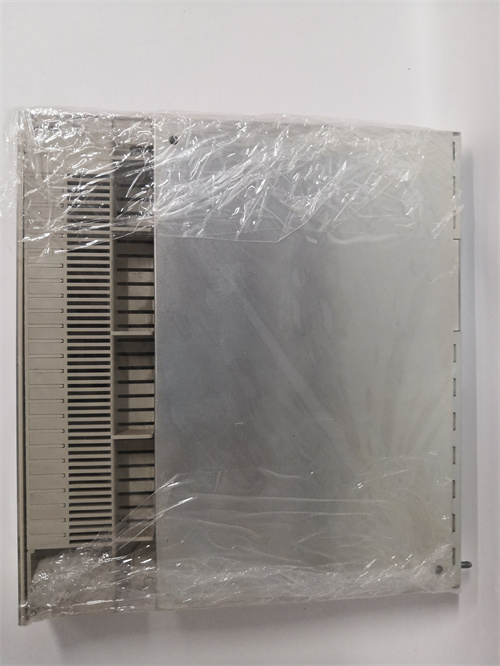

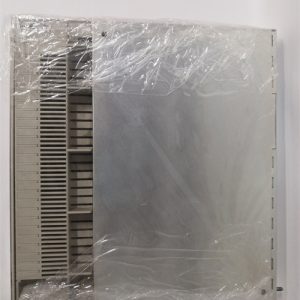

ABB AC500-e DO620DCS Combined analog and digital output module

Product parameters:

Number of channels: Specific details about the configuration of channels (the number of analog and digital channels) are not readily available from public sources and vary according to specific model variants. Common options for ABB to combine analog and digital output modules include 2 analog + 4 digital or 4 analog + 2 digital configurations.
Analog output types: The module may support various output types, such as:
Voltage output (e.g., 0-10vdc, ±10vdc)
Current output (e.g. 4-20ma)
Digital Output type: The module supports either source or sinking digital output depending on the model.
Analog output resolution: usually 12 or 16 bits
Output current/voltage limits: Specific limits on the maximum current or voltage a module can output, and current sink/source capacity will depend on the model variant.

Product Specifications:

Isolation: Current isolation can be provided between the input and output circuits to reduce noise and improve signal integrity.
Operating temperature range: Usually -25°C to +70°C(-13°F to +158°F)
Power Supply: DC power supply that requires a specific voltage (specific models may vary).
