Description

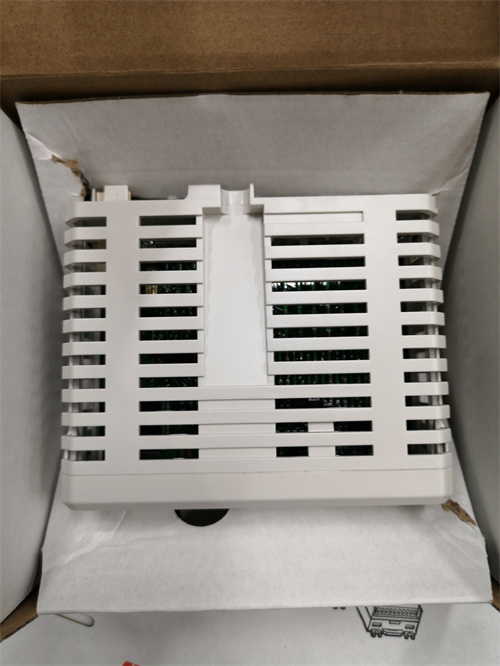

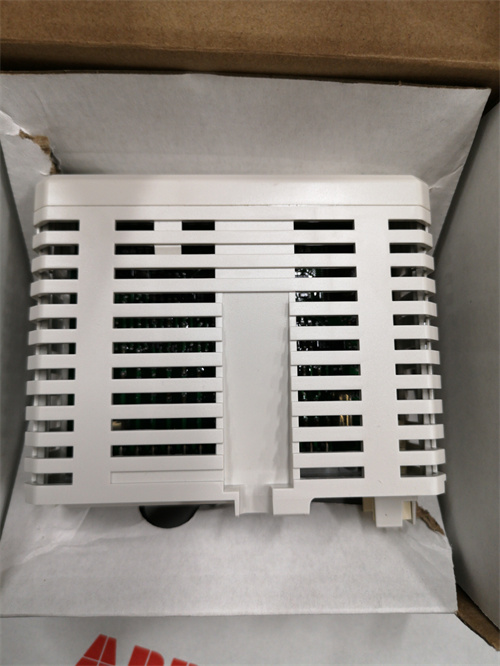

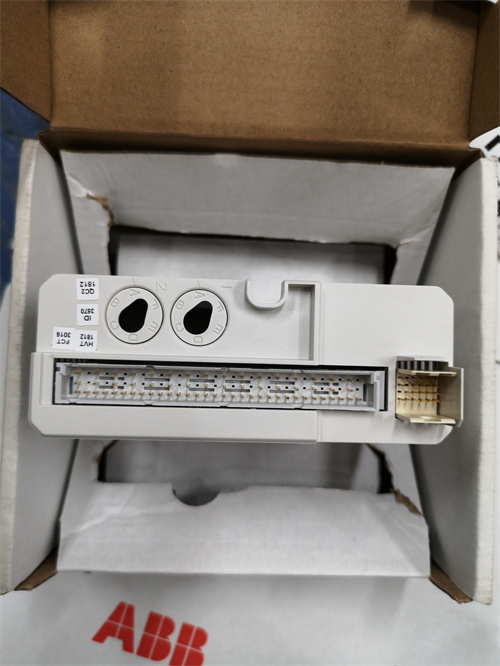

Product Name: ABB DI810, DI814, DI840

Product Description

The ABB DI810, DI814, and DI840 are digital input modules designed for use in ABB’s automation and control systems. These modules are essential for interfacing with digital signals from various field devices, ensuring reliable and accurate data communication in automated systems. The DI810 provides 16 digital inputs, the DI814 offers 16 digital inputs with additional features such as status indication, and the DI840 serves high-density applications with 32 digital inputs. Each module is built to meet the rigorous demands of industrial environments, providing flexibility and scalability for different automation projects.

Product Specifications

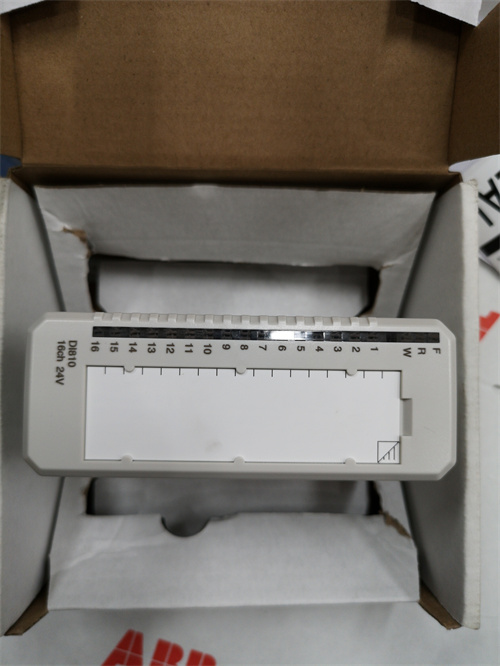

• ABB DI810
  • Number of Inputs: 16
  • Input Voltage Range: 24 V DC
  • Isolation: 1500 V DC
  • Dimensions: Compact design for space-saving installations
• ABB DI814
  • Number of Inputs: 16
  • Input Voltage: 24 V DC
  • Additional Features: LED status indicators for each input
  • Highly reliable performance with robust build quality
• ABB DI840
  • Number of Inputs: 32
  • Input Voltage Range: 24 V DC
  • Isolation: 1500 V DC
  • Designed for high-density signal applications in complex automation systems

Advantages and Features

The ABB DI810, DI814, and DI840 offer significant advantages for automation applications. Their primary features include:

• Superior Noise Immunity: These modules are designed to minimize the influence of electrical noise, enhancing signal integrity.
• Modular Design: Allows for easy integration into existing systems, facilitating quick upgrades and expansions.
• Versatile Application: Suitable for various industrial applications, including manufacturing processes, building automation, and renewable energy systems.
• Reliability: High-quality construction ensures long-term operation in challenging environments.

Application Areas

The ABB DI810, DI814, and DI840 modules are applicable in numerous industrial sectors:

• Manufacturing Automation
• Process Control
• Building Management Systems
• Renewable Energy Applications (e.g., wind and solar)
• Water and Wastewater Treatment Facilities

Application Case Studies

In a large manufacturing facility, the ABB DI814 module was employed to manage the digital inputs from various machines, enhancing data acquisition and improving operational efficiency through real-time monitoring. Similarly, the ABB DI840 was utilized in a solar power plant to handle numerous digital inputs from inverters, ensuring reliable operation and maintenance of the solar energy system.

Competitive Comparison

When compared to similar digital input modules from competitors, the ABB DI810, DI814, and DI840 stand out due to their robust build quality, greater input density, and superior noise immunity. Competitors’ offerings may lack the same level of integration flexibility and long-term reliability that ABB products provide, making ABB the preferred choice for critical projects.

Selection Recommendations

When selecting between the ABB DI810, DI814, and DI840 modules, consider the following:

• Evaluate the number of inputs required based on your application: opt for the DI810 or DI814 for smaller setups, and the DI840 for high-density input needs.
• Determine if LED status indicators are essential for your application; choose the DI814 if real-time status monitoring is needed.
• Ensure compatibility with your existing ABB systems to maximize the efficiency of your automation solution.

Precautions

• Ensure proper installation to avoid damage from electrical surges; follow the manufacturer’s guidelines for voltage limits and isolation.
• Regularly inspect modules for wear and tear, especially in high-vibration or extreme temperature environments.
• Incorporate proper shielding and grounding practices to further enhance signal integrity and system reliability.

We are your trusted partner, providing products like the ABB DI810, DI814, and DI840, along with sales and technical support for other automation spare parts. Enjoy special discount prices by contacting us; we are dedicated to serving you.
