ABB+DI810 3BSE008508R1

Description

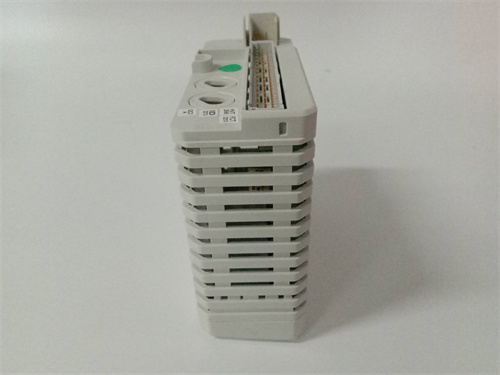

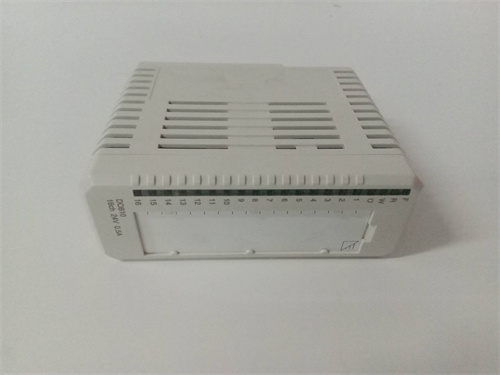

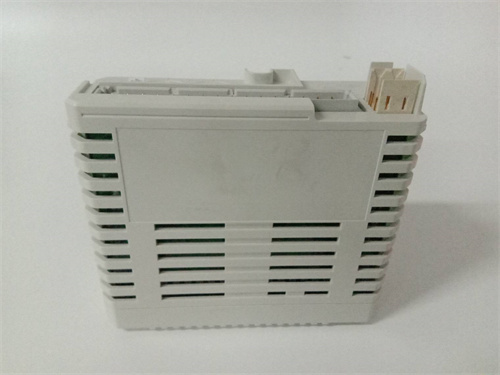

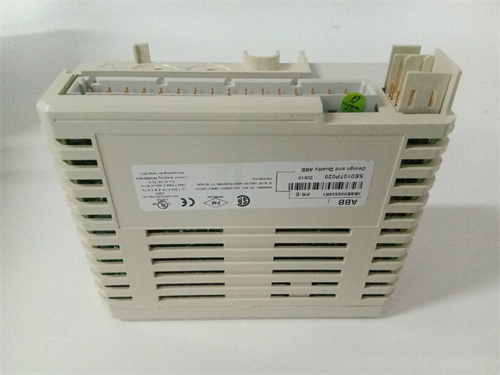

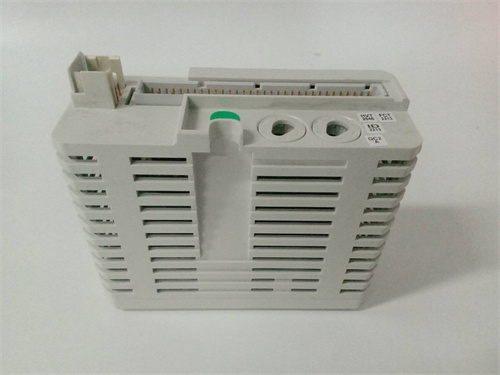

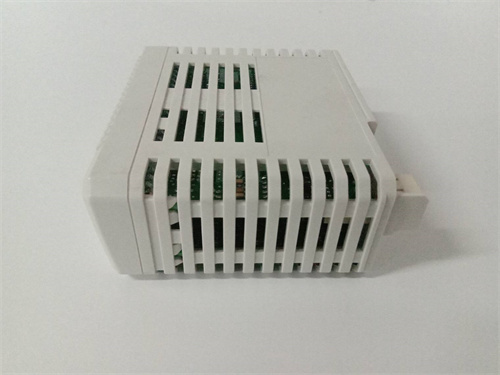

The ABB DI810 3BSE008508R1 module is a digital input module manufactured by ABB.

Product Name:

ABB DI810 3BSE008508R1 Digital Input Module

Product Description:

The DI810 is a digital input module designed to interface with a wide range of digital signals in a process control system. It has high density, good channel-to-channel isolation and fast cycle times.

Product Parameters:

– Number of Channels: 8 digital input channels
– Input Voltage: 24 VDC
– Input Signal Type: Field Potential Free, Dry Contacts
– Input Resistance: >10 kOhm
– Input Filter: Configurable
– Isolation: 500 VAC between channels
– Termination: Screw terminals

Specifications:

– Supply Voltage: 24 VDC
– Power Consumption: 2 W
– Operating Temperature: -40 to 70 degrees Celsius
– Storage Temperature: -40 to 85 degrees Celsius
– Relative Humidity: 5% to 95%
– Dimensions (HxWxD): 115 x 17.5 x 90 mm
– Weight: 150 g

Product Use:

The ABB DI810 3BSE008508R1 module is commonly used in industrial automation applications where digital signals need to be monitored and processed. It is typically integrated into a larger control system to interface with various sensors, switches, and other digital devices.
