Description

The ABB DDC779CE102 module is part of ABB’s broad range of automation and control products, typically used in industrial applications.

Product Name:

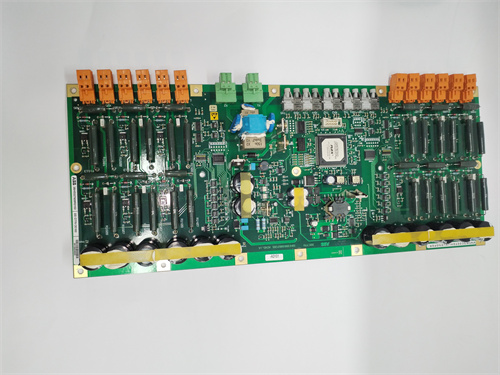

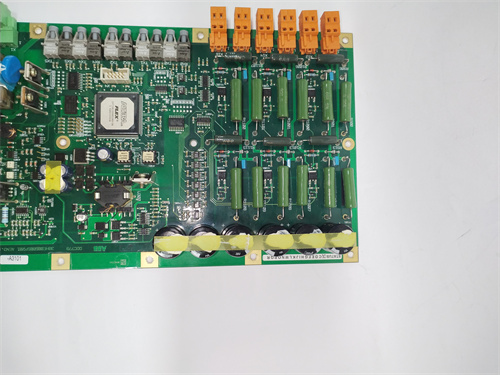

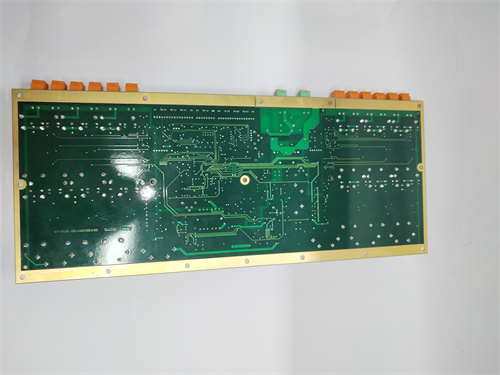

ABB DDC779CE102 Module

Product Description:

The ABB DDC779CE102 is a Digital Output Module (or DDC module), typically used within ABB’s PLC (Programmable Logic Controller) systems or Automation Control Systems for controlling external devices and systems. The module is designed to interface with field devices and provide discrete outputs such as relays, valves, or actuators.

This module is generally part of a distributed control system and can be integrated with various ABB controllers for automation, process control, or factory floor applications.

Product Specifications:

• Module Type: Digital Output Module
• Input Type: Digital, Output (typically controlling ON/OFF states)
• Nominal Voltage: Typically 24 V DC or 110-240 V AC (depending on specific configuration)
• Number of Outputs: Usually 8-16 digital outputs (depending on model)
• Current per Output: Varies based on configuration (e.g., 0.5A to 1A per channel)
• Communication Protocol: Can integrate into ABB’s proprietary bus systems like Control Network or Fieldbus systems (e.g., Modbus, PROFIBUS, etc.)
• Isolation: Galvanic isolation to protect against high-voltage spikes or electrical surges
• Mounting Type: DIN Rail mounting (standard in industrial environments)
• Temperature Range: Typically from 0°C to 60°C (varies by model)
• Dimensions: Specific to model but generally compact for ease of integration in control panels
• Power Consumption: Varies depending on the module’s output load

Product Use:

• Automation Systems: The DDC779CE102 module is used to send digital signals (such as ON/OFF or OPEN/CLOSE) to field devices. This is crucial in industries like manufacturing, process control, and building automation.
• Industrial Control: Often used in PLC or SCADA (Supervisory Control and Data Acquisition) systems to control valves, motors, solenoids, or relays in an industrial automation environment.
• Building Management: Commonly deployed in building management systems (BMS) to control HVAC equipment, lighting systems, or fire safety equipment.
• Data Acquisition: Integrated into larger systems for acquiring and managing data from field devices, sensors, and other control equipment.

Key Applications:

1. Manufacturing: For controlling conveyors, robotic arms, or assembly lines.
2. Process Control: For controlling industrial processes, such as pressure, temperature, and flow regulation in chemical plants.
3. HVAC Control: Used in heating, ventilation, and air-conditioning (HVAC) systems to manage valves, dampers, or pumps.
4. Building Automation: For managing lighting, security systems, or fire alarm systems in commercial buildings.
