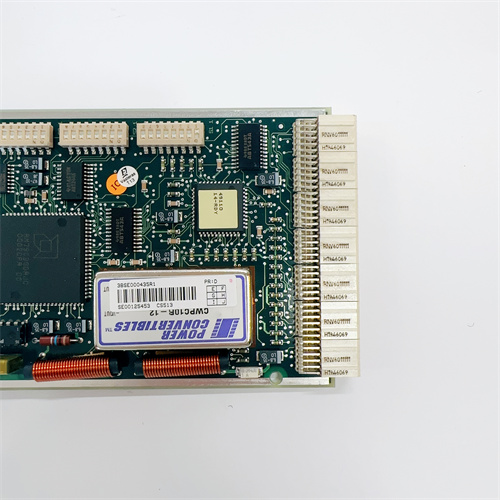

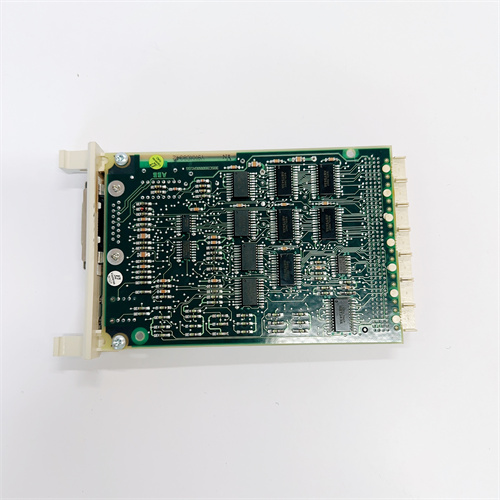

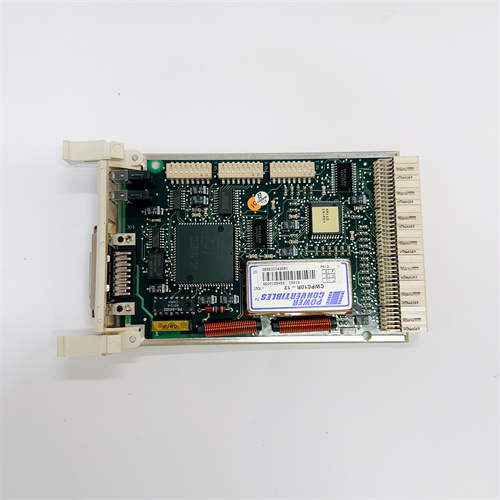

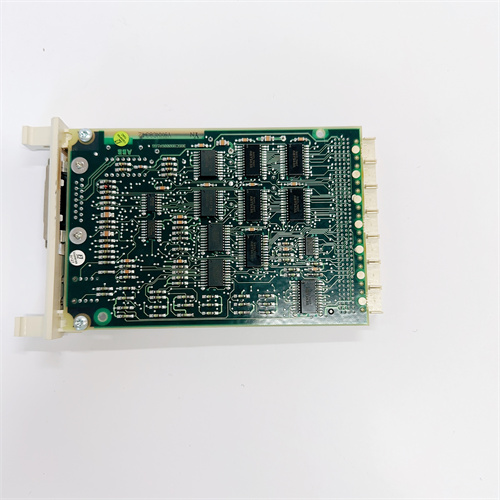

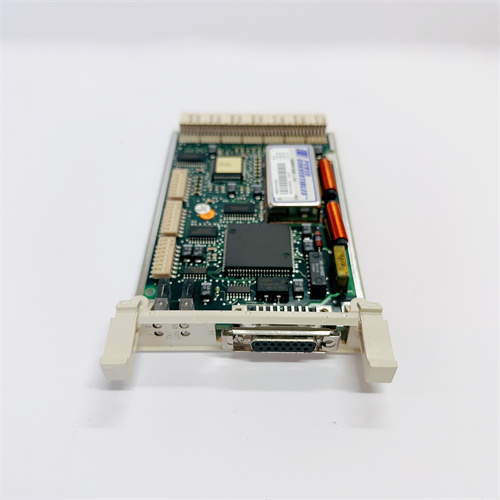

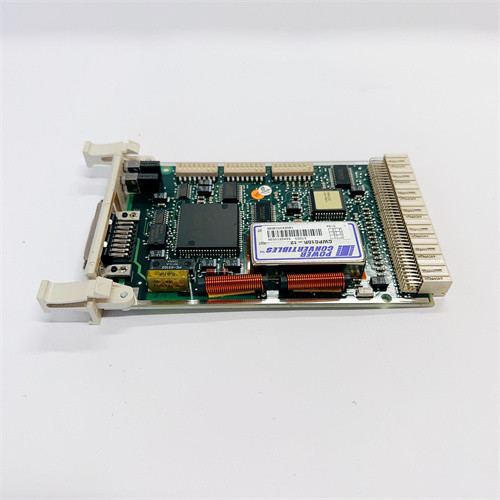

ABB+CS513 3BSE000435R1

Description

The module is called the Mark VIe Control System 16/32 channel discrete input module.
It is designed to provide digital input capability for the Mark VIe system.
The module is used to interface with various field devices and signals to provide status and feedback to the control system.

Product Name:

ABB+CS513 3BSE000435R1 module

Product Description:

This module is a digital input module designed for the Mark VIe control system. It offers discrete input capability of 16 or 32 channels, allowing connections to various sensors, switches, and other digital input devices.

Product parameters:

– Input channels :16 or 32
– Input voltage range :0 to 125v DC
– Input current range :4-20mA
– Operating temperature range :-40 ° C to 70 ° C
– Module type: Enter a number
– Compatibility :Mark VIe control system

Specifications:

– High-density digital input module
– Input channels can be configured
– Status indicator and diagnostic indicator
– Supports hot swap, facilitating installation and maintenance
– Robust design for industrial environments
– Built-in diagnostics for troubleshooting

Product use:

Modules are used to monitor and interface with digital input signals from various devices such as switches, sensors, limit switches, and other digital input sources. It provides vital feedback and status information to the Mark VIe control system, allowing for precise monitoring and control of industrial processes and equipment.
