Description

Product Name:

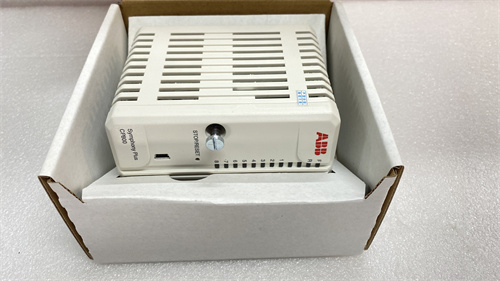

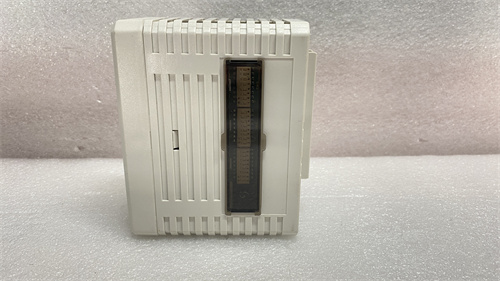

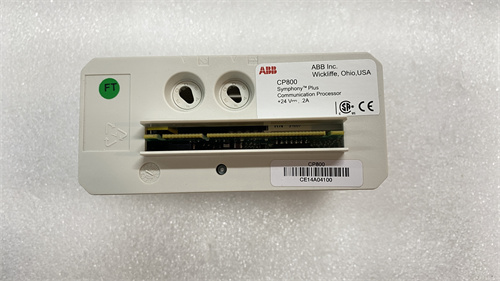

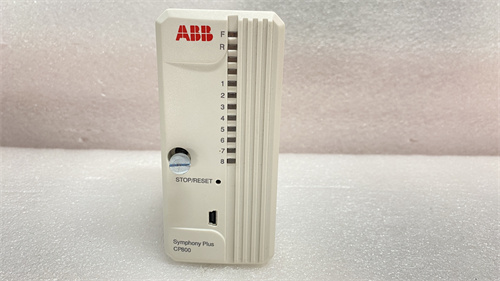

• ABB CP800 Communication Processor

Product Description:

The ABB CP800 series of communication processors are designed for integration with ABB’s industrial automation systems. These modules enable communication between controllers, devices, fieldbuses, and higher-level control systems. The CP800 module is used for improving data exchange, communication, and control in automation applications, supporting various industrial communication protocols like Ethernet, Modbus, Profibus, and others.

Product Parameters and Specifications:

The exact specifications can vary depending on the model and configuration, but here are some general features typically associated with the CP800 series:

• Communication Protocols Supported:
  • Ethernet
  • Profibus
  • Modbus (RTU, TCP)
  • CANopen
  • OPC (Open Platform Communications)
  • DeviceNet
  • Others (depending on specific module variant)
• Processing Power:
  • The CP800 typically features a microprocessor with sufficient computing capability to manage high-speed data exchange between control devices.
• Ports and Interfaces:
  • Multiple communication ports (Ethernet, serial ports, etc.) depending on the specific module.
  • Can include both optical and electrical interfaces.
• Operating Voltage:
  • Commonly operates in the range of 24V DC (can vary).
• Memory:
  • Onboard memory for configuration and data buffering.
• Software Support:
  • Configuration and programming typically done through ABB’s proprietary software tools like Automation Builder, Control Builder Plus, or System 800xA.
• Environmental Specifications:
  • Operating Temperature: Typically between -20°C to 60°C.
  • Storage Temperature: -40°C to 85°C.
  • Humidity: Designed to withstand industrial environments with typical operating humidity levels of 5% to 95%.

Product Use:

The ABB CP800 module is used in various industrial automation and control environments, including:

1. Industrial Automation Systems:
   • Connecting different control systems and devices within a plant or factory.
   • Enables communication between PLCs, SCADA systems, sensors, and other automated equipment.
2. Data Transfer and Protocol Conversion:
   • Acts as a bridge to enable communication between different protocols and systems, such as between a Modbus system and a Profibus network.
3. Real-time Monitoring and Control:
   • Allows operators to monitor, control, and optimize processes in real time by facilitating communication between different layers of an automation system.
4. Remote Access and Diagnostics:
   • Used for remote diagnostics, monitoring, and troubleshooting of industrial equipment and systems.
5. Flexible Integration:
   • The CP800 module is ideal for complex automation systems where integration of different protocols or equipment from different manufacturers is required.
