ABB+CI867K01 3BSE043660R1

Description

The ABB CI867K01 is a communication interface module designed for use in the ABB control systems, particularly in the 800xA and Freelance systems.

Product Name

ABB CI867K01 Communication Interface Module

Product Description

The CI867K01 module facilitates communication between the control system and field devices or other external systems. It supports various communication protocols, enabling integration with different types of devices, which is essential in modern industrial automation systems.

Product Parameters and Specifications

1. General Specifications:
   • Type: Communication interface module
   • Product Series: 800xA / Freelance
   • Part Number: 3BSE043660R1
   • Environmental Conditions:
     • Operating Temperature: Typically -20°C to +60°C
     • Storage Temperature: Typically -40°C to +85°C
     • Humidity: 5% to 95% non-condensing
2. Electrical Specifications:
   • Supply Voltage: Typically 24 V DC
   • Power Consumption: Varies by application; generally low power usage
3. Communication Protocols Supported:
   • Supports protocols such as Modbus TCP, Profibus, Ethernet/IP, and other industrial communication standards.
4. Data Handling:
   • Depending on configuration, interfaces with multiple peripheral devices and supports various data formats.
5. Physical Attributes:
   • Dimensions: Compact design for easy integration into various enclosures.
   • Mounting: DIN rail mountable for ease of installation.
6. Status Indicators:

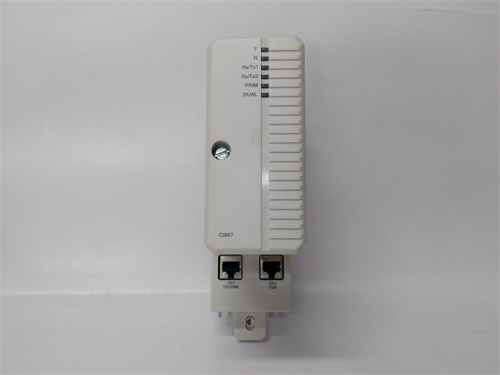

   • LED indicators for status monitoring of power, communication, and operational status.

Product Use

The CI867K01 module is primarily used in industrial applications for:

• Integration of Field Devices: Facilitating communication between sensors, actuators, and controllers.
• Data Acquisition: Enabling data collection from various sources for monitoring and control applications.
• System Communication: Allows for integration between different control systems and devices, enhancing system interoperability.
• Remote Monitoring and Control: Provides a communication link for remote access to monitor and control industrial processes via software applications.
