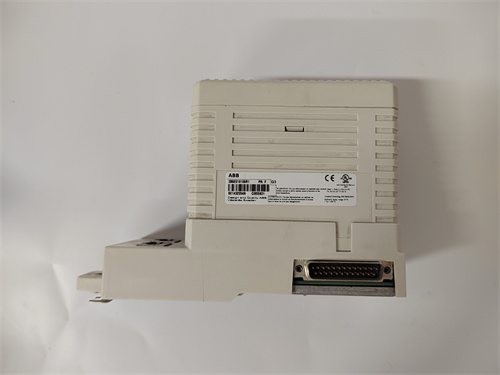

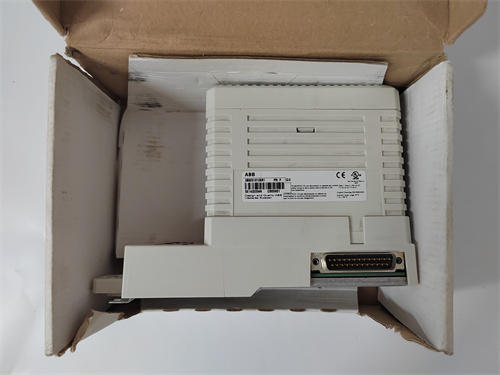

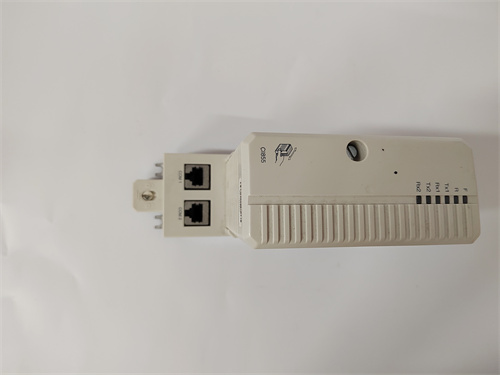

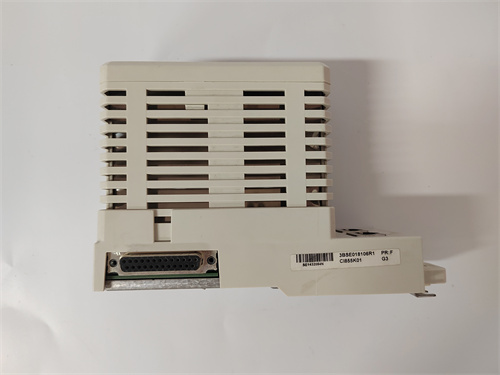

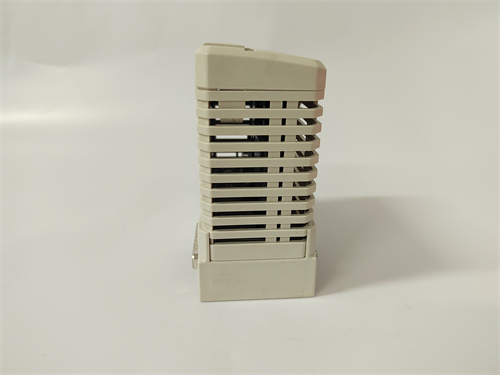

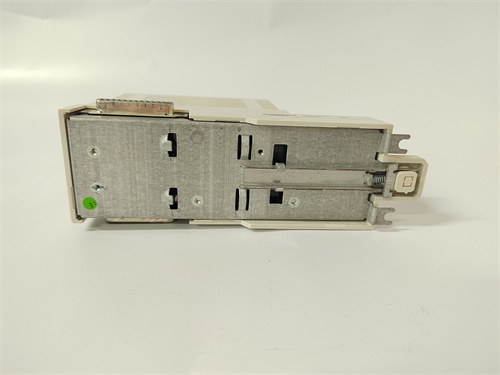

ABB+CI855K01 3BSE018106R1

Description

The ABB CI855K01 3BSE018106R1 is a communication interface module used in ABB’s Distributed Control System (DCS) platforms, specifically in the 800xA and S+ Control systems. It facilitates communication between the ABB DCS and other industrial control systems, PLCs, or field devices, enhancing system integration and data exchange.

Product Name:

ABB CI855K01 3BSE018106R1 Communication Interface Module

Product Description:

The CI855K01 is a communication interface module designed to provide seamless communication between ABB’s DCS systems and other automation devices or control systems. It is primarily used in applications requiring integration with different protocols, such as Modbus, Profibus, or other industrial networks. The module is part of the ABB 800xA and S+ Control series and can be installed in a rack-based system or other ABB automation hardware platforms.

Product Parameters and Specifications:

• Model: CI855K01
• Part Number: 3BSE018106R1
• Interface Protocols Supported:
  • Modbus (RTU, ASCII)
  • Profibus DP (Decentralized Peripherals)
  • Other supported communication protocols depending on the application
• Bus Interface:
  • Supports fieldbus communication and integration with other devices in the network
• Mounting: Typically mounted on the I/O rack or on a communication bus, part of the ABB system’s modular structure.
• Power Supply: Requires a dedicated power supply as per ABB’s system requirements for the specific hardware setup.
• Operating Temperature Range: Typically, between -20°C and +60°C (depending on installation and environmental conditions).
• Dimensions: Standard 800xA series module size; consult ABB documentation for specific measurements.
• Input/Output Capacity: Supports communication with multiple field devices (e.g., sensors, actuators) or other control systems, but the specific number of devices varies based on the communication protocol and network configuration.
• Data Rate: Varies depending on the protocol used (e.g., Modbus RTU can support baud rates from 9600 bps to 115200 bps).

Product Use:

The CI855K01 module is used for:

• System Integration: Facilitates the communication and data exchange between ABB’s DCS (Distributed Control System) and other industrial control systems like PLCs, SCADA systems, or field devices.
• Data Communication: Used in applications where communication with other fieldbus networks (e.g., Modbus, Profibus) is required for data monitoring, control, and automation.
• Process Control: It is used in process industries such as oil & gas, power generation, chemicals, and manufacturing where complex control systems need to communicate seamlessly for process optimization, monitoring, and control.
• Remote Access and Diagnostics: Often used in remote monitoring setups, providing diagnostic capabilities and real-time data exchange for predictive maintenance and troubleshooting.
